DONGGUAN YUYANG INSTRUMENT CO.,LTD
China Good Quality Manufacturer of Testing Equipment
 |
| Place of Origin: | CHINA |
| Brand Name: | YUYANG |
| Certification: | ASTM D1052, BS5131 : 2.1 ASTM-D1052,ISO-5423,4643,HB-T2411 GB 20265-2006 |
| Model Number: | YYX-019 |
| Packaging Details: | wooden case |
|---|---|
| Delivery Time: | 7 work days |
| Supply Ability: | 300 Piece/Pieces per Month |
| Bending Angle: | 90°max. | Bending Speed: | 100 ± 3 Cpm (adjustable) |
|---|---|---|---|
| Specimen Size: | (L)6”x(W)1”(D), Sole 0.25”, Rubber 1/2”-1/8, Or Whole Sole | Clamp: | 6 Group 12pcs, Can Be Test 6 Sole In The Same Time. |
| Counter: | LCD 0～999,999 | Motor: | Speed Regulating Motor From Taiwan |
| Dimension: | 800×420×450mm(L×W×H) | Weight: | 60kg |
| Bending Shaft Diameter: | 3/8" | Standard: | ASTM D1052, BS5131 : 2.1 ASTM-D1052,ISO-5423,4643,HB-T2411 GB 20265-2006 |
| High Light: | fatigue tester machine,perspiration tester |
||

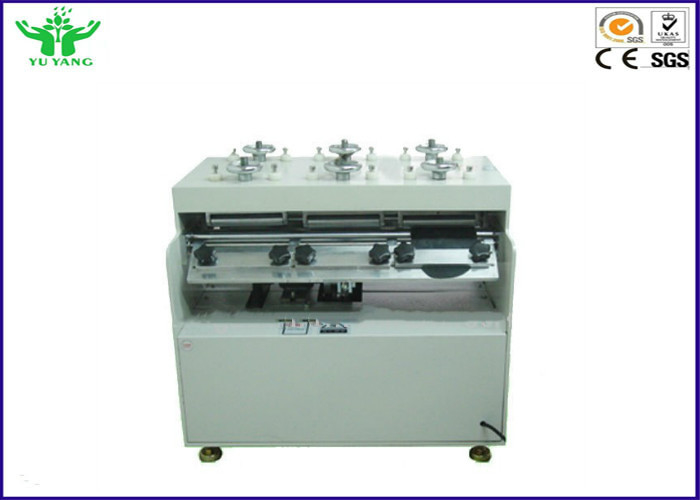

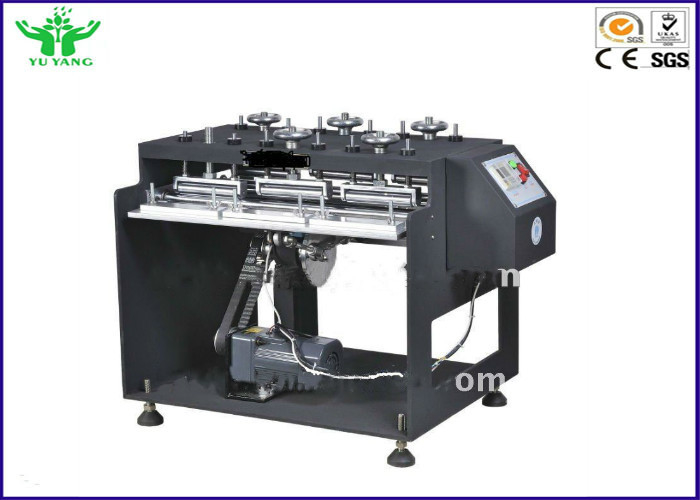

90° Ross Folding Resistance/ bending resistance Testing Machine ASTM D1052
Detailed Descriptions:
90° ROSS Folding/bending resistance Test Machine is suitable for the rubber, soles, PU etc materials Right-angle folding resistance test.
Put the specimens into the tester, after continuously stretch out and draw back, bending, examine the damping, the degree of damage and cracking.
Specifications:
1. Bending angle: 90°max.
2. Bending speed: 100 ± 3 cpm (adjustable)
3. Specimen size: (L)6”x(W)1”(D), sole 0.25”, rubber 1/2”-1/8, or whole sole
4. Clamp: 6 group 12pcs, can be test 6 sole in the same time.
5. Counter:LCD 0～999,999
6. Motor: Speed regulating motor from Taiwan
7. bending shaft diameter:3/8"
8. Dimension: 800×420×450mm(L×W×H)
9. Weight: 60kg
10. Standard: ASTM D1052, BS5131 : 2.1 ASTM-D1052,ISO-5423,4643,HB-T2411 GB 20265-2006
| Bending angle: | 90°max. |
| Bending speed: | 100 ± 3 cpm (adjustable) |
| Specimen size: | (L)6”x(W)1”(D), sole 0.25”, rubber 1/2”-1/8, or whole sole |
| Clamp: | 6 group 12pcs, can be test 6 sole in the same time. |
| Counter: | LCD 0～999,999 |
| Motor: | Speed regulating motor from Taiwan |
| bending shaft diameter: | 3/8" |
| Dimension: | 800×420×450mm(L×W×H) |
| Weight: | 60kg |
| Standard: | ASTM D1052, BS5131 : 2.1 ASTM-D1052,ISO-5423,4643,HB-T2411 GB 20265-2006 |
2. Bending speed: 100 ± 3 cpm (adjustable)
Contact Person: Seline Yu
Tel: +86-13825728643
