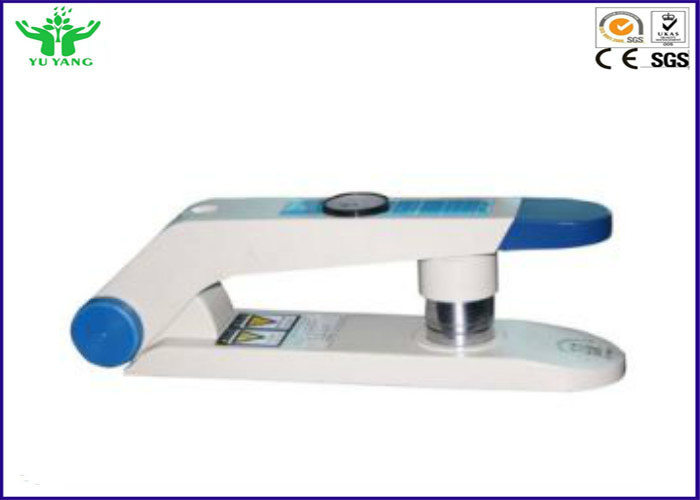

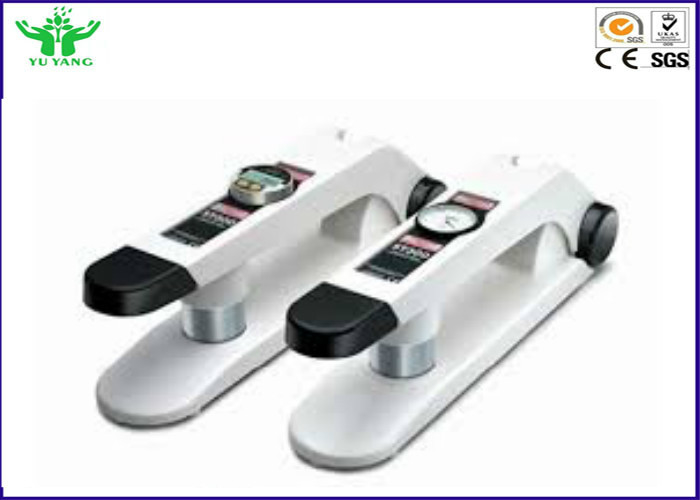

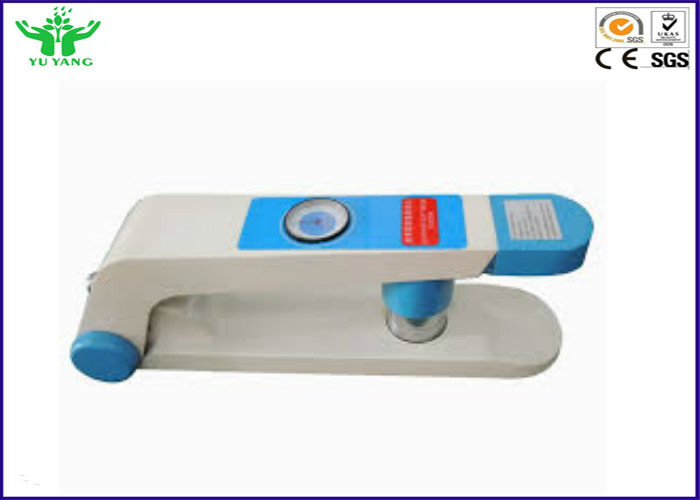

5Kg Portable Footwear Testing Equipment / Leather Softness Tester IULTCS. IUP 36

5Kg Portable Footwear Testing Equipment / Leather Softness Tester IULTCS. IUP 36

  • 5Kg Portable Footwear Testing Equipment / Leather Softness Tester IULTCS. IUP 36
  • 5Kg Portable Footwear Testing Equipment / Leather Softness Tester IULTCS. IUP 36
  • 5Kg Portable Footwear Testing Equipment / Leather Softness Tester IULTCS. IUP 36
  • 5Kg Portable Footwear Testing Equipment / Leather Softness Tester IULTCS. IUP 36
5Kg Portable Footwear Testing Equipment / Leather Softness Tester IULTCS. IUP 36
Product Details:
Place of Origin: CHINA
Brand Name: YUYANG
Certification: IULTCS. IUP 36
Model Number: YYX-022
Payment & Shipping Terms:
Packaging Details: Wooden Case
Supply Ability: 10PCS/Month
Contact Now
Detailed Product Description
Display Table Range:: 0.1 ~ 10mm Load:: 500g
Test Ring Diameter:: 20mm, 25mm Size:: 500 × 100 × 250mm
Weight:: 5Kg Specification:: IULTCS. IUP/36 ISO
High Light:

fatigue tester machine

,

perspiration tester



5Kg  Portable Footwear Testing Equipment / Leather Softness Tester IULTCS. IUP 36



Descriptions:



Soft tester is for the leather and textile fabrics and other soft fabric soft-test design

Put the material in a known test hole on the aperture, and then through a small aperture will load imposed on the fabric, for reads deflection scale pointer value.





Standard:



IULTCS. IUP 36





Specifications:



Display table range: 0.1 ~ 10mm

Load: 500g

Test Ring Diameter: 20mm, 25mm

Size: 500 × 100 × 250mm

Weight: 5Kg


Test diameter 25mm,20mm (optional)
Loading 530±10g or500g
scale 0.1~10mm(actual 0.1~7.6mm)
Volume 13× 48 × 17cm
weight 5kg






NOTE:

All kinds of fixture and elongation measurement device and other accessories can be equipped depending on client's demand, our company would give client the most appropriate advice.
If any specification or content of product has changed, please refer to our company's actual price list.
