600N Chairs Seats Front Stability Furniture Testing Machine 60mm from front edge

600N Chairs Seats Front Stability Furniture Testing Machine 60mm from front edge

  • 600N Chairs Seats Front Stability Furniture Testing Machine 60mm from front edge
  • 600N Chairs Seats Front Stability Furniture Testing Machine 60mm from front edge
  • 600N Chairs Seats Front Stability Furniture Testing Machine 60mm from front edge
  • 600N Chairs Seats Front Stability Furniture Testing Machine 60mm from front edge
  • 600N Chairs Seats Front Stability Furniture Testing Machine 60mm from front edge
  • 600N Chairs Seats Front Stability Furniture Testing Machine 60mm from front edge
600N Chairs Seats Front Stability Furniture Testing Machine 60mm from front edge
Product Details:
Place of Origin: CHINA
Brand Name: YUYANG
Certification: EN 1022,EN 1729-2 and ANSI/BIFMA X5.1 12.4 Front Stability
Model Number: YYJ-009
Payment & Shipping Terms:
Packaging Details: Wooden Package
Supply Ability: 200 Set/Year
Contact Now
Detailed Product Description
Seat Surface Loading:Max:: Seat Surface Loading:Max:600N, Cumulation Horizontal Force:: 20N
Loading Point Position:: Seat Surface Center Position,60mm From Front Edge Seat Surface Diameter:loading Pad:: 200mm
Camber Surface:: R300mm,9 Pins Loading Rob:: 19mm,both Ends A Type:sphere SR19mm B Type: Sharped Surface 45 °
Dimensions(WxDxH):: 100x140x105cm Weight:: 500kg
Air Source:: 6kgf/cm2 Stable Air Source
High Light:

furniture testing equipment

,

incline impact tester



600N Furniture / Chairs Seats Front Stability Test Machine 60mm from front edge





Introduction:

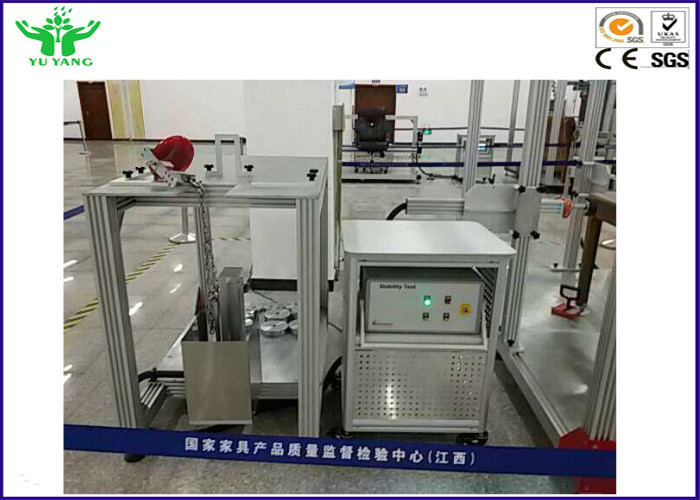

This machine is suitable to test the seats (such as chairs, office chairs) front stability.





Principle:

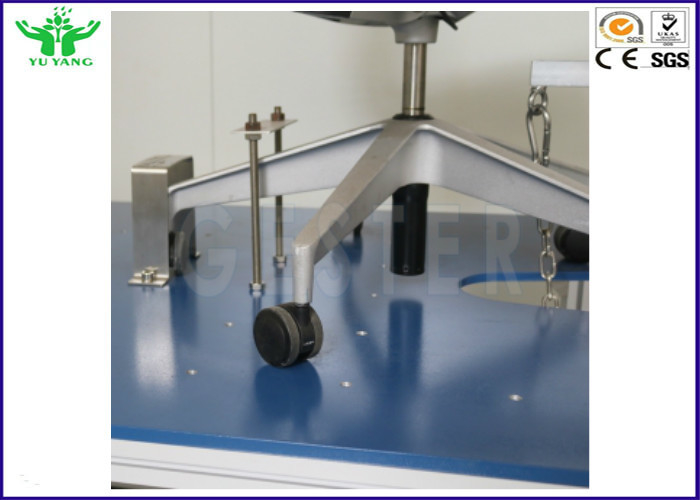

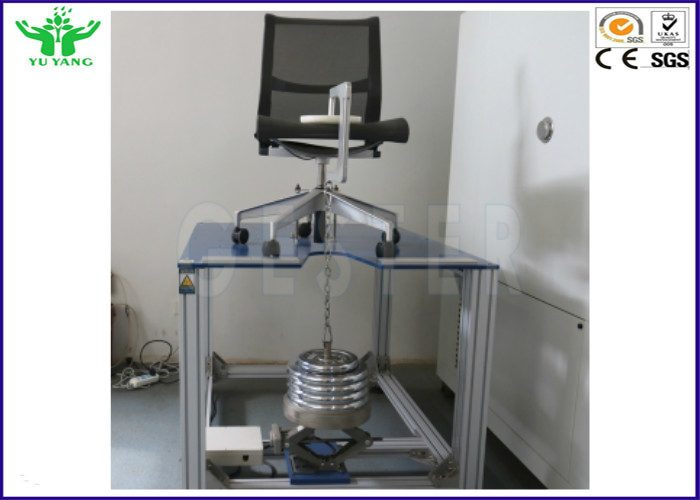

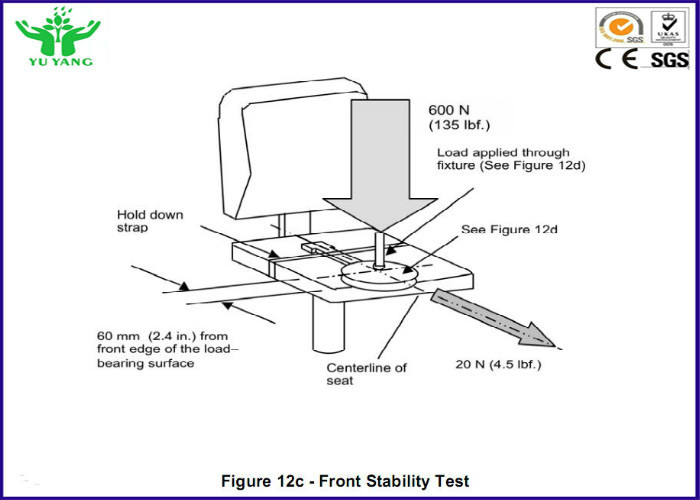

Put the test-piece on the test table, blocked the front leg, apply specified force with forward 20N applied at seat loading point, check the article tends to overturn forward or not to determine the test-piece forward stability performance.





Technical parameters:



Seat surface loading:Max:600N, cumulation

Horizontal force:20N

Loading point position:seat surface center position,60mm from front edge

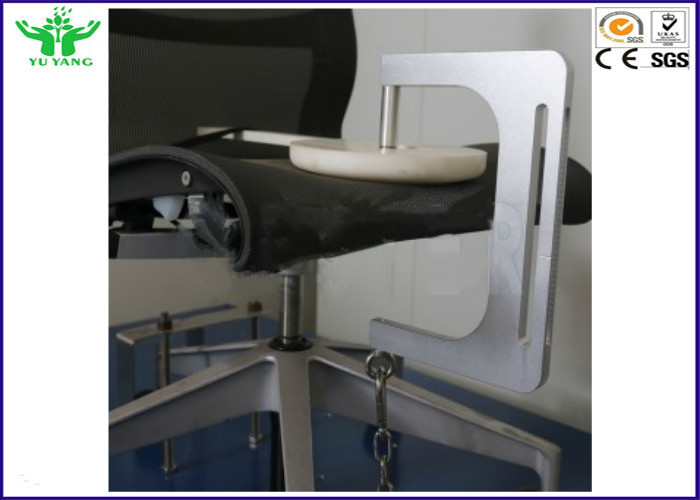

Seat surface loading pad:diameter:200mm, camber surface:R300mm,9 pins

Loading rob:19mm,both ends A type:sphere SR19mm B type: sharped surface 45 °

Weights basket lifting:manual control

Dimensions(WxDxH):100x140x105cm

Weight:500kg

Air source:6kgf/cm2 stable air source

Standards: EN 1022,EN 1729-2 and ANSI/BIFMA X5.1 12.4 Front Stability



Seat surface loading:Max: 600N, cumulation
Horizontal force: 20N
Loading point position: seat surface center position,60mm from front edge
Seat surface loading pad:diameter: 200mm,
Loading rob: both ends A type:sphere SR19mm B type: sharped surface 45 °
Weights basket lifting: manual control
Dimensions(WxDxH): 100x140x105cm
Weight: 500kg
Air source: 6kgf/cm2 stable air source
camber surface R300mm,9 pins



600N Chairs Seats Front Stability Furniture Testing Machine 60mm from front edge 0600N Chairs Seats Front Stability Furniture Testing Machine 60mm from front edge 1600N Chairs Seats Front Stability Furniture Testing Machine 60mm from front edge 2
