10-30CPM Furniture / Chair Backrest Backward Durability Tester QB/T2280-2007

10-30CPM Furniture / Chair Backrest Backward Durability Tester QB/T2280-2007

  • 10-30CPM Furniture / Chair Backrest Backward Durability Tester QB/T2280-2007
  • 10-30CPM Furniture / Chair Backrest Backward Durability Tester QB/T2280-2007
  • 10-30CPM Furniture / Chair Backrest Backward Durability Tester QB/T2280-2007
  • 10-30CPM Furniture / Chair Backrest Backward Durability Tester QB/T2280-2007
  • 10-30CPM Furniture / Chair Backrest Backward Durability Tester QB/T2280-2007
  • 10-30CPM Furniture / Chair Backrest Backward Durability Tester QB/T2280-2007
  • 10-30CPM Furniture / Chair Backrest Backward Durability Tester QB/T2280-2007
  • 10-30CPM Furniture / Chair Backrest Backward Durability Tester QB/T2280-2007
10-30CPM Furniture / Chair Backrest Backward Durability Tester QB/T2280-2007
Product Details:
Place of Origin: CHINA
Brand Name: YUYANG
Certification: ANSI/BIFMA X5.1.15/16 Backrest Durability Test, EN 1335:2000, QB/T2280-2007
Model Number: YYJ-010
Payment & Shipping Terms:
Packaging Details: Wooden Pacakge
Supply Ability: 10PCS/Month
Contact Now
Detailed Product Description
Model: YYJ-010 Maxcapacity:: <1000KN
Loading Method:: Dynamic Load Weight:: 0-100Kg
Power Source:: AC220V Test Speed:: 10-30cpm Done 300, 000 Times The Speed Of Reciproc
High Light:

incline impact tester

,

durability testing machine

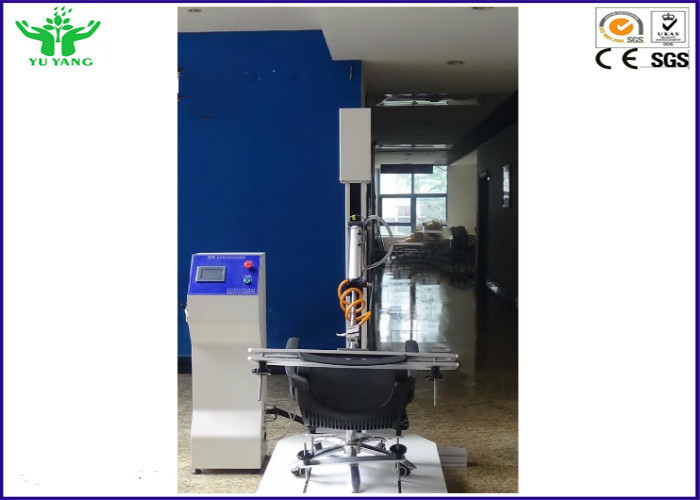

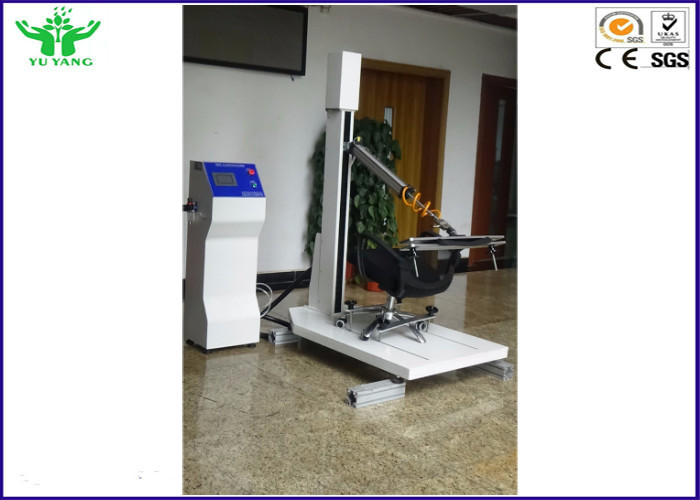

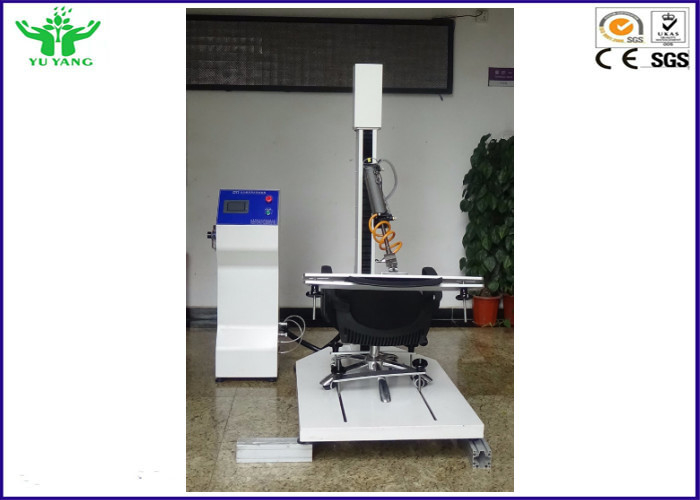

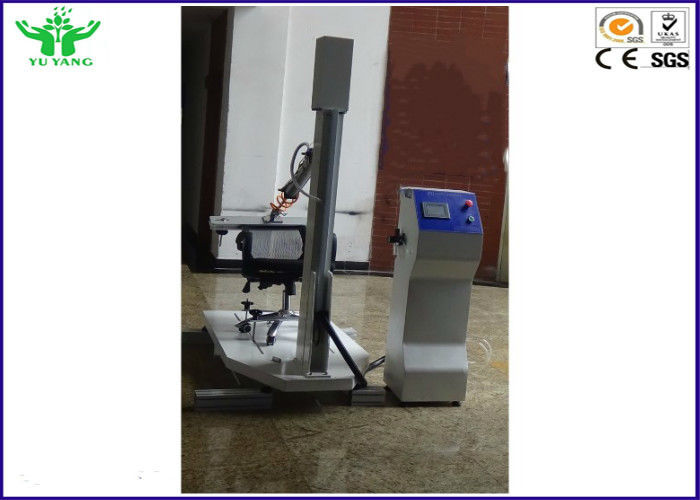

10-30CPM Furniture / Chair Backrest Backward Durability Tester QB/T2280-2007





Introduction of product:



It is suitable to all chairs with backward function. It is used for evaluating the durability of the chair with backward function under the loading status. Test result: Testing Loss of function after the test shall not be qualified (based on customer specified requirements can be judged). Test goal: Appraises all office chair seat back cushion to have the caster function chair to have under the state of loading durable ability.



Test object: All office chairs with back backward function.



Testing process: Fixed chair, chair side load 225 lbs weight, imposed by external force only between the points.



Test speed:10-30CPM done 300,000 times the speed of reciprocating motion.

Results evaluation: No loss of function after the test.





Characteristic:



1. Electrically adjustable cylinder output angle

2. Specimen clamping with no tools required

3. Humanized operation control, a key to complete the test

4. Digital voltmeter, voltage monitor, off memory counter, Avoid unravel

5. T-square linear bearing guide screw, stable, smooth





Standards:



ANSI/BIFMA X5.1.15/16 Backrest Durability Test, EN 1335:2000, QB/T2280-2007



Test object:

All office chairs with back backward function

Testing process

Fixed chair, chair side load 225 lbs weight, imposed by external force only between the points.

Test speed:

10-30CPM done 300,000 times the speed of reciprocating motion.

Results evaluation: No loss of function after the test.

Power Source: AC220V
Maxcapacity <1000KN
Load Way: Electronic Load



10-30CPM Furniture / Chair Backrest Backward Durability Tester QB/T2280-2007 010-30CPM Furniture / Chair Backrest Backward Durability Tester QB/T2280-2007 110-30CPM Furniture / Chair Backrest Backward Durability Tester QB/T2280-2007 2
