10±2 times / min Slip Type Life Tester Caster / Chair Base Durability Test-Cyclic

10±2 times / min Slip Type Life Tester Caster / Chair Base Durability Test-Cyclic

  • 10±2 times / min Slip Type Life Tester Caster / Chair Base Durability Test-Cyclic
  • 10±2 times / min Slip Type Life Tester Caster / Chair Base Durability Test-Cyclic
  • 10±2 times / min Slip Type Life Tester Caster / Chair Base Durability Test-Cyclic
10±2 times / min Slip Type Life Tester Caster / Chair Base Durability Test-Cyclic
Product Details:
Place of Origin: CHINA
Brand Name: YUYANG
Certification: BIFMA X5.1-2011 17 Caster/Chair Base Durability Test-Cyclic
Model Number: YYJ-013
Payment & Shipping Terms:
Packaging Details: Wood Carton Packing
Supply Ability: 8 PCS/Month
Contact Now
Detailed Product Description
Test Bed Size:: 85x160cm Test Speed:: 10±2times/min
Test Stroke:: ≥762mm Load:: 113kg±1g
Blocks :: Thickness 3.2mm,width 51mm, Edge Blend 3 Pcs Test Times:: Barrier:2000 Times; Barrier Free:98000 Times
Counting:: 0~999 999 Adjustable Control Mode:: PLC+TEXT Screen Control
Size(WxDxH): Test Machine:: 270x85x129cm;control Box:36x32x100cm Weight(Kg):: ≈500Kg
Air Supply:: 7kgf/cm^2 And Above Stable Gas Source Power:: 1∮ AC 220V 3A
High Light:

furniture testing equipment

,

incline impact tester



10±2 times / min Slip Type Life Tester---Caster / Chair Base Durability Test-Cyclic







Introduction of product:

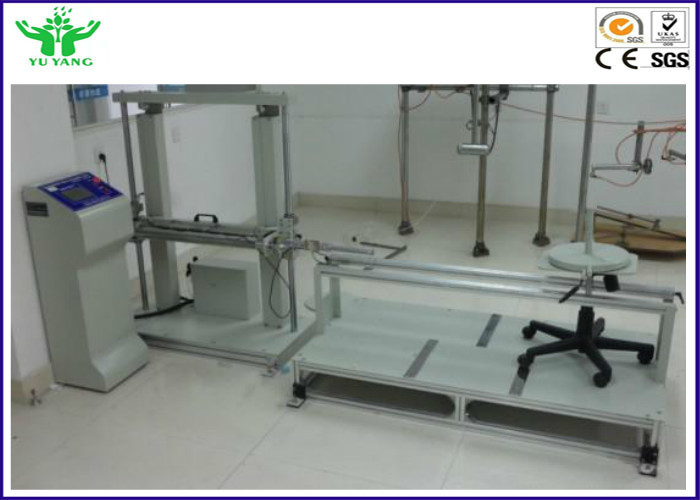

Slip Type Life Tester is suitable for testing the base seat chair with caster,to determine the ability of caster or base resistance to fatigue and abrasion caused by moving forward or backward.Place the caster specimens on the tester platform,and loading 102kg to make the specimen in repeat travel at a certain speed,the travel distance should be at least 762mm..After certain times,check the caster function is normal.This machine is required to place on a horizontal and stable platform when install.Slip type life tester needs to connect with 7kgf/cm^2 or above clean gas supply.





Technical parameters:



Test bed size: 85x160cm

Test speed: 10±2 times/min

Test stroke: ≥762mm

Load: 113kg±1g

Blocks : thickness 3.2mm,width 51mm, edge blend 3 pcs

Test times: barrier:2000 times; barrier free:98000 times

Counting: 0~999 999 adjustable

Control mode: PLC+TEXT screen control

Size(WxDxH): Test machine:270x85x129cm;control box:36x32x100cm

Weight(Kg): ≈500Kg

Air supply: 7kgf/cm^2 and above stable gas source

Power: 1∮ AC 220V 3A



Standard:

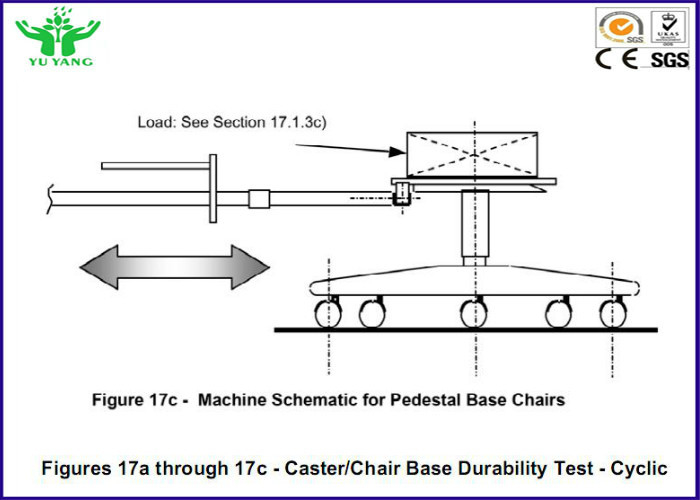

BIFMA X5.1-2011 17 Caster/Chair Base Durability Test-Cyclic



Test bed size:  85x160cm
Test speed:  10±2 times/min
Test stroke: ≥762mm
Load:  113kg±1g
Blocks :  thickness 3.2mm,width 51mm, edge blend 3 pcs
Test times:  barrier:2000 times; barrier free:98000 times
Counting:  0~999 999 adjustable
Control mode: PLC+TEXT screen control
Size(WxDxH):  Test machine:270x85x129cm;control box:36x32x100cm
Weight(Kg):  ≈500Kg
Air supply:  7kgf/cm^2 and above stable gas source

Power:

1∮ AC 220V 3A



10±2 times / min Slip Type Life Tester Caster / Chair Base Durability Test-Cyclic 010±2 times / min Slip Type Life Tester Caster / Chair Base Durability Test-Cyclic 1
