0 – 1500N Furniture Testing Machine Seat Front Edge Durability 80 psi

0 – 1500N Furniture Testing Machine Seat Front Edge Durability 80 psi

  • 0 – 1500N Furniture Testing Machine Seat Front Edge Durability 80 psi
  • 0 – 1500N Furniture Testing Machine Seat Front Edge Durability 80 psi
0 – 1500N Furniture Testing Machine Seat Front Edge Durability 80 psi
Product Details:
Place of Origin: CHINA
Brand Name: YUYANG
Certification: EN 1728: 2012 6.18 Seat front edge durability test
Model Number: YYJ-015
Payment & Shipping Terms:
Packaging Details: Strong Wooden Case
Delivery Time: 10-15 work days
Supply Ability: 300 Set/Sets per Month
Contact Now
Detailed Product Description
Load Application:: Seat: 0 – 1,500N (subject To Air Supply) Dimensions:(H×W×D): 1800×1600×1200 Mm
Power Supply:: 230/250V 50Hz 5 Amps Air Supply:: 80 Psi
Net Weight:: 200 Kg Standard:: EN 1728: 2012 6.18 Seat Front Edge Durability Test
High Light:

furniture testing equipment

,

durability testing machine



0 – 1,500N Furniture Testing Machine Seat Front Edge Durability Test Machine 80 psi



Capability:



Durability testing of the front edge and sides of all types of seating.





Description:

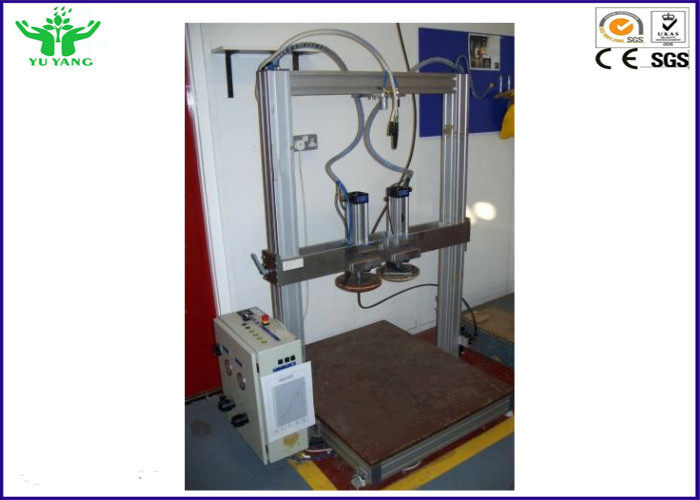

This pneumatically-operated, electronically controlled test machine can be utilized to carry out seat front
edge durability tests on standard upright seating.

The machine applies alternate seat loads via pneumatic cylinders.
The machine features full adjustability to cope with differing heights and widths of chairs
The machine is supplied with over load and over travel switches to automatically cut out loads in the
event of failure.





Specification:


Load Application: Seat: 0 – 1,500N (subject to air supply)
Dimensions: Height 1800 mm
Width 1600 mm
Depth 1200 mm
Power Supply: 230/250V 50Hz 5 amps
Air Supply: 80 psi
Net Weight: 200 kg





Standard:



EN 1728: 2012 6.18 Seat front edge durability test



Load Application: Seat: 0 – 1,500N (subject to air supply)
Dimensions: 1800×1600×1200 mm
Power Supply:  230/250V 50Hz 5 amps
Air Supply:  80 psi
Net Weight:  200 kg
Standard:  EN 1728: 2012 6.18 Seat front edge durability test



0 – 1500N Furniture Testing Machine Seat Front Edge Durability 80 psi 00 – 1500N Furniture Testing Machine Seat Front Edge Durability 80 psi 1
