Place of Origin:
CHINA
Brand Name:
YUYANG
Certification:
GB/T 10357.5-2011 QB/T2454-2013
Model Number:
YYJ-017

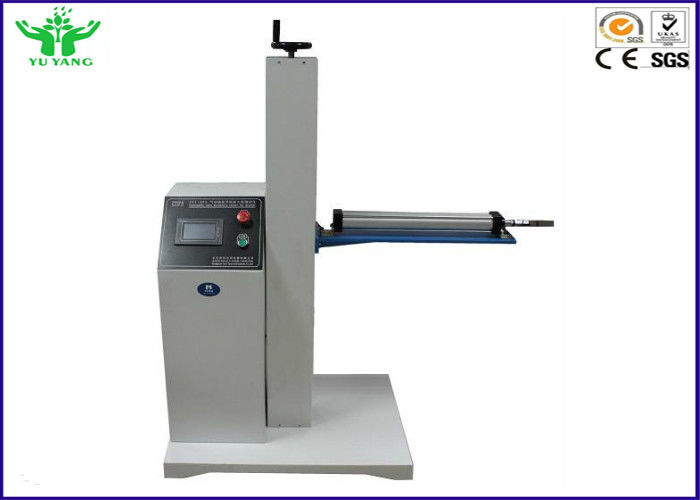

90-120 degree Pneumatic Durability Tester for Cabinet Door and Drawer Slideway
Introduction of product:
This machine is used to test the durability performance for cabinet door and drawer slideway.
Our company develops the Drawer Repeat Pull-push Tension Tester independently. we can make the tester according to the customer's quality requirements relating to various domestic and international testing.SCM control.
Technical parameters:
Open up angle: 90-120 degree
Max height:1200mm
Drawer size: 150-1300mm/adjustable
Test speed: 10~18 cycles/min, adjustable
Timer : 0-9,99999
Air source need:7kgf/cm^2 or above stable air source
Machine Size (L*W*H): 800*600*1200mm
Power: 1∮ AC 220V 50Hz 3A
Standards:
GB/T 10357.5-2011 Test of mechanical properties of furniture—Part 5:Strength and durability of storage units;
Refer to QB/T2454-2013
| Open up angle: | 90-120 degree |
| Max height: | 1200mm |
| Drawer size: | 150-1300mm/adjustable |
| Test speed: | 10~18 cycles/min, adjustable |
| Timer : | 0-9,99999 |
| Air source need: | 7kgf/cm^2 or above stable air source |
| Machine Size (L*W*H): | 800*600*1200mm |
| Power: | 1∮ AC 220V 50Hz 3A |
