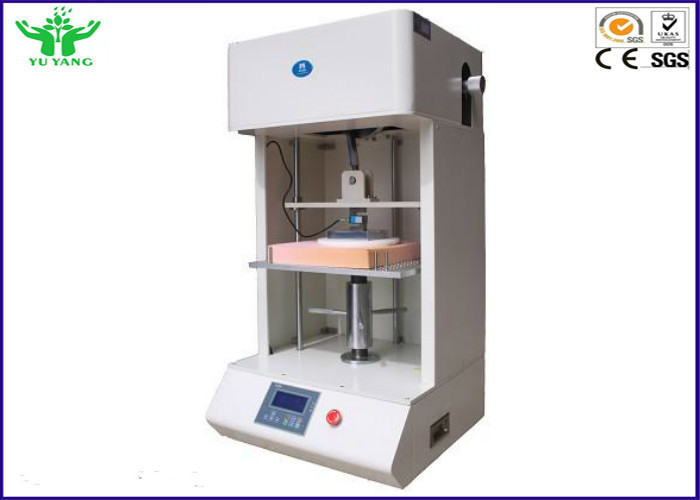

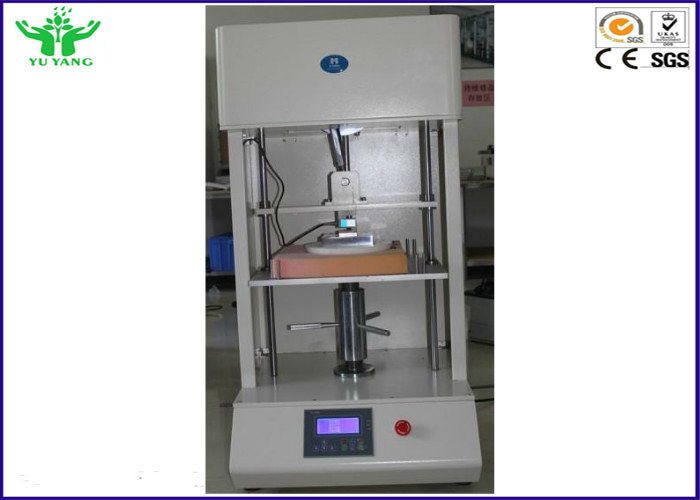

High Speed Furniture Foam Dynamic Repeated Indentation Fatigue Testing Macine 0 ~ 50mm

High Speed Furniture Foam Dynamic Repeated Indentation Fatigue Testing Macine 0 ~ 50mm

  • High Speed Furniture Foam Dynamic Repeated Indentation Fatigue Testing Macine 0 ~ 50mm
  • High Speed Furniture Foam Dynamic Repeated Indentation Fatigue Testing Macine 0 ~ 50mm
  • High Speed Furniture Foam Dynamic Repeated Indentation Fatigue Testing Macine 0 ~ 50mm
  • High Speed Furniture Foam Dynamic Repeated Indentation Fatigue Testing Macine 0 ~ 50mm
High Speed Furniture Foam Dynamic Repeated Indentation Fatigue Testing Macine 0 ~ 50mm
Product Details:
Place of Origin: CHINA
Brand Name: YUYANG
Certification: GB/T 18941, GB/T 12825 and ISO 3385
Model Number: YYJ-022
Payment & Shipping Terms:
Packaging Details: Wooden Case
Supply Ability: 50 set/Month
Contact Now
Detailed Product Description
Test Speed:: 70±5 R/min Test Cycles:: 80 000
Upper Platen Dia:: Φ250mm, Lower Edge Border-radius:R25mm Lower Plate: 420mm*420mm
Air Hole Diameter:: 6.5mm; Hole Center Gap: 20mm Travel:: 0~50mm
Sample Load:: 750±20N Specimen Size:: (380±20)mmx(380±20)mmx(50±2)mm
Timer:: 0~999 999 Size(WxDxH):: 64x52x70cm
Weight:: Approx 70Kg Power:: 1∮ AC 220V 50Hz 3A
High Light:

incline impact tester

,

durability testing machine



70±5 r/min Furniture Foam Dynamic Repeated Indentation Fatigue Testing Macine 0~50mm





Equipment discription:



This tester is used to test the reduction of thickness and hardness values of porous elastic material that is used for interior decoration. Put a square specimen into the tester. Sunk into the sample repeatedly with a smaller pressure head. Each impact has reach the max load within the prescribed scope at the same time. After a certain number, evaluate the performance of the sample.





Technical Parameters:



Test speed: 70±5 r/min

Test Cycles: 80 000

Upper Platen Dia:Φ250mm, Lower edge border-radius:R25mm

Lower plate 420mm*420mm,

Air hole diameter: 6.5mm; Hole center gap: 20mm;

Travel: 0~50mm

Sample load: 750±20N

Specimen size: (380±20)mmx(380±20)mmx(50±2)mm

Timer: 0~999 999

Size(WxDxH): 64x52x70cm

Weight: approx 70Kg

Power: 1∮ AC 220V 50Hz 3A





Standard:



GB/T 18941, GB/T 12825 and ISO 3385



Test speed:  70±5 r/min
Test Cycles:  80 000
Upper Platen Dia: Φ250mm, Lower edge border-radius:R25mm
Lower plate  420mm*420mm
Air hole diameter: 6.5mm; Hole center gap: 20mm
Travel: 0~50mm
Sample load:  750±20N
Specimen size:  (380±20)mmx(380±20)mmx(50±2)mm
Timer:  0~999 999
Size(WxDxH):  64x52x70cm
Weight:  approx 70Kg
Power:  1∮ AC 220V 50Hz 3A
