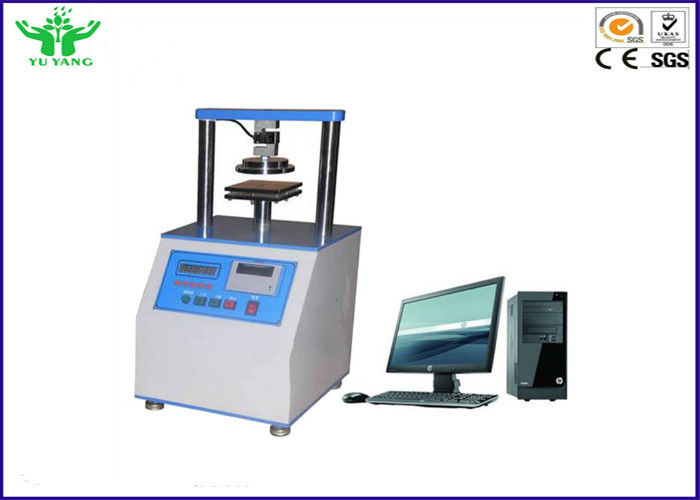

Digital Ring Stiffness Corrugated Paper Tensile Strength Testing Equipment

Digital Ring Stiffness Corrugated Paper Tensile Strength Testing Equipment

  • Digital Ring Stiffness Corrugated Paper Tensile Strength Testing Equipment
  • Digital Ring Stiffness Corrugated Paper Tensile Strength Testing Equipment
  • Digital Ring Stiffness Corrugated Paper Tensile Strength Testing Equipment
  • Digital Ring Stiffness Corrugated Paper Tensile Strength Testing Equipment
Digital Ring Stiffness Corrugated Paper Tensile Strength Testing Equipment
Product Details:
Place of Origin: China
Brand Name: YUYANG
Certification: TAPPI-T472; T808, T810, T811, T818; JIS-P8126; GBT2679.6, GBT2679.8, GBT2679.17
Model Number: YYP-021
Payment & Shipping Terms:
Packaging Details: 300 Set/Sets per Month
Delivery Time: 5-8 work days
Contact Now
Detailed Product Description
Compression Speed: 12.7±3.0mm/min Constant Speed: 12.7,25.4,38.1,50.8,60mm/min
Compression Plate Size: Φ130mm. Determination Of The Max. Pressure: 200kg(can Make It According To The Requirement)
Power: 220V 50Hz Weight: 75kg
High Light:

packaging testing instruments

,

compression test equipment



Digital ring stiffness corrugated paper tensile strength testing equipment



Product description:



Digital ring stiffness plastic tensile strength tester crushing strength tester is suitable for testing compressive strength of corrugated paper and kraft paper. It can be used to test marginal pressure strength, agglutination intensity. This machine can also do flat crush strength test, compression resistance test, Sticky degrees test as well as other compression tests.This machine also equipped with advanced high precision load device and load displayer, thus the test load value can display and read directly.





Technical parameter:



Name China Manufacturer High Quality Computer Type Ring Crush Strength Tester Price
Compression Speed

12.7±3.0mm/min(Or by the customer separate and non-section

speed)

Constant Speed 12.7,25.4, 38.1, 50.8, 60mm/min
Compression plate size Φ130mm.
Determination of the maximum pressure 200kg(can make it according to the requirement)

Ring Compression Testing Machine is

equipped with an optional fixture into

the test under the following

Ring Crush Test Center is equipped with disc and ring voltage

dedicated sampler to carry out cardboard ring compression

strength test (RCT)

Equipped with side pressure (adhesive) and the secondary

sample for lead blocks for compressive strength of corrugated

board edge test (ECT)

Peel strength test frame is equipped to carry out corrugated

board adhesion (peel) strength test (PAT)

Is equipped with platen specimen sampler to carry out

compressive strength of corrugated board level test (FCT)

Standard Ring Crush Test Fixture for a group.
Power 220V 50Hz
Weight 75kg
Dimension 480×480×600mm





Product description:



China Manufacturer High Quality Computer Type Ring Crush Strength Tester Price used to test the compression resistance degree of corrugated paper and kraft paper in upright

direction at certain condition. This machine can also do flat crush strength test, compression resistance test,

Sticky degrees test as well as other compression tests.This machine also equipped with advanced high

precision load device and load displayer, thus the test load value can display and read directly.





Main functions:


The machine in order to test the quality of paper for a variety of paper can be Ring Crush Test (RCT), level

pressure (FCT), while pressure (ECT), bonding (PAT) and the general compression (CMT) and many other

tests the most direct equipment




Main features:


China Manufacturer High Quality Computer Type Ring Crush Strength Tester Price uses microcomputer to control, double-column frame, sensor measuring system, stepless speed regulation.Its novel structure, digital processing and

accurate, easy to use and easy to maintenance, Its the most economical ring compressive strength testing

machine in the market at present.

.


Corresponding standard:


China Manufacturer High Quality Computer Type Ring Crush Strength Tester Price in accordance with the national standard CNS production, paper and paperboard test

in accordance with requirements of the equipment design, in line with GB2679.8 "Cardboard Ring Crush

Strength Determination", GB6546 "compressive strength of corrugated board edge Determination", GB6548 "

corrugated board adhesiveDetermination of combined strength "and GB2679.6" corrugated core-level

Determination of compressive strength "and other standard requirements.

Digital Ring Stiffness Corrugated Paper Tensile Strength Testing Equipment 0Digital Ring Stiffness Corrugated Paper Tensile Strength Testing Equipment 1Digital Ring Stiffness Corrugated Paper Tensile Strength Testing Equipment 2
