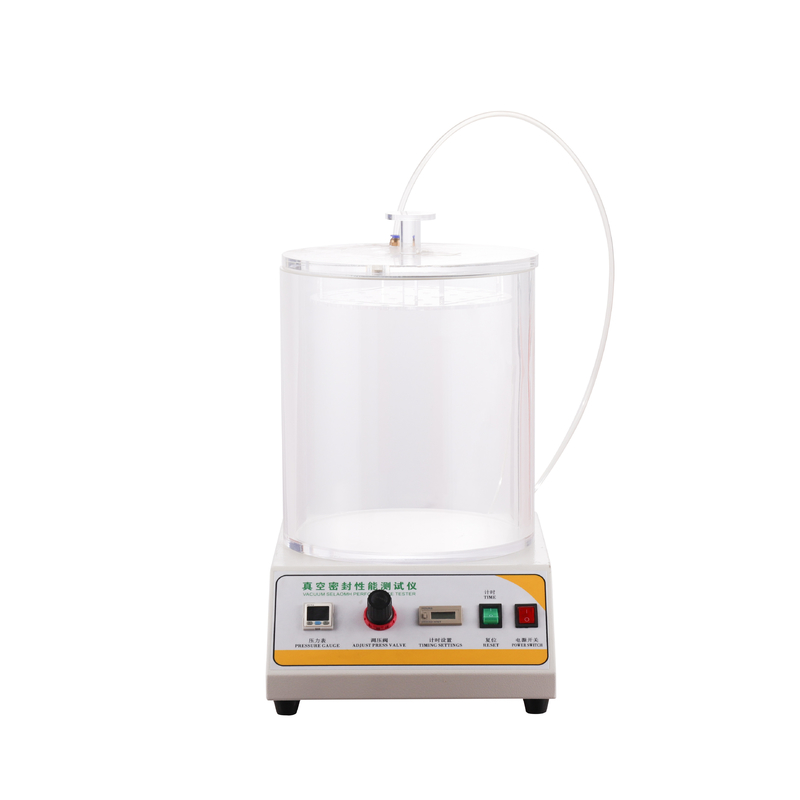

Digital Display Leakage Detection Instrument Seal Package Vacuum Leak Tester

Digital Display Leakage Detection Instrument Seal Package Vacuum Leak Tester

  • Digital Display Leakage Detection Instrument Seal Package Vacuum Leak Tester
  • Digital Display Leakage Detection Instrument Seal Package Vacuum Leak Tester
  • Digital Display Leakage Detection Instrument Seal Package Vacuum Leak Tester
  • Digital Display Leakage Detection Instrument Seal Package Vacuum Leak Tester
Digital Display Leakage Detection Instrument Seal Package Vacuum Leak Tester
Product Details:
Place of Origin: China
Brand Name: YUYANG
Certification: CE
Model Number: YYP002
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Price: $700
Packaging Details: Wooden Box
Delivery Time: 7-30 Days
Payment Terms: T/T
Contact Now
Detailed Product Description
Vacuum Degree: 0~ -90kPa Air Pressure Range: 0.7Mpa
Gas Inlet: 6mm Polyurethane Pipe Resolution: 0.1Kpa
Gas Supply Pressure: 0.6 MPa (outside Of Supply Scope) Standard: GB/T 15171, ASTM D3078

Digital Display Leakage Detection Instrument Seal Package Vacuum Leak Tester 0

Product Description

1, By vacuuming the vacuum chamber, the sample immersed in water is subjected to internal and external pressure difference, and the gas escape in the sample is observed to determine the sealing performance of the sample.
2, By vacuuming the vacuum chamber, the sample is subjected to internal and external pressure difference, and the shape of the sample is recovered after the sample is expanded and the vacuum is released, thereby determining the sealing performance of the sample.
3, The instrument meets many national standards: GB/T 15171, ASTM D3078.

Features

1, Manual control is adopted to keep pressure. It is easy to operate and has stable performance.
2, Pneumatic components are manufactured by manufacturers and have stable performance. Pressure holding instability due to pneumatic components.

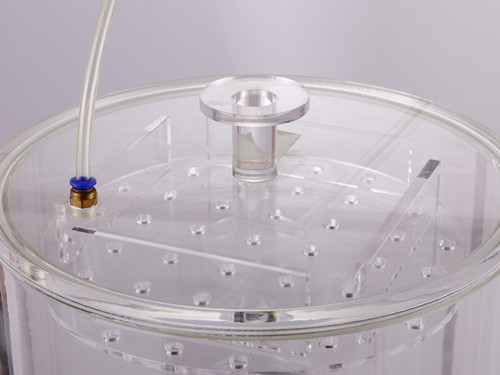

3, Glass (acrylic) sealed barrel, wall thickness increased to 15mm, compressive strength of sealed barrel
4, Electronic pressure holding device to reduce mechanical wear and make pressure retention time.

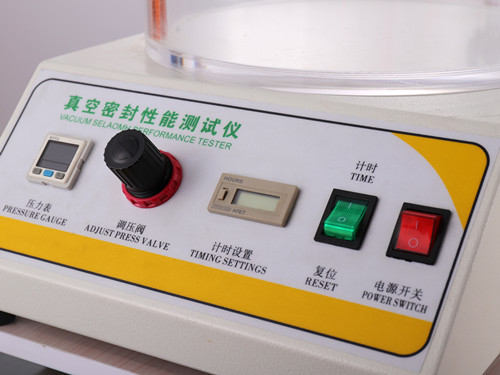

5, PVC operation panel, pressure pointer display, convenient for users to quickly view pressure values

Application

The sealing tester is suitable for sealing test of packaging bags, bottles, tubes, cans, boxes, etc in food , dairy chemical, automotive, electronic components, stationery and other industries. It can also be used to test the sealing performance of the specimens after drop the withstand pressure test.

Technical parameters:
Vacuum degree:
-90~ 0kPa
Accuracy:
Level 1
The effective size of the vacuum chamber:
medium 270mmx 200 mm (H) (standard)
Note: Other sizes can be customized
Air source pressure:
0.7MPa
Air source interface:
middle 8 polyurethane tube
Dimensions:
460mm(L)x 360mm(B)x 530mm(H)
Power supply:
AC 220V 50Hz
Net weight:
15kg
