| Place of Origin: | China |
| Brand Name: | YUYANG |
| Certification: | ISTA 1A, ASTM D999 |
| Model Number: | YY040 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $10 |
| Packaging Details: | Plywood Case |
| Delivery Time: | 15-20 work days |
| Payment Terms: | T/T, L/C, Western Union |
| Supply Ability: | 2 sets per month |
| Allowed Max Load: | 500kg | Vibration Speed: | 100CPM-300 CPM |
|---|---|---|---|
| Vibration Range: | 1 Inch(25.4 Mm) | Vibration Type: | Rotary Motion |
| Simulation Speed: | 25km/h-40km/h | The Worktable Size: | 2000mm*1000mm (L*W) |
| Barrier Height: | 1000mm | Control Motor: | AC Frequency Conversion Motor |
| The Power Supply Voltage: | 380 V, 50 HZ,3 A | The Machine Weight: | About 350 Kg |
| High Light: | Simulate Transportation Vibration Testing Machine,ASTM D999 Vibration Testing Machine,ASTM D999 Vibration Test Instrument |
||

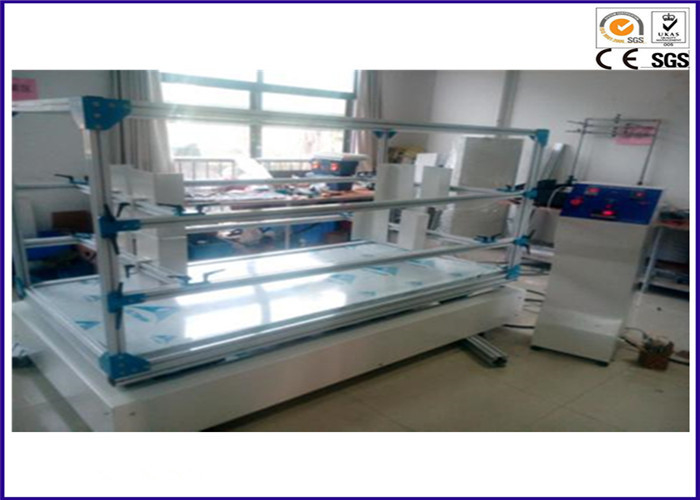

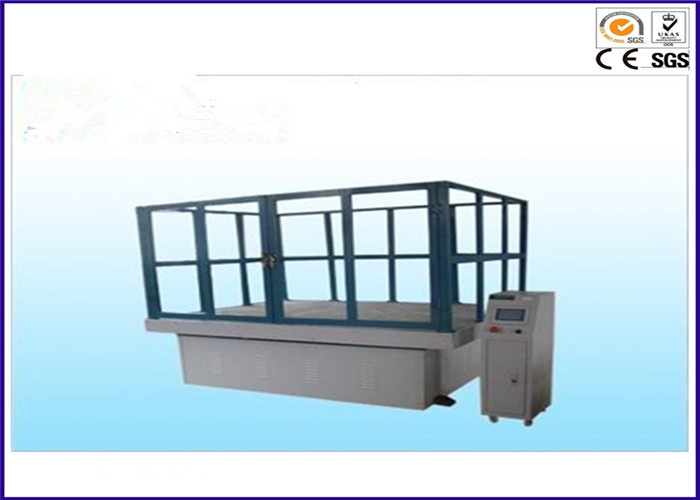

ASTM D999 Large-Scale Vibration Testing Machine For Simulate Transportation
Dscriptions:
Vibration Test Instrument is used for testing the vibration resistance of large furniture, home appliance,toys,electronics,gifts,packaging etc. Also can be used for simulating the transportation under vibration.
Stainless steel working table.Adjustable speed electrical machine supply powerful motive power,strong loading ability.
Synchronous belt transmission,heavy channel beam base equipped with damped rubber, stable running, low noise.

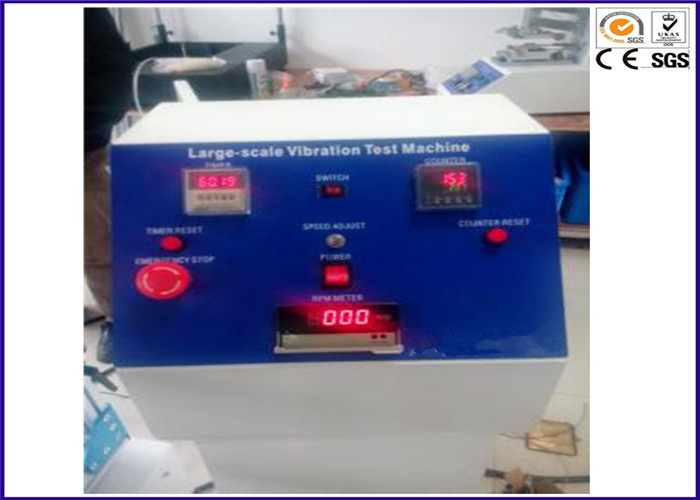

Digital display the vibrate frequency and test time.Intelligent time relay to set the running time.
Standards: ISTA 1A,ASTM D999
Specifications:
| Item | Specification |
| Allowed max load | 500 kg |
| Vibration speed | 100CPM-300 CPM |
| Vibration range | 1 inch(25.4 mm) |
| Vibration type | Rotary Motion |
| Simulation speed | 25km/h-40km/h |
| The worktable size | 2000mm*1000mm (L*W) |
| Barrier height | 1000 mm |
| Control motor | AC frequency conversion motor |
| The power supply voltage | 380 v, 50 HZ,3 A |
| The machine weight | About 350 kg |
| The whole machine size | 2100 mm * 1100 mm * 1450 mm (L*W*H) |
FAQ
1. who are we?
We are based in Guangdong, China, start from 2018,sell to Southeast Asia(11.00%),Eastern Asia(10.00%),Southern Europe(10.00%),Domestic Market(10.00%),Northern Europe(9.00%),South Asia(9.00%),North America(7.00%),South America(7.00%),Western Europe(7.00%),Eastern Europe(6.00%),Mid East(6.00%),Oceania(5.00%),Central America(3.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Testing Equipment/Tensile Testing Machine/Environmental Test Chamber/Fire Testing Equipment,Induction Heating Machine
4. why should you buy from us not from other suppliers?
We are a high-tech enterprise which is specialized in developing and manufacturing Fire Testing Equipment, Building Material Fire Tester, Wire and Cable Fire Tester, Environmental Test Chamber, Textile Testing Equipment, Toys Testing Equipment and etc.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES；
Accepted Payment Currency:USD,EUR,JPY,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese
