0~25mm High Frequency Wire Testing Equipment , Cable Spark Testing Machine 0-15kv

0~25mm High Frequency Wire Testing Equipment , Cable Spark Testing Machine 0-15kv

  • 0~25mm High Frequency Wire Testing Equipment , Cable Spark Testing Machine 0-15kv
  • 0~25mm High Frequency Wire Testing Equipment , Cable Spark Testing Machine 0-15kv
  • 0~25mm High Frequency Wire Testing Equipment , Cable Spark Testing Machine 0-15kv
  • 0~25mm High Frequency Wire Testing Equipment , Cable Spark Testing Machine 0-15kv
0~25mm High Frequency Wire Testing Equipment , Cable Spark Testing Machine 0-15kv
Product Details:
Place of Origin: China
Brand Name: YUYANG
Model Number: YYW-007
Payment & Shipping Terms:
Packaging Details: wooden case
Delivery Time: 5-8 work days
Supply Ability: 500 Set/Sets per Month
Contact Now
Detailed Product Description
Output Voltage:: 0-15kv Electrode Tested Length:: 50mm-120mm
Max.Load Current Resistance:: 4mA Detection Reset:: About 0.1 Second
Max. Wire Travelling Speed:: 1000-2400m/Min Cable Diameter:: 0~25mm
Operation Humidity: <90%RH Output Frequency: 2.5-3.5KHznormal
High Light:

cable testing equipment

,

spark testing equipment



0~25mm High Frequency wire and cable Spark Testing Machine 0-15kv



Product Description:



Testing equipment for wire and cable
High-frequency Spark tester for wire and cable production line with CE certificate:
SS015K series high-frequency spark tester is an efficient and reliable product inspection device that can be used to precisely detect the broken skin, pinhole and bare copper of the conductor of the various wire and cable. It can detect the defective layer without damaging the inside electrical conductor. By using high frequency (3KHZ) and high volte electrode to replace traditional (50/60HZ) high volt electrode, its electrode tip can select a 50mm beaded-contact, copper brush, carbon brush or a roller, which can shorten installation dimension greatly and enhance detection speed to be ranging from 1000m/min to 2400m/min. This device developed based on Taiwan, Europe and American technology combination is very reliable and smart.





Specifications:



Test Voltage:1.0~15.0KV. Cable Diameter: 0~25mm. Output Frequency: 2.5-3.5KHz normal. Fast recovery time after fault (0.1s)

The Sine Wave Spark Tester is a fast and reliable instrument used in distinguish wire faults and detecting bare wires. Its high-speed fault detection feature gives you prompt information without worsening the condition of the wire after the test.

The use of high frequency (3KHz) enables a traditional commercial power frequency bead chain electrode to be shortened to 120mm HS015E Model.

The Sine Wave Spark Tester is quality-assured to meet your needs.





Basic Function:



1.Fast recovery time after fault (0.1 second).



2.Occupies short space in line and with improvement factor of 50 compared to



3.traditional CT power frequency electrode.



4.Voltage Display: 0.0~15.0KV digit, 14.2mm LED display, Accuracy +/- 1% of reading



5.Output Control: Front Panel Reset in Manual Mode. Closure time is selectable



6.0.2s/2s/5s in main board by jumper JP, Form C relay contacts (250VAC/5A) for all



7.wire faults detected.



8.Limits the fault current without damaging the test equipment.



9.Short exposure time to corona does not degrade nor damage good insulation.



10.Distinguishes all wire faults and detects bare wire.



11.Safety Switch interlock.





Basic Specification:



Specification ZL-1007
Output Voltage 0.0~15.0KV R.M.S.
Test Voltage 1.0~15.0KV R.M.S.
Cable Diameter 0~25mm
Maximum Load Current 4mA Resistive,40mA Capacitive
Output Frequency 2.5-3.5KHznormal
Electrode lengths Bead Chain 120mm
Fault Indication Indicating lamp,Counting by Digital Counter
Output Control 1 Form C relay Contacts(220VAC/5A)for all wire faults and bare wire faults detected
Input Control SP1, SP2 input interlock control
Operating Model Extruder Continuous Application
Power Source 175~264 Volts, 180VA, Single phase, 50/60 Hz
Operation Temperature +4~45°C
Operation Humidity <90%RH
Signal Cable Lengths 5M
Weight Control Unit =5 kgs, Electrode = 8.5 kgs
Dimension Controller 360(L)x485(W)x90(H) mm
Gauge Head 330(L)x200(W)x390(H)
Line Speed 2000 M/min. maximum*

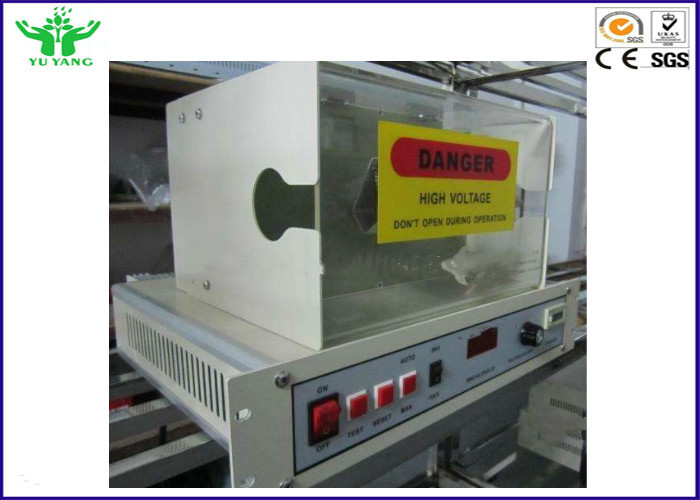

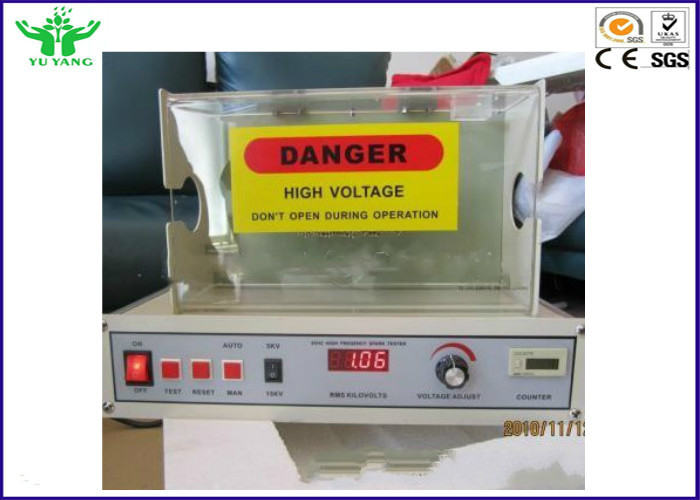

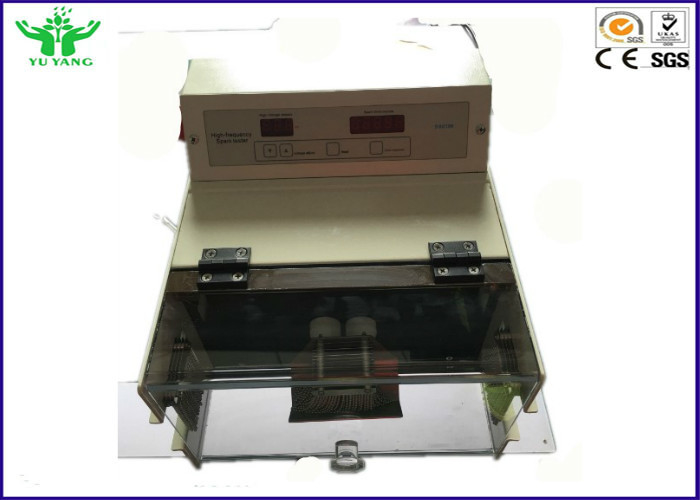

 0~25mm High Frequency Wire Testing Equipment , Cable Spark Testing Machine 0-15kv 00~25mm High Frequency Wire Testing Equipment , Cable Spark Testing Machine 0-15kv 10~25mm High Frequency Wire Testing Equipment , Cable Spark Testing Machine 0-15kv 2
