| Place of Origin: | China |
| Brand Name: | YUYANG |
| Certification: | JIS K 6259 ASTM1149 ASTM1171 ISO1431 DIN53509 GB7762 GB/T13642 |
| Model Number: | YYW-008 |
| Packaging Details: | Standard Wooden Case |
|---|---|
| Delivery Time: | 10-15 work days |
| Supply Ability: | 20 Set/Sets per Month |
| Temperature Range: | RT+10 Degree~+65 Degree | Control Accuracy Of Temperature: | ±0.5 Degree |
|---|---|---|---|
| Distribution Uniformity Of Temperature: | ±2.0 Degree | Analytic Accuracy Of Temperature: | 0.1 Degree |
| Ozone Concentration (pphm): | 1~1000, Adjustable | Deviation Of Ozone Concentration: | ≤10% |
| Ozone Generator: | Silent Discharge Tube Type | The Machine Noise: | 72 DB(A) |
| Timing Range: | 0~9999hours | Clamps Tensile Stretch: | 5%~35% |
| High Light: | cable testing equipment,spark testing equipment |
||

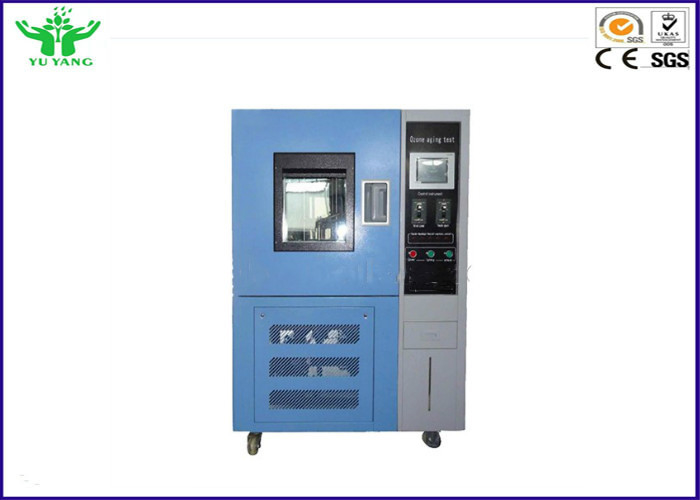

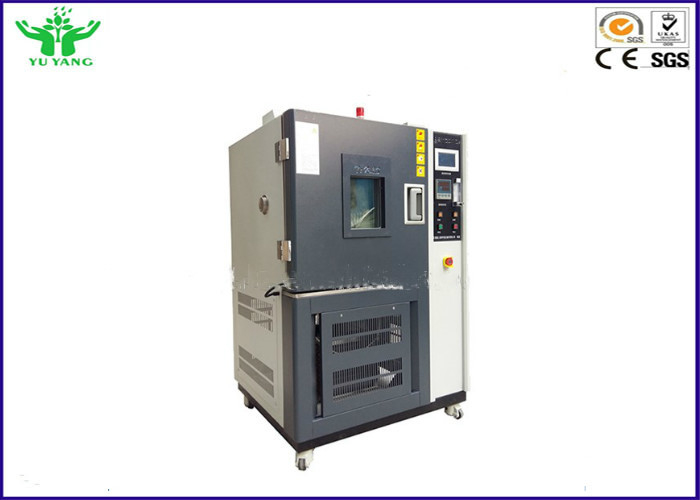

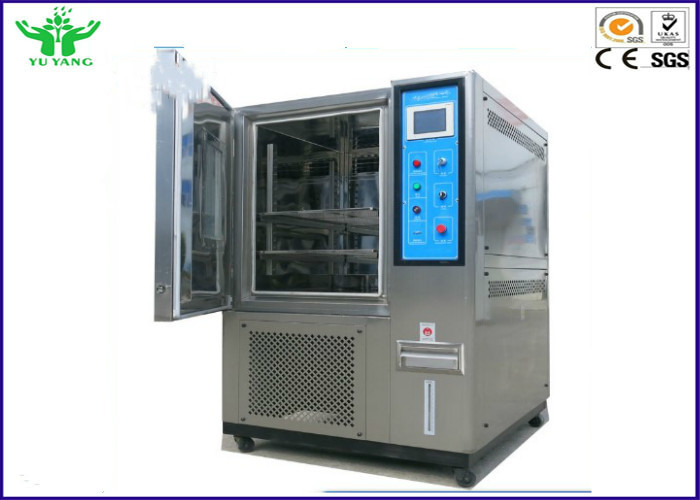

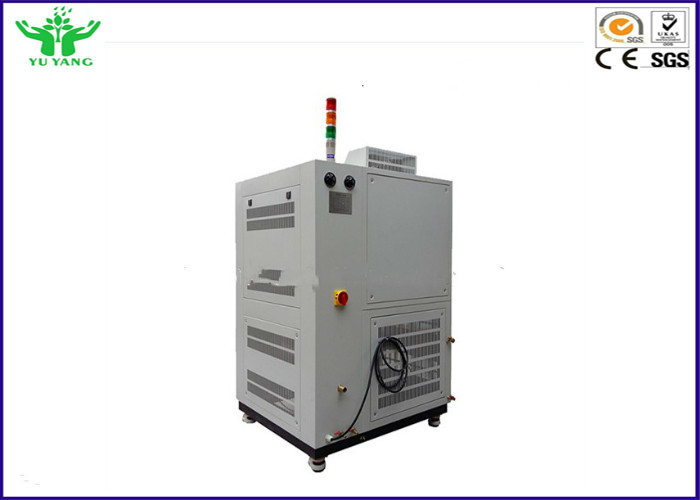

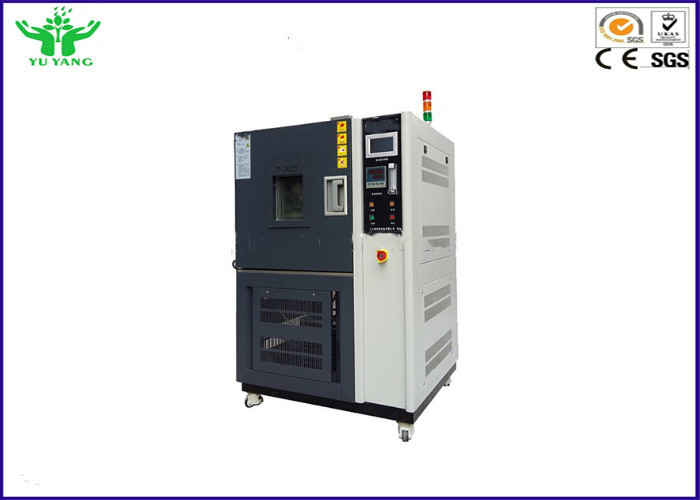

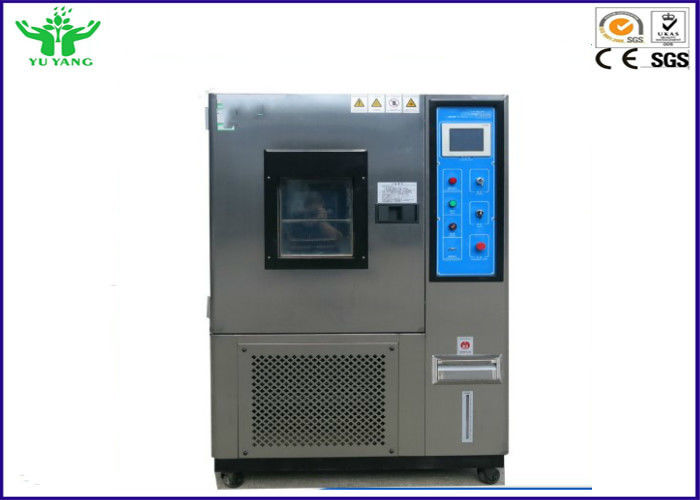

45%~95%R.H Ozone Aging Resistance Testing Machine for Wire and Cable N120gO3/m³
Product Description:
Ozone Aging Resistance Testing Machine for Wire and Cable is mainly suitable for polymer materials and products (rubber) of the resistance to ozone aging performance test. Ozone content in the atmosphere is very low, but it is the main factors of polymer materials aging. Ozone aging test chamber simulating and strengthen the ozone condition in the atmosphere, get approximate to actual use or reproduction of the test results in a short time. The studay of ozone effect regulation to rubber products, quickly identify and evaluate rubber materials resistance to ozone and antiozonant protection efficiency method,and then take effective aging proof measures to improve the service life of rubber products.
It is widely used to control products quality in measuring quality control; Rubber & Plastics; automobile production; wire and cable; packing materials; instruments and meters; medical equipment; civilian nuclear energy; civil aviation; colleges and universities; research laboratories; inspection arbitration, and technical supervision departments and other rubber products.
Main function:
This Ozone testing chamber is used to test the ozone environment, the characteristics of crack-resistant rubber, ozone resistance testing machine, can control and adjust the concentration of ozone environment, to determine the anti-ozone properties of the specimen.
Features:
1. 7'' Touch panel controller, simple and friendly menu
2. Unprecedented uniform exposure of all specimens using a rotating carousel
3. Closed-loop servo control ensures highly stable ozone concentration levels
4. Integrated ozone destructor with built-in safety interlocks
5. Ozone resistant wetted materials
6. with castors
Cooling system:
1. Compressor: single stage refrigeration system with Tecumseh compressor
2. Refrigerant: R404 R23
3. Condenser: Air-cooling condenser
4. Evaporator: Fin-type evaporator
5. Expansion system: Danfoss expansion valve
Corresponding standard:
JIS K 6259 ASTM1149 ASTM1171 ISO1431 DIN53509 GB7762 GB/T13642
Technical parameters:
Model |
YYW-008-80 | YYW-008-408 | YYW-008-800 |
| Internal Dimensions WxHxD (mm) | 400x500x400 | 600x850x800 | 1000x1000x800 |
| External Dimensions WxHxD (mm) | 950x1650x950 | 1200x1950x1350 | 1600x2000x1450 |
| Temperature Range | RT+10 degree~+65 degree | ||
| Control Accuracy of Temperature | ±0.5 degree | ||
| Distribution Uniformity of Temperature |
±2.0 degree | ||
| Analytic Accuracy of temperature | 0.1 degree | ||
| Ozone Concentration (pphm) | 1~1000, adjustable | ||
| Deviation of Ozone Concentration | ≤10% | ||
| Ozone Generator | Silent discharge tube type | ||
| Internal and External Material | Material of the inner box is SUS 304# stainless steel, of the outer box is stainless steel or see cold-rolled steel with paint coated. | ||
| Insulation Material | Polyurethane rigid foam / superfine glass fiber cotton | ||
| Security | Leakage, short circuit, over-current protection | ||
| Power | AC 220V | ||
| Timing range | 0~9999hours | ||
| Ozone concentration | 0~10000PPHM (Adjusted) | ||
| Air flow speed | 8-16mm/S | ||
| Clamps tensile stretch | 5%~35% | ||
| Max. ozone concentration | N120gO3/m³ | ||
| Ozone output | 3.5gO3/h ((oxygen input, flow rate 100L/h) | ||
| Working condition | Enviromental temperature:5℃~30℃ ,enviromental humidity:≤85%R.H Please put things 80cm away from the ozone test chamber. | ||
