Name: 0 ~ 99 Min Adjustable Wire Testing Equipment Cable Abrupt Pull Testing Machine >1000KN
Brand: DONGGUAN YUYANG INSTRUMENT CO., LTD
SKU: YYW-014
Price: 25,000.00 USD
Availability: InStock

Home > products > Wire Testing Equipment >

0 ~ 99 Min Adjustable Wire Testing Equipment Cable Abrupt Pull Testing Machine >1000KN

cable testing equipment

flame test chamber

Place of Origin:

China

Brand Name:

YUYANG

Certification:

UL817

Model Number:

YYW-014

Request A Quote

0 ~ 99 Min Adjustable Wire Testing Equipment Cable Abrupt Pull Testing Machine >1000KN

Product Details

Power Source::

AC220V

Rotation Time::

≤ 15 S

Load Weight::

- 15 Lb 6

Power Up Time::

0 ~ 99 Min Adjustable

Weight::

100-500Kg

Tensile Height::

254 Mm (10 "), 178 Mm (7") 2 Stalls

Maxcapacity::

>1000KN

Mass Scope Of Workpiece::

1000kg

Highlight:

cable testing equipment

flame test chamber

Payment & Shipping Terms

Packaging Details

Wooden Case

Delivery Time

5-8 work days

Supply Ability

1,000 Set/Sets per Month

Single Insulated Cable Testing Equipment , IEC 60332-1 Flame Propagation Test Apparatus

Get Best Price

IEC 60332-3 Vertical Flammability Tester For Burning Behaviour Of Bunched Cables

Get Best Price

IEC60331 Wire Testing Equipment Cable Fire Resistance Test For Circuit Integrity Under Fire Conditions

Get Best Price

Halogen Acid Gas Release Corrosion Testing Equipment IEC 60754-1&2 Test Standard

Get Best Price

+86-13825723571

sales002@yuyangtest.com

86-769-26622869

Contact Now

Product Description

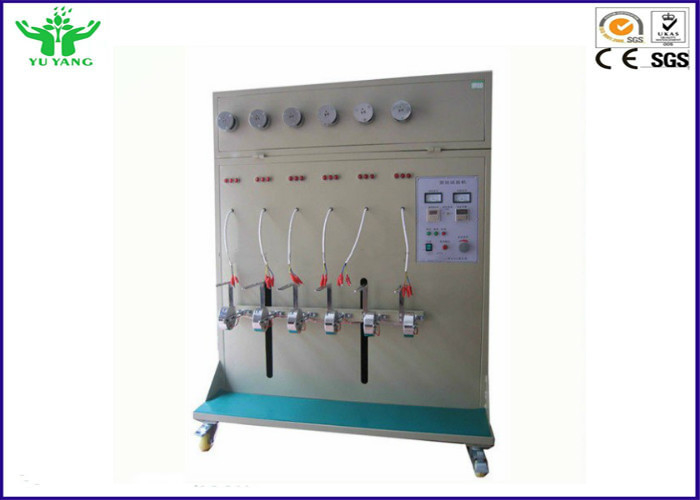

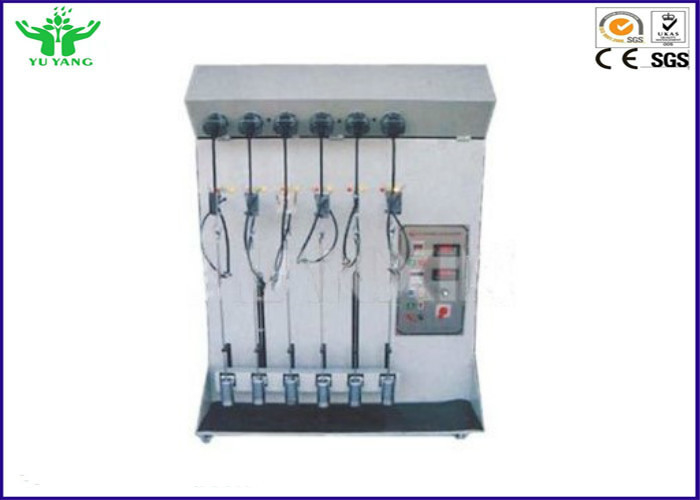

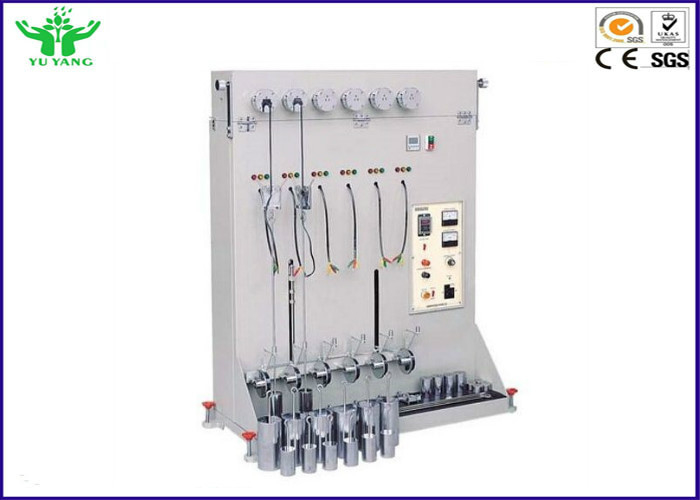

0 ~ 99 Min Adjustable Wire Tester Cable Abrupt Pull Testing Machine >1000KN

Production details:

This tester is specialized in testing abrupt / rotary pull strength between the blades and conductor . Fix the blades to the plug fixture and tie the cord to the grip with stripped conductors outside on which the crocodile clips clamp . Afterward , hang the weight assembly onto the grip hook to perform the above test . It can also execute the current test independently.

Technical Parameters:

1. Power supply: AC 220 V, 50 Hz, 10 A;
2. Load current: AC 6 ~ 12 V, 40 A;
3. Power up time: 0 ~ 99 min adjustable;
4. Rotation time: ≤ 15 S;
5. Tensile height: 254 mm (10 "), 178 mm (7") 2 stalls;
6. Number of poles: 0 ~ 9999 times can be preset;
7. Weight: Rally weight - 2.5 Lb 6;
Rotating weights - 3 Lb 6;
Load weight - 15 Lb 6;
8. Station: 6
9. Reference standard: UL817 Article 99.1

Specification:

Order information	YYW-014-1(6 sets), YYW-014-2 (3sets),
Specimen Volume	6 sets / 3 sets
Abrupt Pull weight	2.5LB ×6 pcs
Rotation Weight	3LB ×6 pcs
Load Weight	15LB ×6 pcs
Load Current	0-50A12V (adjustable)
Counter	0-999999 (adjustable)
Abrupt Pull Height	7”/10” (adjustable)
Power	AC220V/ 50hz

0 ~ 99 Min Adjustable Wire Testing Equipment Cable Abrupt Pull Testing Machine >1000KN 0
