Place of Origin:
China
Brand Name:
YUYANG
Model Number:
YYE-001

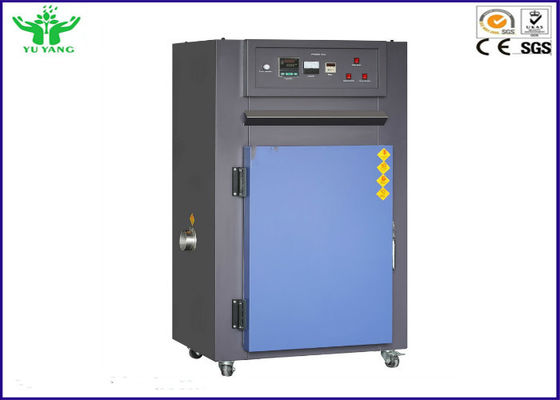

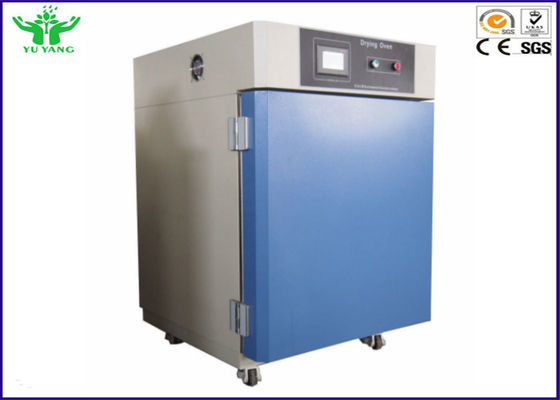

0.1℃ Stainless Steel Hot Air Circulating Industrial Drying Oven About 6 ºC / min
Hot air drying oven is to make use of the steam or electric as heat source, through heating the air by heat exchange and adopting the axial fan as the driving power, the moisture content of hot air materials is reducing so as to realize the purpose of drying. It is wildly used in pharmaceutics, food make, light and heavy, manufacture industries for the purpose of drying the material and products.
Characteristics:
1. Fine powder coating treatment; Inner SUS201 stainless steel.
2. Use new high temperature resistant long shaft motor
3 Turbine fan.
4. Silicone forced tight.
5. Over-temperature protection, super load automatic power system.
6. Circulation system: air force level cycle.
7. Heating system:PID+S.S.R.
8.The thermostat: PID microcomputer control, automatic constant temperature, temperature quickly compensation function
9. Timer: temperature to time, when the power failure alarm indication.
10. According to customer demand matching glass window can be customized according to customer specifications specified.
Provide different size drying oven, support customized.
| Model | YYE-001-100 | YYE-001-225 | YYE-001-500 | YYE-001-800 | YYE-001-1000 | ||||
| Internal dimensions (mm) | 400*500*500 | 500*600*750 | 700*800*900 | 800*1000*1000 | 1000*1000*1000 | ||||
| Overall dimensions (mm) | 750*880*850 | 800*950*1000 | 1100*1100*1300 | 1100*1450*1400 | 1300*1400*1400 | ||||
| Temperature range | Ambient ~+250 ºC; ( Ambient ~+400 ºC; Ambient ~+900 ºC) | ||||||||
| Temperature fluctuations | ± 0.5 ºC | ||||||||
| Temperature deviation | ± 2.0 ºC | ||||||||
| Heating rate | About 6 ºC / min | ||||||||
| Controller | Digital PID Temperature Controller | ||||||||
| Temperature Sensor | PTR Platinum Resistance PT100 | ||||||||
| Heating system | Nichrome heater | ||||||||
| Exterior material | Steel Plate with Protective coating | ||||||||
| Interior material | SUS304 stainless steel | ||||||||
| Timing Function | 0.1~999.9 (S,M,H) settable | ||||||||
