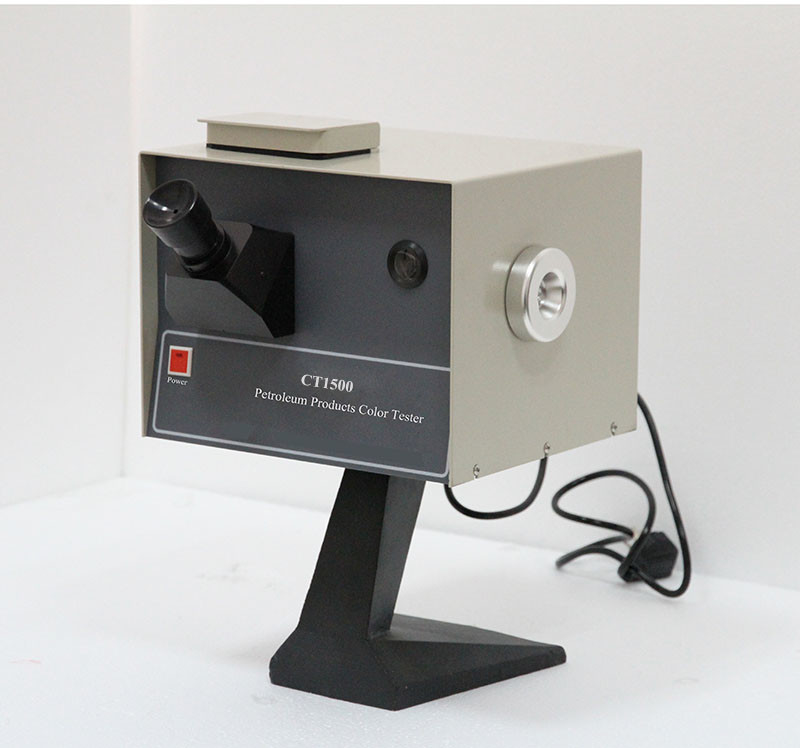

Manual Operation Grey Oil Analysis Equipment Petroleum Oil Color Tester

Manual Operation Grey Oil Analysis Equipment Petroleum Oil Color Tester

  • Manual Operation Grey Oil Analysis Equipment Petroleum Oil Color Tester
  • Manual Operation Grey Oil Analysis Equipment Petroleum Oil Color Tester
Manual Operation Grey Oil Analysis Equipment Petroleum Oil Color Tester
Product Details:
Place of Origin: CHINA
Brand Name: YUYANG
Certification: ISO
Model Number: CT1500
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: USD1500
Packaging Details: Plywood case
Delivery Time: 15 days
Supply Ability: 100 Sets per month
Contact Now
Detailed Product Description
Test Standard: ASTM D1500 Power Supply: AC220V±5%,50Hz
Test Method: Comparision Tube Keyword: Colorimeter
Operation: Manual Color: Grey
Warranty: 1 Year Light Source: 220 V, 100 W
High Light:

oil testing machine

,

oil analyzer equipment

ASTM D1500 Petroleum Oil Color Tester Colorimeter Testing Equipment

Summary
This color tester is suitable to determine color of various lubricating oils and other petroleum products as per industrial standard of China SH/T 0168-92 Standard Test Method for Color of Petroleum Products. The test methods are as follows: Fill test sample into color comparing tube and compare sample color with standard color to ascertain its color number. Please see the attached color number comparing sheet to find out the similarity between color number of the instrument and color number in standard GB/T6540.

I. Main technical specifications
1. The colorimeter is composed of standard color dial, observation lens, light source and color comparing tube.
2. The light source is a 220 V, 100 W, with temperature of 2750±50 K grinding milk white light bulb. After filtering color by milk white glass and sunshine filtering glass, the spectrum characteristics of light gained from sunshine is similar to it. The standard light will change into two parallel lights, which is similar in size, trough plane reflection mirror and prism. The parallel lights will irradiate on sample in the color comparing tube on the color glass of standard color dial evenly and respectively.
3. There are 26 pieces of Φ14 light holes. And standard color glasses having 1~25 color number are installed in the 25 of these holes in sequence. The 26 hole is blank. The color dial is rotated by a hand wheel installed at right side of instrument to choose the correct color during color comparing test. The standard color comparing glass on the color dial should be calibrated by standard color comparing liquids.
4. The color comparing tube is Φ32 mm, 120~130 mm high non-colorful flat bottom glass tube. The color comparing tube is placed into instrument trough a lid on the top of the instrument.
5. The observation lens is composed of concave mirror and separated bar. You can see two semicircle colors through observation lens. The right semicircle is standard color. The light and focus of optical observation lens can be adjusted, so it is easy to be used.

III.Accessories
No. Item Unit Qty Remarks
1 Colorimetrical cylinder Piece 4
2 Milk white grinding lamp Piece 1 100W,220V
Manual Operation Grey Oil Analysis Equipment Petroleum Oil Color Tester 0
