Safe Transformer Tangent Delta Power Factor Tester for Electrical Test Kit

electrical test equipment

electrical test kit

Place of Origin:

CHINA

Brand Name:

YUYANG

Certification:

ISO

Model Number:

TDT

Request A Quote

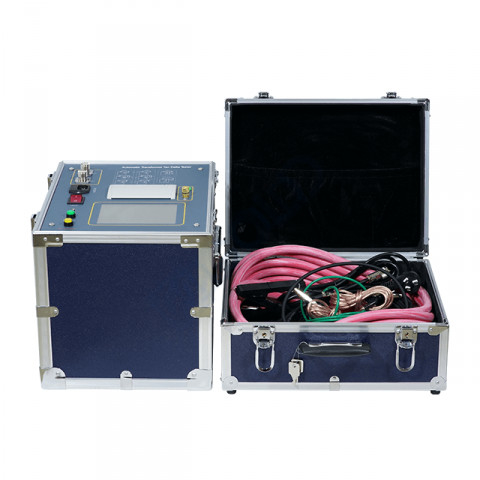

Safe Transformer Tangent Delta Power Factor Tester for Electrical Test Kit

Product Details

Keyword:

Tangent Delta&power Factor Tester

Size:

350×270×270mm

Weight:

28KG

Measurig Range:

0.5KV~10KV

CVT Range:

10~10000

Warranty:

1 Year

Highlight:

electrical test equipment

electrical test kit

Payment & Shipping Terms

Minimum Order Quantity

1 set

Price

USD5000

Packaging Details

Plywood case

Delivery Time

15 days

Supply Ability

100 sets per month

1.5KW Electric Control PCB Separator Machine Punching Mahine Highly Automatic

Get Best Price

Induction Heating Machine 10kw Brazing Used Bolt Induction Heating Machine

Get Best Price

Video

Manufacture Stable Heating Machine Custom-Built Heating Machine

Get Best Price

Video

Ultrahigh Frequency Induction Heating Machine Induction Heating Machine

Get Best Price

+86-13827278034

sales08@yuyangtest.com

86-769-26622869

Contact Now

Product Description

Capacitance Tangent Delta Power Factor Dielectric Loss Tester

I.Introduction:

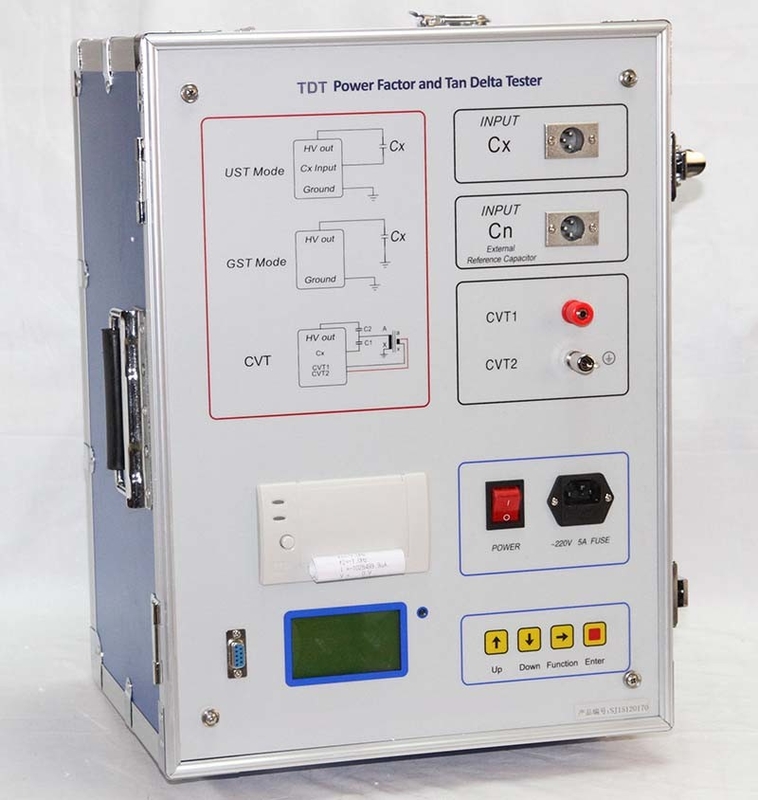

TDT Transformer Tangent Delta Tester is an integrated structure, there is a dielectric loss test bridge, a variable frequency power supply, a step-up transformer and a SF6 high stability standard capacitor built-in;

This capacitance test set can also supply high voltage source for testing.

Frequency can be changed to 50Hz, 47.5Hz52.5Hz,45Hz55Hz, 60Hz, 57.5Hz62.5Hz, 55Hz65Hz; thus, this power factor tester can avoid interference of power frequency;

This tan delta analyzer can also be used as power supply;

II.Specifications:

No.	Item Name	Automatic Transformer Power Factor Tester,10KV Capacity test set,dielectric loss tester,tan delta analyzer
1	Use conditions	-15℃~40℃	RH<80%
2	Anti-interference	Frequency conversion
3	Power	AC 220V±10%	Allowable generator
4	High output	0.5KV~10KV	Every 0.1kV
		Precision	2%
		Maximum current	200mA
		Capacity	2000VA
5	Self-excited power	AC 0V~50V/15A	45HZ/55HZ 47.5HZ/52.5HZ 55HZ/65HZ 57.5HZ/62.5HZ Automatic double frequency
6	Resolving power	tgδ: 0.001%	Cx: 0.001pF
7	Precision	tgδ:(Reading*1.0%+0.040%)
		Cx :(Reading*1.0%+1.00PF)
8	measuring range	tgδ	Unlimited
		Cx	15pF < Cx < 300nF
			10KV	Cx < 60 nF
			5KV	Cx < 150 nF
			1KV	Cx < 300 nF
		CVT test		Cx < 300 nF
9	CVT range	10~10000
	accuracy	0.1%
	Resolving power	0.01
10	Dimension	350270270mm
11	Memory size	The 200 group supports U disk data storage
12	Weight	28 Kg
