| Place of Origin: | China |
| Brand Name: | YUYANG |
| Certification: | ISO |
| Model Number: | BDV-2 |
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | USD2700 |
| Packaging Details: | PLYWOOD CASE |
| Delivery Time: | 15 DAYS |
| Supply Ability: | 100 SETS PER MONTH |
| Keyword: | Breadown Voltage Tester,bdv Tester,withstand Voltage Tester,dielectric Strength Tester | Test Standard: | IEC156,ASTM D1816 , ASTM D877 Etc |
|---|---|---|---|
| Output Voltage: | AC 0V~80KV Or 0~100KV | Size: | 550 Mm*500mm*580mm |
| Weight: | 38kg | Warranty: | 1 Year |
| High Light: | electrical test equipment,electrical test kit |
||

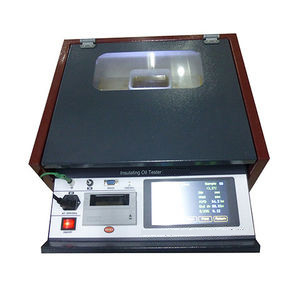

IEC156 80kV Transformer Oil Breakdown Voltage BDV Tester
I.Introduction:
It is designed according to IEC156 Insulating Oil Dielectric Strength Test Method;

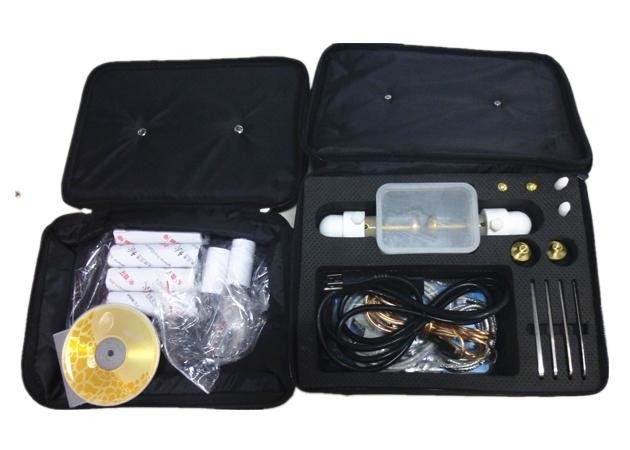

The oil test vessel with temperature measurement unit, so it can detect oil temperature.
With 8 Kinds of test mode as optional: IEC156, IS6792, BS5874, ASTM D1816 , ASTM D877, Proof test, 5 minutes standard test, Manual test;

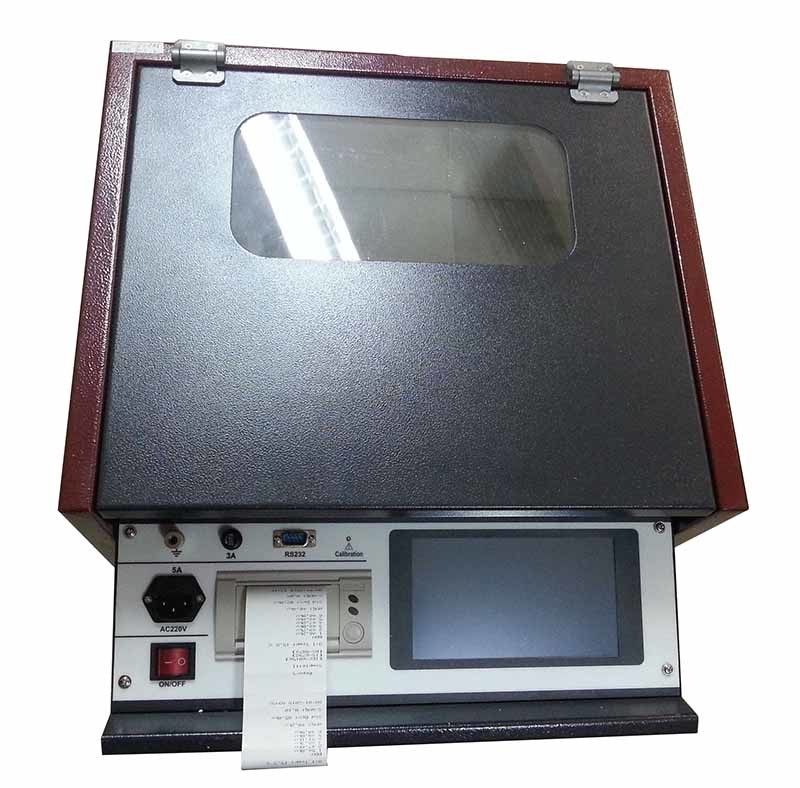

This transformer oil breakdown voltage tester has large LCD display, all the selection can be done by touch panel with color LCD;
This insulation oil BDV testesr also has micro-printer and can store 100 groups data, test data can also be unload to PC and output word report automatically;
This transformer oil withstand voltage tester is multi-functional, stable, and easy for operation
II.Specifications:
| No. | Parameters | Specifications |
| 1 | Output voltage | AC 0V~80KV or 0~100KV |
| 2 | Rate of voltage rise | 0.5kv/s± 5%, 2kv/s± 5%, 3kv/s± 5%, 5kv/s± 5% |
| 3 | Max. test times | 9 |
| 4 | Stir time | 0~999s |
| 5 | Wait time | 0~999s |
| 6 | Measurement accuracy | ±(1% of full scale + 2 digits) |
| 7 | Resolution | 0.1KV |
| 8 | Temperature measurement range | 0°C to 70°C, or better |
| 9 | Temperature resolution | 1°C, or better |
| 10 | Data storage | 100 groups |
| 11 | Weight | 38kg |
| 12 | Size | 550 mm*500mm*580mm |
| 13 | Power supply | AC220V, 50Hz |
| 14 | Working environment | Room temperature to 45°C, humidity<85% |
