ASTM D113 Asphalt Ductility Testing Machine

ASTM D113 Asphalt Ductility Testing Machine

  • ASTM D113 Asphalt Ductility Testing Machine
  • ASTM D113 Asphalt Ductility Testing Machine
  • ASTM D113 Asphalt Ductility Testing Machine
ASTM D113 Asphalt Ductility Testing Machine
Product Details:
Place of Origin: China
Brand Name: YUYANG
Certification: ISO
Model Number: DT-I
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: USD6000
Packaging Details: plywood case
Delivery Time: 15 days
Supply Ability: 100 sets per month
Contact Now
Detailed Product Description
Keyword: Ductility Tester,ductilimeter,ductilometer Test Standard: Astm D113
Measuring Range: 1.5m(±10mm) Power Supply: AC220V(-5%~+10%),50Hz
Temperature Range: 5℃~49℃, Adjustable Total Power Consumption: 4100W
Test Sample: 3 PCS Warranty: 1 Year
High Light:

bitumen testing instruments

,

asphalt content tester

ASTM D113 Asphalt Ductility Tester Ductilometer Ducilimeter Apparatus



Summary
The ductility test machine is designed and made as per national standard GB/T 4508-2010 Standard Test Method for Ductility of Bitumen and T0605-2011 Asphalt Ductility Test in JTG E20-2011 Standard Test Methods for Bitumen and Bituminous Mixtures for Highway Engineering of People’s Republic of China. The method is applied to the GB/T 4508-2010 and T0605-2011 standards. Determination of petroleum asphalt under the predetermined conditions and in certain temperature, at a certain speed stretch to fracture length, called petroleum asphalt ductility, expressed in cm.

I. Main technical features
1. The ductility tester adopts humanized design philosophy. There is no leading screw, lead rail or other components in the test trough. The sample can be easily installed in and the maximum measurement distance can reach 1.5m.
2. This ductilometer adopts innovative transmission design. The stretching is stable and synchronous. There is no tremble and the speed is uniform.
3. This ductilimeter can test three specimens simultaneously. Suitable to the test standard for asphalt ductility.
4. The specimen can return and positioning automatically after the determination.

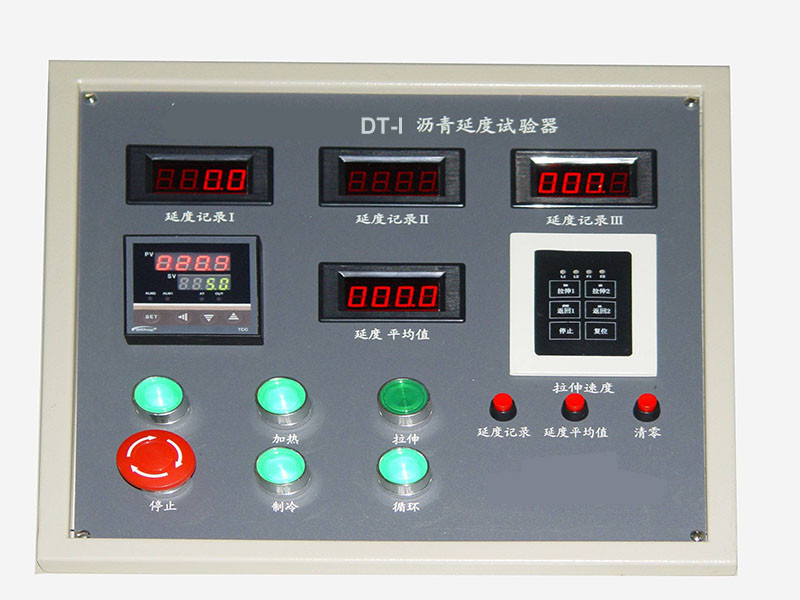

5. Light-touch panel. Water-proof.

II. Main technical specifications
1. Power supply: AC220V(-5%~+10%),50Hz
2. Measuring range: 1.5m(±10mm)
3. Heating mode: Electrical heating
4. Heating power: 3000W
5. Bath liquid circulation: Magnet pump
6. Temperature range: 5℃~49℃, adjustable,
Digital display, resolution 0.01℃
7. Temperature accuracy: ±0.1℃
8. Speed: 10 mm/min or 50mm/min. Two grades.
9. Measuring accuracy: ±1mm
12. Ambient temperature: -10℃~+35℃
13. RH: ≤85%
14. Overall dimension: 2365mm×520mm×1000mm
15. Maximum power consumption: 4100W



III.Accessories



No Item Unit Qty Remarks
1 Bitumen test module Piece 3



Put in the same case

2 Mould base Piece 3
3 Rod type thermometer(0~50℃, minimum scale division is 0.1 ℃) Piece 4
4 Socket(250V 32A,three-core) Piece 1 With bottom box
5 RL1-60/40A fuse Piece 4
6 Test module plate Piece 1

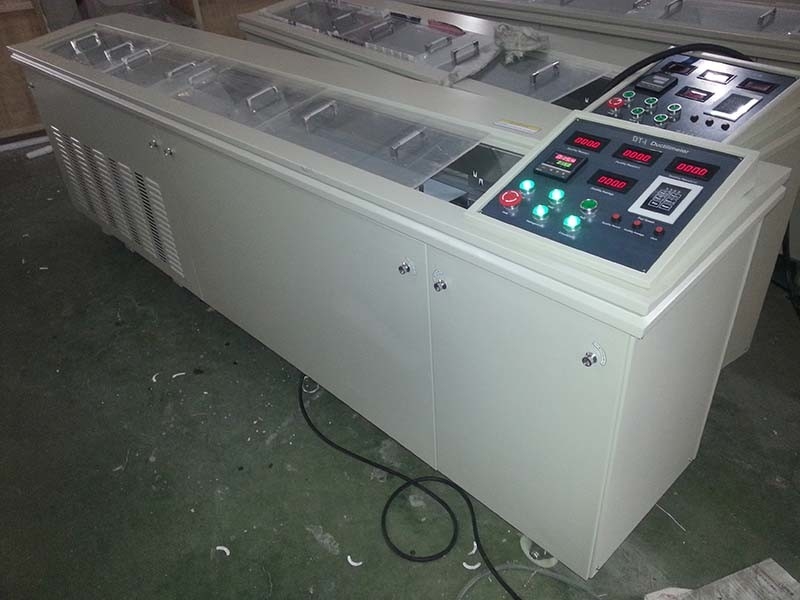

ASTM D113 Asphalt Ductility Testing Machine 0ASTM D113 Asphalt Ductility Testing Machine 1
