Wet Wheel Abrasion Testing Machine / Asphalt Lab Equipment Stable Structure

Wet Wheel Abrasion Testing Machine / Asphalt Lab Equipment Stable Structure

  • Wet Wheel Abrasion Testing Machine / Asphalt Lab Equipment Stable Structure
  • Wet Wheel Abrasion Testing Machine / Asphalt Lab Equipment Stable Structure
Wet Wheel Abrasion Testing Machine / Asphalt Lab Equipment Stable Structure
Product Details:
Place of Origin: CHINA
Brand Name: YUYANG
Certification: ISO
Model Number: WAA
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: USD10
Packaging Details: Plywood case
Delivery Time: 15 days
Supply Ability: 100 Sets per month
Contact Now
Detailed Product Description
Keyword: Wet Wheel Abrasion Tester Power Supply: AC380V, 50Hz, 380W
Motor Speed: 1400rpm Weight: 260kg
Size: 620mm × 500 Mm × 780mm Warranty: 1 Year
High Light:

asphalt laboratory equipment

,

asphalt content tester

Asphalt Test Apparatus Highway Lab Wet Wheel Abrasion Tester of Slurry Mixture

Summary
The wet wheel abrasion tester is in accordance with the people's Republic of China industry standard JTG E20-2011 Standard Test Methods for Bitumen and Bituminous Mixtures for Highway Engineering in T0752-2011 " Wet wheel abrasion tester of slurry mixture " provisions of the design and manufacture of it. Suitable for compatibility and resistance to water damage inspection after forming slurry seal mixture, can be tested together with the load wheel carrier to determine the best mix of asphalt content.

I. Main technical features
1. The abrasion test instrument is a floor structure, the design is novel, the structure is stable, and the use is convenient.
2. The structure design of the instrument, test apparatus of the specifications of the size are accord with the requirement of T0752 standard.

II. Main technical specifications
1 Motor speed 1400rpm
2 Grinding head rotation speed 140rpm
3 Grinding head revolution speed 61rpm
4 Grinding head quality 2.27kg (quality of work)
5 Grinding head rubber tube length L 127mm
6 Timing performance 5 minutes timed
7 Dimension 620mm × 500 mm × 780mm (length × width × height)
8 Body weight 260kg
9 Working power AC380V, 50Hz, 380W (three-phase four-wire system, with zero line).

III. Optional accessories
1. Balance: Weighing 6000g, the sense of it not more than 0.1g;
2. Oven: With forced ventilation, temperature can be controlled at (60 ± 3) ℃;
3. Constant temperature water bath: low-temperature water bath.

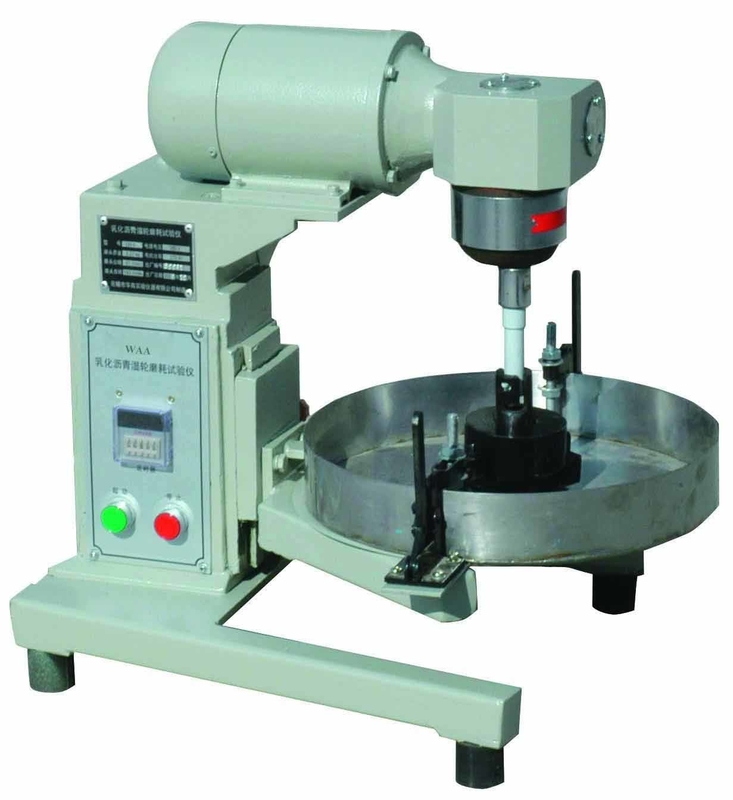

Wet Wheel Abrasion Testing Machine / Asphalt Lab Equipment Stable Structure 0

Tag:

bitumen testing instruments,

asphalt laboratory equipment,

asphalt content tester
