Pc Controlled Fire Propagation Apparatus , Walls And Ceilings Flame Spread Test

Pc Controlled Fire Propagation Apparatus , Walls And Ceilings Flame Spread Test

  • Pc Controlled Fire Propagation Apparatus , Walls And Ceilings Flame Spread Test
  • Pc Controlled Fire Propagation Apparatus , Walls And Ceilings Flame Spread Test
  • Pc Controlled Fire Propagation Apparatus , Walls And Ceilings Flame Spread Test
  • Pc Controlled Fire Propagation Apparatus , Walls And Ceilings Flame Spread Test
Pc Controlled Fire Propagation Apparatus , Walls And Ceilings Flame Spread Test
Product Details:
Place of Origin: CHINA
Brand Name: YUYANG
Certification: ISO
Model Number: FPT
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiation
Packaging Details: Plywood case
Delivery Time: 30 days
Supply Ability: 10 Sets per Month
Contact Now
Detailed Product Description
Test Standard: BS476-6 Usage: Fire Propagation Index Test
Test Object: Wall,ceiling,lamination Etc Color: White
Operation: PC Controlled Warranty: 1 Year
Keyward: Fire Propogation Index Test Apparatus Conditon: New
High Light:

smoke density test apparatus

,

fire test chamber

Please email to Sandy@yuyangtest.com if you need details.

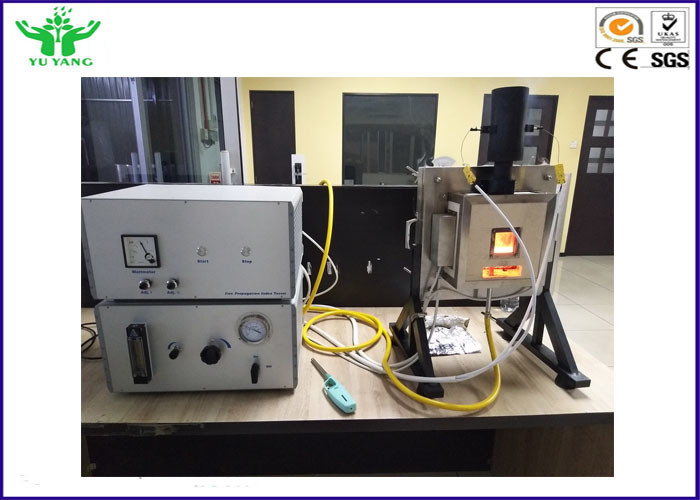

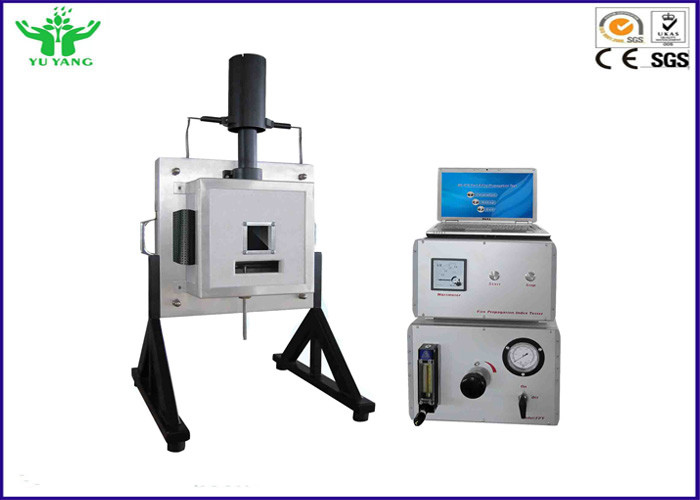

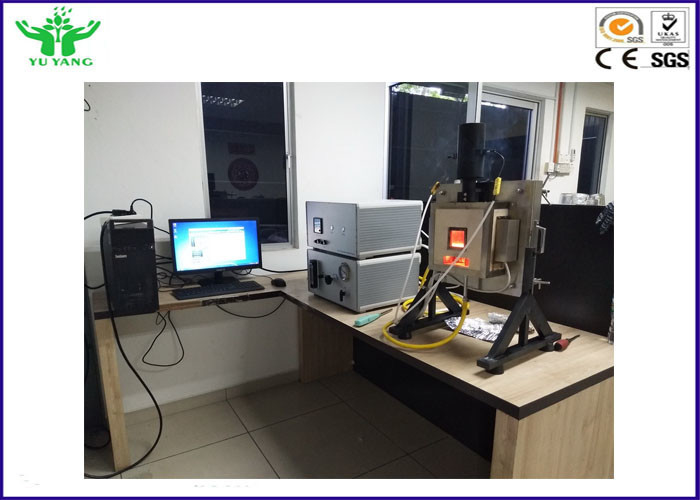

BS476 Part 6 Fire Propagation Index Test Apparatus for Walls and Ceilings



Introduction

  1. BS 476-6 is a test method of measuring the flame propagation properties of materials, primarily for fire protection performance evaluation of the walls and ceilings, measurement results are expressed as an index of flame propagation.
  2. During the test, the specimen is exposed to the tubular torch, heat release of the lamp is 530J / S. 2 minutes and 45 secondslater, the two electric heater was adjusted to 1800 watts in total, 5 minutes after starting the test, reduced the power to 1500 watts, keep the power not changed until finishing the experiment, the total test time is 20 minutes.
  3. To assess the flame propagation index of the material to be tested in BS476-6 apparatus, thermocouple continuous recording chimney temperature and room temperature difference, and compared the results with the calibration curve, calibration curve based on the provisions of the density of asbestos - cement slab in the same measured way.
  4. Comparing the temperature difference value of two curves which measured at the same time. In the first three minutes of the test, take the temperature difference value every 30 seconds, in the following 4-10 minutes, take the temperature difference value every one minute. In the last 11-20 minutes, take the temperature difference value every two minutes. Theflame spread index of these three periods are calculated according to formula.
  5. I is the value of sum of the three periods flame spread index. The higher of I value, the lower the material flame retardant, 0 grade material I≤12.

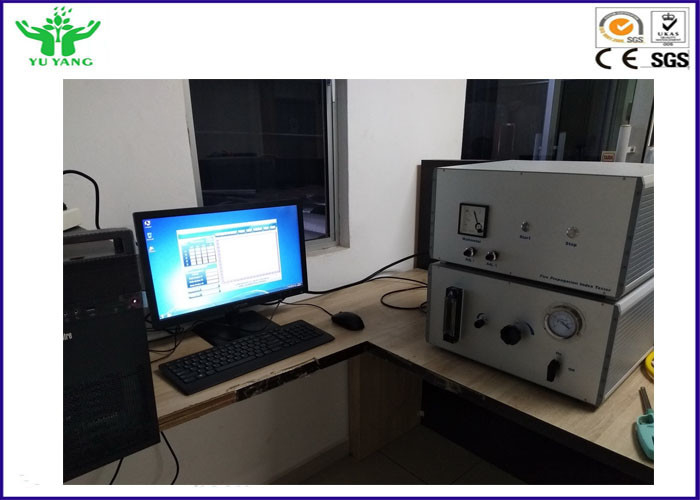

Data Acquisition system:

  • BS476-6 appratus is designed with prompted software interface

  • This test equipment can record data and display cowl temperature against time

  • Fire propagation index tester can also record data and display ambient temperature against time

  • Display of power value in kW

  • Calibration routine

  • Calculation of output rise and calibration value



Feature

  • Stainless steel support frame andCalcium silicate board combustion chamber.

  • Three kinds of sample holders for different thickness of the specimens.

  • Low reflective black finished mild steel Chimney and Cowl assembly complete with thermocouple mounting points.

  • Compliant stainless steel gas burner.

  • Two K type mineral insulated thermocouples complete with ceramic insulators.

  • Two pencil type heaters with 1000w installed in combustion chamber.

  • Control gas instrumentation including electronic gas on/off valve, flow regulating valve, flow meter and manometer.

  • Intelligent single phase power controller with feedback loop for accurate control of electric heating elements

  • DAQ record automatically the mV output from the thermocouples of the flue gases throughout the duration of the test.

  • According to the test time, BS476-6 test apparatus can automatically adjust the output power.

Installation requirements of BS476-6 Fire Propagation Index Test Apparatus

1 Electrical 230 volts Nominal 10 Amps
2 Ambient Temperature Operating 10°C to 35°C
3 Gas Supplies The gas supply specified in the Standard is Standard test gas G112, as specified in BS 4947.
4 Flow Gas flow for burner adjustable from 0 to 5 nl/min
5 Pressure 1kPa
