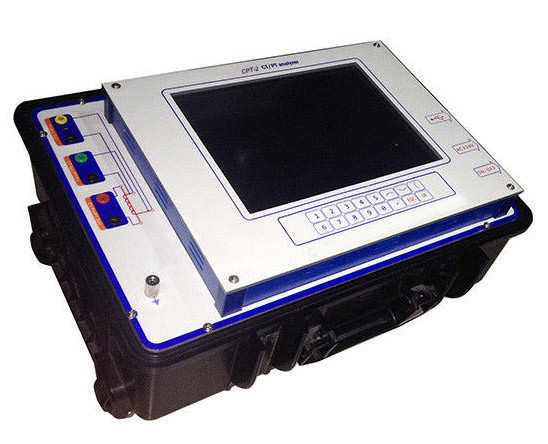

Ct Current Transformer Electrical Test Set , Touch Screen Ct Testing Equipment

Ct Current Transformer Electrical Test Set , Touch Screen Ct Testing Equipment

  • Ct Current Transformer Electrical Test Set , Touch Screen Ct Testing Equipment
  • Ct Current Transformer Electrical Test Set , Touch Screen Ct Testing Equipment
  • Ct Current Transformer Electrical Test Set , Touch Screen Ct Testing Equipment
  • Ct Current Transformer Electrical Test Set , Touch Screen Ct Testing Equipment
  • Ct Current Transformer Electrical Test Set , Touch Screen Ct Testing Equipment
Ct Current Transformer Electrical Test Set , Touch Screen Ct Testing Equipment
Product Details:
Place of Origin: China
Brand Name: YUYANG
Certification: CE
Model Number: CPT-3
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Plywood case
Delivery Time: 15 days
Supply Ability: 100 sets per month
Contact Now
Detailed Product Description
Keyword: CT Current Transformer Tester Test Standard: IEC60044-1, IEC60044-6, IEC60044-2, IEC60044-5, C57.13

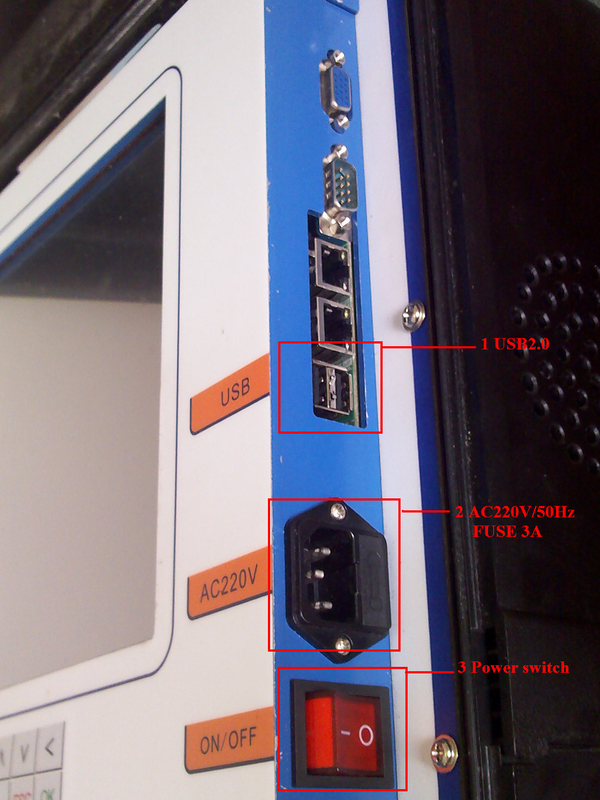

Power Supply: AC220V±10%, 50/60Hz±10% Display: LCD Touch Screen
Memory Capacity: >1000 Groups Software: English
Test Object: Ct Current Transformer Warranty: 1 Year
Size: 485mm×356mm×183mm Weight: 15kg
High Light:

electrical test equipment

,

electrical test kit

CT Tester CT Analyzer CT Testing Equipment Electrical CT Test Set





Tester for current transformer:

1.Excitation curve and parameters test
2.Turns ratio test
3. Ratio and phase error test
4. Polarity mark check
5. Coil resistance measurement
6. Secondary loop burden measurement
7. Error line curve test for protection CT
8. Transient CT parameters test
9. CT nameplate guess
10.Saturation hysteresis loop curve measurement



Applications of CT Current Transformer Tester:

1 CT nameplate check
2 CT parameters check in work burden
3 CT transient parameters analysis

4 CT ratio and phase error calibration



Specifications:

Item Name CT Current Transformer Tester
Test standards IEC60044-1, IEC60044-6, IEC60044-2, IEC60044-5, C57.13
Power supply AC220V±10%, 50/60Hz±10%
Voltage output 0.1~125V (AC)
Current output 0.001~5A(RMS)
Power output 300VA
Max. knee voltage measurement 45KV
Current measurement

Range 0~10A (automatically change range in 0.1/0.4/2/10A)
Error <±0.1%+0.01%FS



Voltage measurement Range 0~200V (automatically change range in 1V/10V/70V/200V)
Error < ±0.1%+0.01%FS
Turns ratio measurement Range 1~35000
1~2000, error<0.05%
2000~5000,error<0.1%
5000~35000,error<0.2%
Phase measurement error ±2min
resolution 0.01min
Coil resistance measurement Range 0~80Ω (automatically change range in 2ohm/20ohm/80ohm)
Error < 0.2%RDG+0.02%FS
Maximum resolution : 0.1mΩ
Temperature measurement -50~100 Celsius degree; error<3 Celsius degree
CT Secondary burden Range 0~160ohm (automatically change range in 2ohm/20ohm/80ohm/160ohm)
Error <0.2%RDG+0.02%FS
Maximum resolution : 0.001ohm
Memory capacity >1000 groups test results
Working condition temperature -10℃~50℃; moist ≤90%
