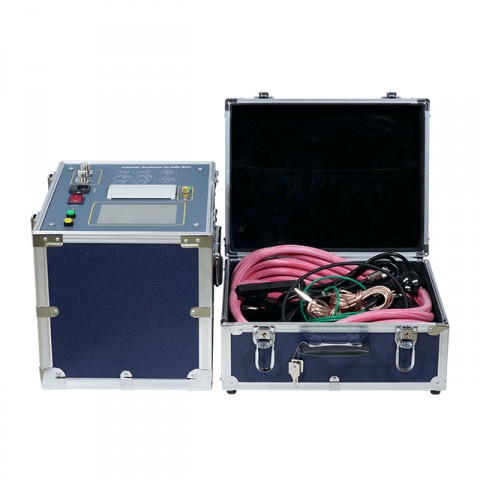

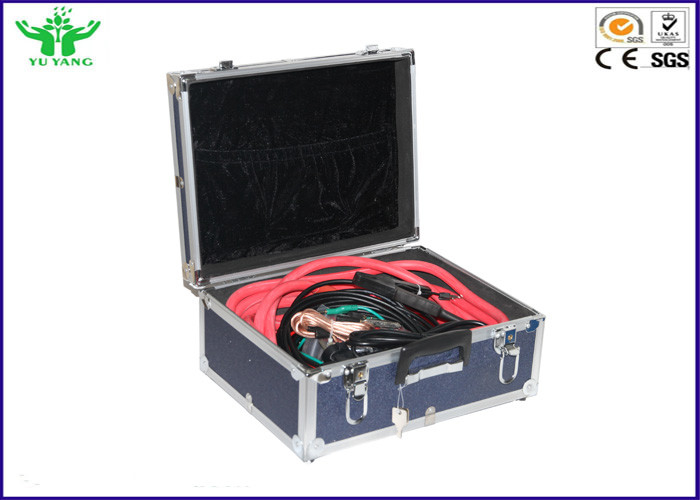

0.5KV - 10KV Electrical Test Set Tan Delta And Capacitance Diagnostic System

0.5KV - 10KV Electrical Test Set Tan Delta And Capacitance Diagnostic System

  • 0.5KV - 10KV Electrical Test Set Tan Delta And Capacitance Diagnostic System
  • 0.5KV - 10KV Electrical Test Set Tan Delta And Capacitance Diagnostic System
  • 0.5KV - 10KV Electrical Test Set Tan Delta And Capacitance Diagnostic System
  • 0.5KV - 10KV Electrical Test Set Tan Delta And Capacitance Diagnostic System
0.5KV - 10KV Electrical Test Set Tan Delta And Capacitance Diagnostic System
Product Details:
Place of Origin: CHINA
Brand Name: YUYANG
Certification: ISO
Model Number: TDT
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Plywood case
Delivery Time: 15 days
Supply Ability: 100 sets per month
Contact Now
Detailed Product Description
Keyword: Tan Delta And Capacitance Diagnostic System Size: 350×270×270mm
Weight: 28KG Measurig Range: 0.5KV~10KV
CVT Range: 10~10000 Warranty: 1 Year
High Light:

electrical test equipment

,

electrical test kit

Tan Delta and Capacitance Diagnostic System



I.Introduction:

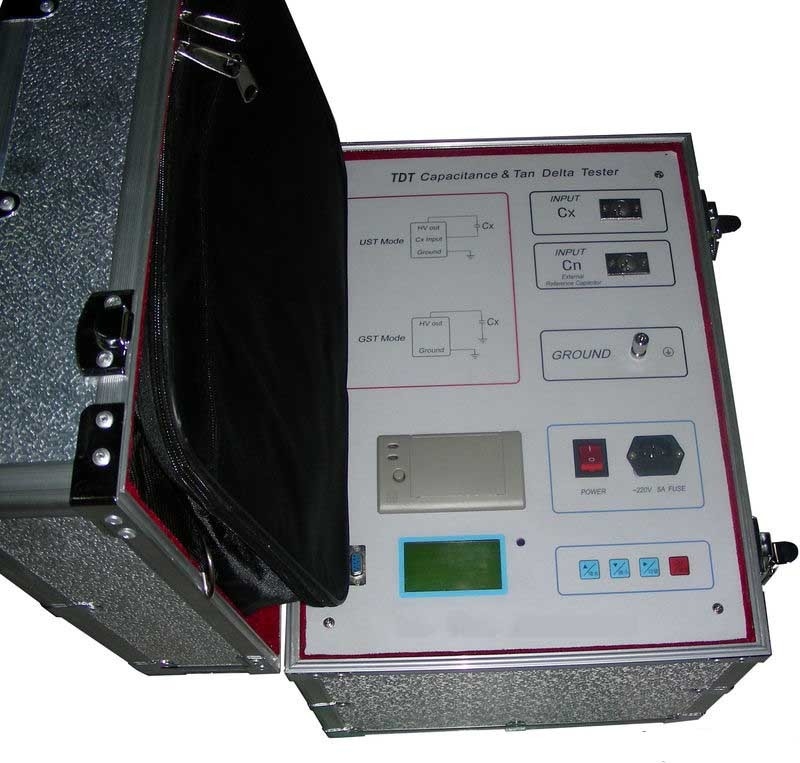

TDT Transformer Capacitance and Tangent Delta Diagnostic System is an integrated structure, there is a dielectric loss test bridge, a variable frequency power supply, a step-up transformer and a SF6 high stability standard capacitor built-in;

This capacitance and tan delta test set can also supply high voltage source for testing.

Frequency can be changed to 50Hz, 47.5Hz52.5Hz,45Hz55Hz, 60Hz, 57.5Hz62.5Hz, 55Hz65Hz; thus, this power factor tester can avoid interference of power frequency;

This tan delta analyzer can also be used as power supply;


II.Specifications:

No. Item Name Automatic Transformer Power Factor Tester,10KV Capacitance and tan delta test set,dielectric loss tester,tan delta analyzer
1 Use conditions -15℃~40℃ RH<80%
2 Anti-interference Frequency conversion
3 Power AC 220V±10% Allowable generator
4 High output 0.5KV~10KV Every 0.1kV
Precision 2%
Maximum current 200mA
Capacity 2000VA
5 Self-excited power AC 0V~50V/15A

45HZ/55HZ 47.5HZ/52.5HZ

55HZ/65HZ 57.5HZ/62.5HZ

Automatic double frequency

6 Resolving power tgδ: 0.001% Cx: 0.001pF
7 Precision tgδ:(Reading*1.0%+0.040%)
Cx :(Reading*1.0%+1.00PF)
8 measuring range tgδ Unlimited
Cx 15pF < Cx < 300nF
  10KV Cx < 60 nF
  5KV Cx < 150 nF
  1KV Cx < 300 nF
CVT test Cx < 300 nF
9 CVT range 10~10000
accuracy 0.1%
Resolving power 0.01
10 Dimension 350*270*270mm
11 Memory size The 200 group supports U disk data storage
12 Weight

28 Kg
