NF P92-505 Flame Test Equipment Thermal Radiation Dripping Test Apparatus For Melting Materials

NF P92-505 Flame Test Equipment Thermal Radiation Dripping Test Apparatus For Melting Materials

  • NF P92-505 Flame Test Equipment Thermal Radiation Dripping Test Apparatus For Melting Materials
  • NF P92-505 Flame Test Equipment Thermal Radiation Dripping Test Apparatus For Melting Materials
NF P92-505 Flame Test Equipment Thermal Radiation Dripping Test Apparatus For Melting Materials
Product Details:
Place of Origin: CHINA
Brand Name: YUYANG
Certification: ISO
Model Number: NF505
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Plywood case
Delivery Time: 30 days
Supply Ability: 5 sets
Contact Now
Detailed Product Description
Test Standard: NF P92-505,EU 95/28/EC,ECE R118 Annex 7 Application Field: Electerical,Rail,Automotive Interior
Size: 520mm(W)X 650mm(H)X 350mm(D) Weight: 29KG
Color: White Electrical: 110 To 230 V 10 Amps
Ambient Temperature: Operating 10°C To 35°C Warranty: 1 Year
High Light:

flammability test apparatus

,

flammability test chamber

NF P92-505 Flame Test Equipment Thermal Radiation Dripping Test Apparatus For Melting Material



Introduction



This thermal radiation dripping tester meets international standards NF P92-505, EU 95/28 / EC, ECE technical specifications and requirements of R118 Annex 7 of these Regulations. According to NF P 92-505 request, the test is additional test for M-class building materials.

It is suitable for hot melt material effect in the primary heat source to evaluate the performance of dripping and burning performance testing. Flexible and thin materials can be tested





Standards:

  • NF P92-505

  • EU 95/28/EC

  • ECE R118 Annex 7





Features

1, All fixtures are made of stainless steel material, appearance nice and corrosion resistance;

2, Radiation bracket can be rotated, the rotation angle is greater than 90 degrees and easy to install the sample;

3, Sample installation height can be adjusted;

4, Electric power radiators

5, The radiant heat radiator can be adjusted linear through the power control automatic adjustment;

6, The radiation shield is a quartz glass and the opening diameter is 100mm ± 5mm;

7, The heat radiation reach to to 3W / cm³ the position 30mm from the radiation shield plane.

8, Sample holder ring is made of stainless steel and the inner diameter is 118mm;

9, Take off the plate inner diameter is 118mm, depth 12mm, internal plug of cotton



Installation requirements of NF P92-505 Thermal Radiation Dripping Tester

Electrical 110V AC 60Hz / 230V AC 50Hz
​Ambient Temperature Operating 10°C to 35°C

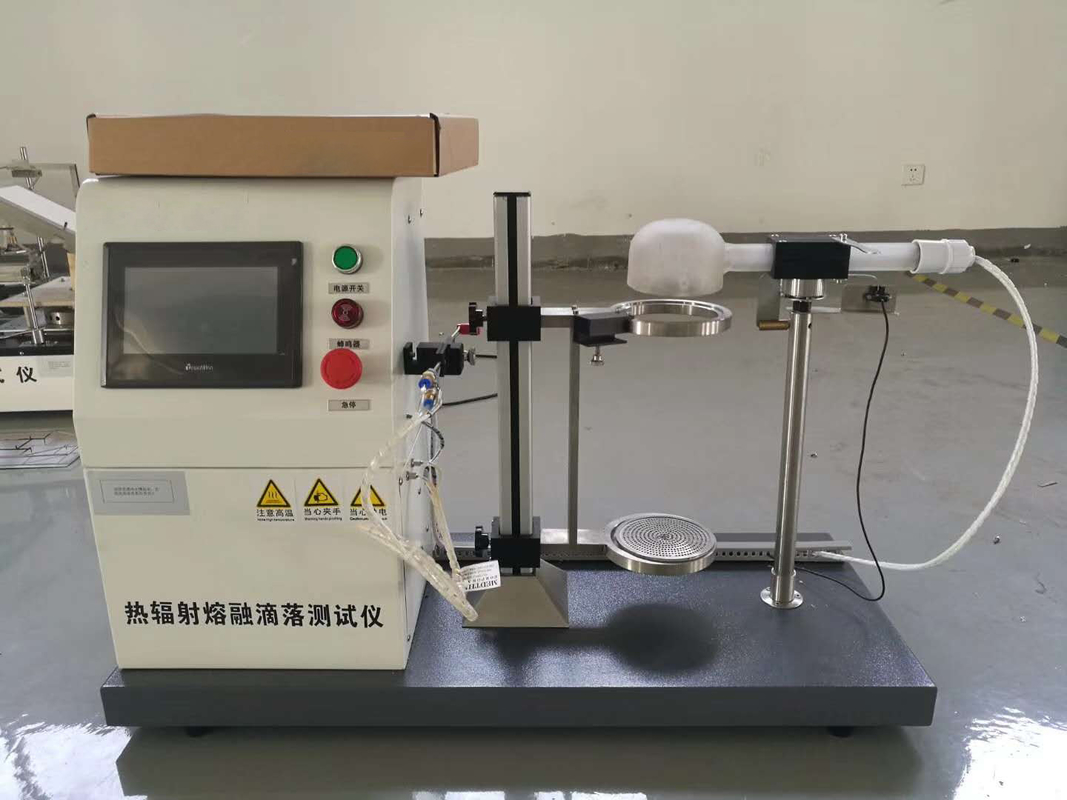

NF P92-505 Flame Test Equipment Thermal Radiation Dripping Test Apparatus For Melting Materials 0
