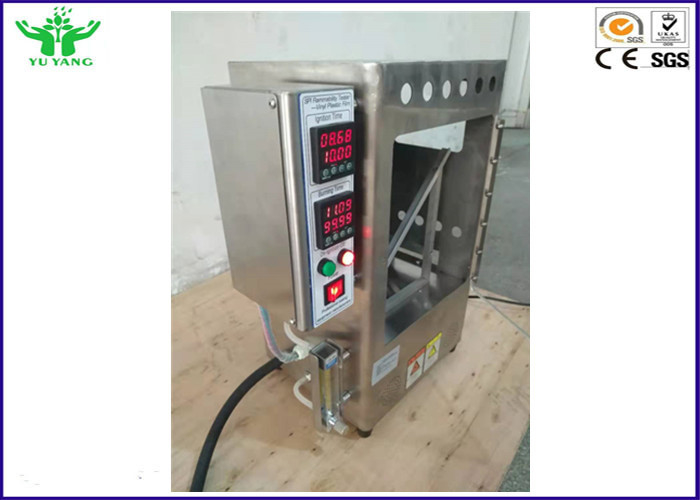

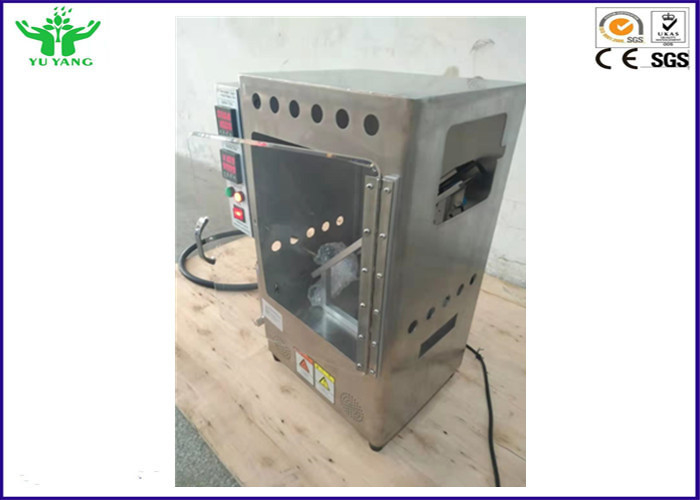

CPSC 16 CFR Part 1611 SPI Flammability Tester Vinyl Plastic Film AC 220V 50Hz 3A

CPSC 16 CFR Part 1611 SPI Flammability Tester Vinyl Plastic Film AC 220V 50Hz 3A

  • CPSC 16 CFR Part 1611 SPI Flammability Tester Vinyl Plastic Film AC 220V 50Hz 3A
  • CPSC 16 CFR Part 1611 SPI Flammability Tester Vinyl Plastic Film AC 220V 50Hz 3A
  • CPSC 16 CFR Part 1611 SPI Flammability Tester Vinyl Plastic Film AC 220V 50Hz 3A
  • CPSC 16 CFR Part 1611 SPI Flammability Tester Vinyl Plastic Film AC 220V 50Hz 3A
CPSC 16 CFR Part 1611 SPI Flammability Tester Vinyl Plastic Film AC 220V 50Hz 3A
Product Details:
Place of Origin: China
Brand Name: YUYANG
Certification: (CPSC)16 CFR Part 1611
Model Number: YYF025
Payment & Shipping Terms:
Packaging Details: Plywood Box
Delivery Time: 5-8 work days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 10 sets/month
Contact Now
Detailed Product Description
Mark Line Spacing: 6” Istance Of Burner From Sample Surface: 9/16”
 Flame Length: 1/2” Fuel Gas: Butane
Sample Size: 3”x9” Power Source: 1∮ AC 220V 50Hz 3A
High Light:

flame test equipment

,

flammability test apparatus

(CPSC)16 CFR Part 1611 SPI Flammability Tester - Vinyl Plastic Film



(CPSC)16 CFR Part 1611 SPI Flammability Tester - Vinyl Plastic Film 1∮ AC 220V 50Hz 3A



Application:

This instrument is suitable for testing the flame retardant property of polyethylene plastic film materials. The testing scope is mainly non-rigid and unsupported polyethylene plastic film materials, including transparent, translucent and opaque materials.Includes flat, convex, cast or surface-treated materials.



Principle:

Under prescribed conditions, sample with fixture clamping, the Angle of 45 ° inclined to put, specimen ignition, record of sample spacing on 45 degrees of bevel to 6 'burning time, burning rate to calculate sample.



Standard:

(CPSC)16 CFR Part 1611



Parameter



Project Specification

   Test chamber



30cmX25cmX37cm,There are five 20mm air holes on each side of left and right sides

 Sample holder 45°
Sample fixture

Length 11 ", width 4 15/16", slot width 1 1/2 ", 1 "end bending length, width of 3 7/8", bending Angle 45 °

   Mark line spacing

6”

   Distance of burner from                 sample    surface

9/16”
Flame length 1/2”
fuel gas Butane
Sample size 3”x9”
Volume(WxDxH) 46x29x52cm
Weight(about) ≈20Kg
Power source  1∮ AC 220V 50Hz 3A





Operation steps:

Matters to be confirmed before operation:

1.1 Confirm whether the power supply meets the requirements

1.2 Make sure there is enough gas in the tank

1.3 Confirm whether the pipeline is damaged or leaking



CPSC 16 CFR Part 1611 SPI Flammability Tester Vinyl Plastic Film AC 220V 50Hz 3A 0CPSC 16 CFR Part 1611 SPI Flammability Tester Vinyl Plastic Film AC 220V 50Hz 3A 1CPSC 16 CFR Part 1611 SPI Flammability Tester Vinyl Plastic Film AC 220V 50Hz 3A 2
