Contact Heat Transmission Tester For Protective Clothing And Material 500℃ ISO 12127 / EN 702

Contact Heat Transmission Tester For Protective Clothing And Material 500℃ ISO 12127 / EN 702

  • Contact Heat Transmission Tester For Protective Clothing And Material 500℃ ISO 12127 / EN 702
  • Contact Heat Transmission Tester For Protective Clothing And Material 500℃ ISO 12127 / EN 702
  • Contact Heat Transmission Tester For Protective Clothing And Material 500℃ ISO 12127 / EN 702
  • Contact Heat Transmission Tester For Protective Clothing And Material 500℃ ISO 12127 / EN 702
Contact Heat Transmission Tester For Protective Clothing And Material 500℃ ISO 12127 / EN 702
Product Details:
Place of Origin: China
Brand Name: YUYANG
Certification: ISO 12127, EN 702, ISO 15025
Model Number: YY159
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Plywood Box
Delivery Time: 25 work days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 4 sets per quarter
Contact Now
Detailed Product Description
Product Name: Flammability Testing Equipment Usage: Protective Clothing Heat Transmission Tester
Standard: ISO 12127, EN 702, ISO 15025 Sample Holder Lifting Speed: 5mm ± 0.2mm/s
Thermocouple Diameter: 2mm Power: 230V, 50HZ
Size: 650mm X 350 Mm X 650mm Specimen Diameter: 80mm
High Light:

flame test equipment

,

flammability test apparatus





500℃ ISO 12127 / EN 702 Contact Heat Transmission Tester for Protective Clothing and Material



Description:



Heat Transmission Tester for fire protection clothing is designed according to ISO12127-2007 and EN702.

The teser uses the heating cylinder to provide a constant temperature in contact with the sample under certain load and a calorimeter to measure the heat transfer properties.

It is easy to operate, the data is accurate, safe and reliable, widely used in fire protective clothing related companies and inspection departments





Standards:



ISO 12127: Clothing for protection against heat and flame -- Determination of contact heat transmission through protective clothing or constituent materials -- Part 1: Test method using contact heat produced by heating cylinder
EN 702: Protection against heat and flame. Test method. Determination of the contact heat transmission through protective clothing or its materials

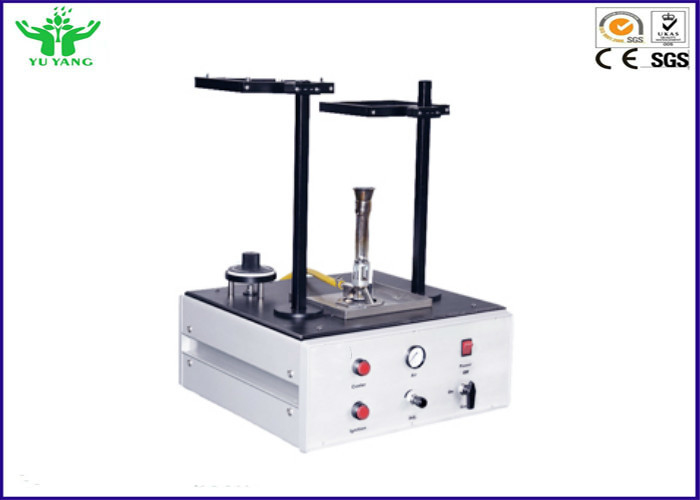

ISO 15025:Protective clothing -- Protection against flame -- Method of test for limited flame spread





Feature:



1. Simple control interface with touch-screen is easy to operate.

2. Automatically controlled testing procedure by testing software.

3. Movable heating cylinder is convenient for sample installing and ensures the safe testing conditions.

4. Automatically recording contact temperature, start time, threshold time and relative data.





Specification:



1. The device is consists of a control box and stainless steel test gantry;
2. The sample holder is automatic lifting, the lifting speed is 5mm ± 0.2mm / s
3.The K type sheathed thermocouples, diameter 2mm, temperature measurement accuracy of 0.1 ℃;
4. The heating barrel temperature is greater than 500 ℃; the contact surface of the sample diameter 25.2 ± 0.05mm
5. The barrel heating load weight 49N, can be adjusted;
6. Timer scope 99999s; timing accuracy 0.1s;
7. Calorimeter fixed disk diameter 25mm, thickness 5mm; and assembly platinum resistance temperature sensor;
8. Support frame material is nylon 66; diameter 40mm height 50mm;
9. Specimen diameter 80mm;
10. PLC and touch screen for intelligent control system;
11. PID intelligent temperature control, the system automatically collect temperature data;
12. The system automatically calculates test data, automatic storage; can print freely;
13. The test table size: 650mm x 350 mm x 650mm;
14. Power supply 220V 50 / 60Hz, power 800w

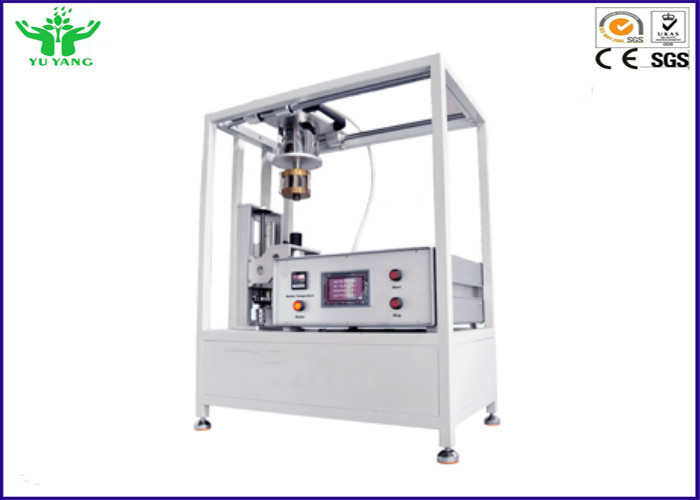

Contact Heat Transmission Tester For Protective Clothing And Material 500℃ ISO 12127 / EN 702 0

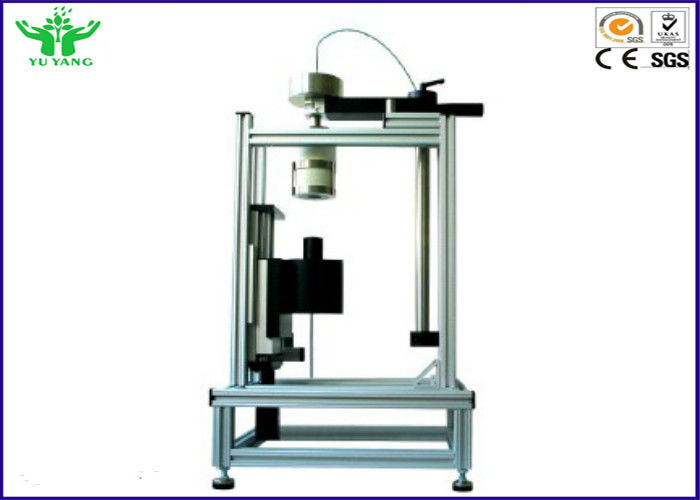

Contact Heat Transmission Tester For Protective Clothing And Material 500℃ ISO 12127 / EN 702 1
