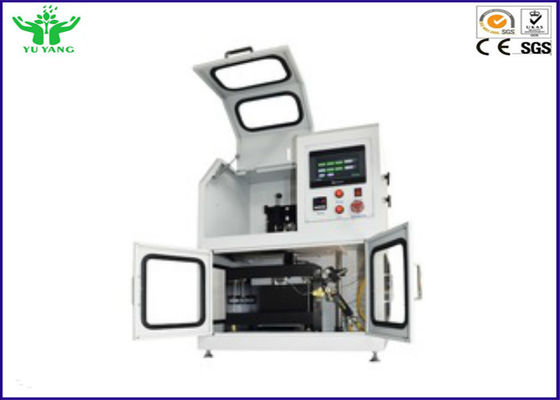

Protective Clothing Molten Metal Splashes Impact Resistance Tester 175g Loading ISO 9150 BS EN 348

Protective Clothing Molten Metal Splashes Impact Resistance Tester 175g Loading ISO 9150 BS EN 348

  • Protective Clothing Molten Metal Splashes Impact Resistance Tester 175g Loading ISO 9150 BS EN 348
  • Protective Clothing Molten Metal Splashes Impact Resistance Tester 175g Loading ISO 9150 BS EN 348
  • Protective Clothing Molten Metal Splashes Impact Resistance Tester 175g Loading ISO 9150 BS EN 348
  • Protective Clothing Molten Metal Splashes Impact Resistance Tester 175g Loading ISO 9150 BS EN 348
  • Protective Clothing Molten Metal Splashes Impact Resistance Tester 175g Loading ISO 9150 BS EN 348
Protective Clothing Molten Metal Splashes Impact Resistance Tester 175g Loading ISO 9150 BS EN 348
Product Details:
Place of Origin: China
Brand Name: YUYANG
Certification: EN 348, ISO 9150, ISO 11611, ISO 20349
Model Number: YY160
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Plywood Box
Delivery Time: 25 work days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 4 sets per quarter
Contact Now
Detailed Product Description
Product Name: Flammability Testing Equipment Usage: Molten Metal Splashes Impact Resistance Tester
Standard: EN 348, ISO 9150, ISO 11611, ISO 20349 Gas: Oxygen And Acetylene
Diameter Of Welding Burner: (1.2±0.1) Mm Loading Weight: 175g±0.5g
Size: 700mm×500mm×850mm Weight: 45kg
High Light:

flame test equipment

,

flammability test apparatus



175g Loading ISO 9150, BS EN 348 Protective Clothing Molten Metal Splashes Impact Resistance Tester





Description:



Molten metal small drops resistance tester or Molten metal splash tester is professional designed to evaluate the behavior of materials used for protective clothing of EN ISO 11611, EN ISO 20349 when such materials are struck by small liquid metal splashes which is designed according to EN 348 and ISO 9150. It is used to determine the protective performance of PPE (personal protective equipment) for wearer against small splashes of molten metal is often submitted to high thermal loads. The test machine can provide solid data for manufacturers or researchers to ensure the protective clothing’s protective function is resistance to heat transfer and useful to avoid the hazards that may cause human injury under conditions of use.





Standards:



EN 348: Protective clothing. Determination of behavior of materials on impact of small splashes of molten metal

ISO 9150: Protective clothing -- Determination of behavior of materials on impact of small splashes of molten metal

EN ISO 11611 Protective clothing for use in welding and allied processes

EN ISO 20349 Personal protective equipment - Footwear protecting against thermal risks and molten metal splashes as found in foundries and welding - Requirements and test method





Feature:



1. Drop guide to collect the drops and to guide them towards the vertically oriented test specimen.
2. Senor for measuring the temperature linked to a recording device.
3. Holding frame and counterweights for the test specimen.
4. Motor speed can be adjust so that the steel rod is fed at the rate of (10 f 1) g/mm.
5. Needle valves adjust the O2 and acetylene flow rate.
6. LCD Screen display and control the motor speed.

7. Coated appearance, beautiful.





Specification:



Item Detail
Gas Oxygen and Acetylene
Gas pressure Adjustable
Welding rod feed rate Adjustable
Diameter of welding burner (1.2±0.1) mm
Temperature measurement Temperature sensor
Loading weight 175g±0.5g
Power supply 220V 50Hz
Dimension 700mm×500mm×850mm
27.56inch×19.69inch×33.46inch
Net weight 45 kg
99.2lb



Protective Clothing Molten Metal Splashes Impact Resistance Tester 175g Loading ISO 9150 BS EN 348 0



Protective Clothing Molten Metal Splashes Impact Resistance Tester 175g Loading ISO 9150 BS EN 348 1



Protective Clothing Molten Metal Splashes Impact Resistance Tester 175g Loading ISO 9150 BS EN 348 2
