150J~500J Computerized Pendulum Charpy Impact Test Equipment ~-80℃ Or -40℃~-196℃

150J~500J Computerized Pendulum Charpy Impact Test Equipment ~-80℃ Or -40℃~-196℃

textile lab equipment

universal tensile machine

Place of Origin:

China

Brand Name:

YUYANG

Certification:

ASTM E23, ISO148-2006 ,GB/T3038-2002, GB/229-2007.

Model Number:

YYL041

Contact Us
Request A Quote
Product Details
Impact Energy::
300J, 150J, 250J, 500J
Impact Speed::
5.2m/s, 5.4m/s
Temperature Range::
Room Temperature~-80℃ Or -40℃~-196℃
Round Angle Of Support::
R1.0- 1.5mm
Round Angel Of Impact Knife::
R2.0- 2.5mm
Power Supply::
380V±10%, 50Hz
Highlight:

textile lab equipment

,

universal tensile machine

Payment & Shipping Terms
Packaging Details
wooden case
Delivery Time
3-5 work days
Payment Terms
L/C, T/T, Western Union
Supply Ability
200 sets/month
Product Description

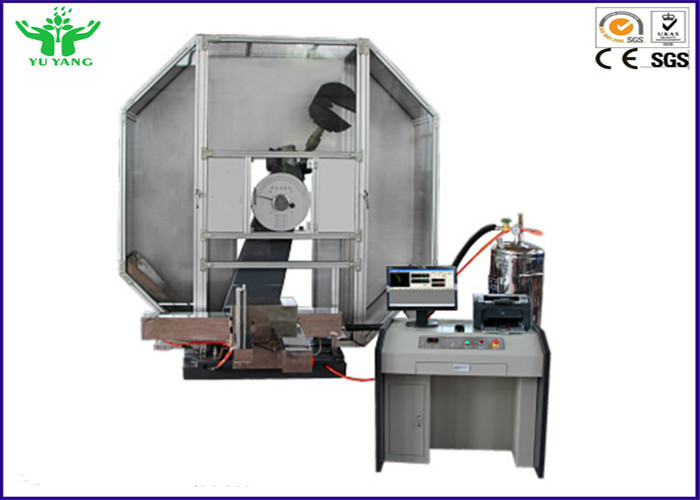

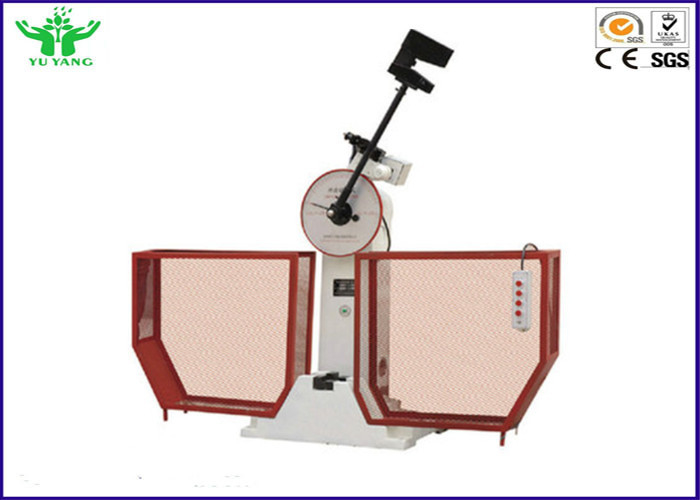

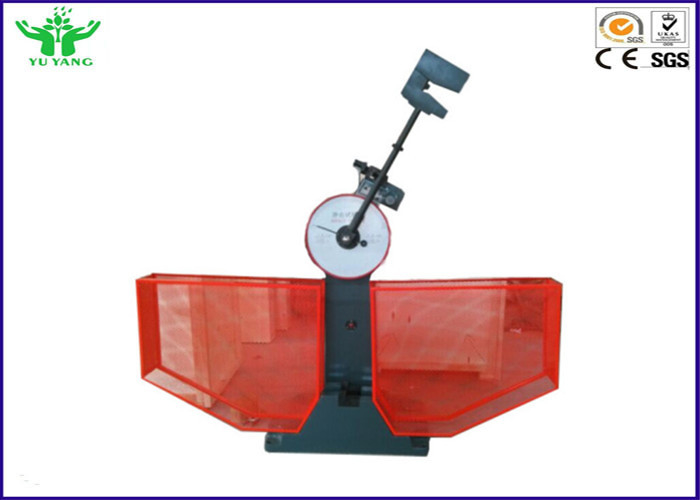

Computerized Pendulum Charpy Impact Test Equipment



150J~500J Computerized Pendulum Charpy Impact Test Equipment ~-80℃ or -40℃~-196℃



Introduction:

The machine can be used for the determination of anti-impact performance of metal materials when it is under dynamic loading, thus judged the quality of materials under dynamic loading. It is applicable for the laboratory, which does continuous compact tests, metallurgy, machinery manufacturing, and other industries.



Technical parameters:



Specifications YYL041-300C YYL041-500C YYL041-750C
Impact energy (J) 150,300 250,500 500,750
Impact velocity (m/s) 5.2 5.4 5.9
Raised angle 150º
Standard span (mm) 40
Distance between pendulum rotating center and specimen center (mm) 750
Round angle of jaws (mm) R1-1.5
Round angle of striking edge (mm) R2-2.5 or R8
Size of specimen (mm) 10 x 10 x 55
Power supply 3phs, 380V, 50Hz/60Hz or specified by users
Dimensions (mm) 2124 x 600 x 1340 2144 x 736 x 1390 2450 x 1200 x 2455
Net Weight (KG) 450 650 2300

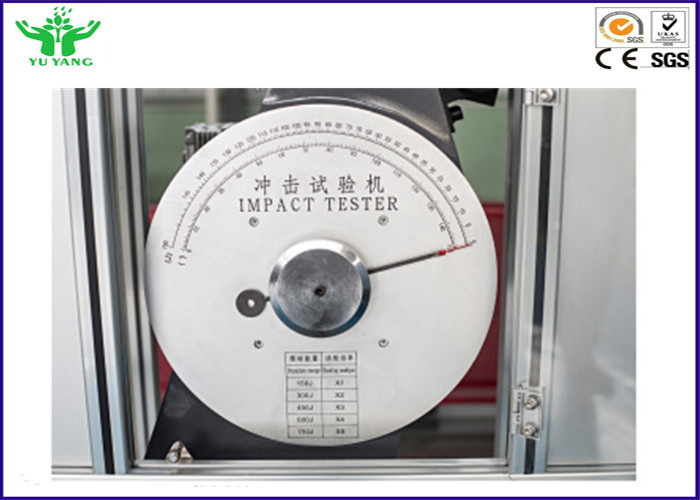

Display Computer, LCD, Dial





Function and Features:

The machine with the semi-automatic control, operates easily and efficiently. It uses the electric control the knife of impact to rise, impact and fall. Moreover, the machine can use the remaining energy to rise and fall to prepare the next test automatically after thrusting specimens.
