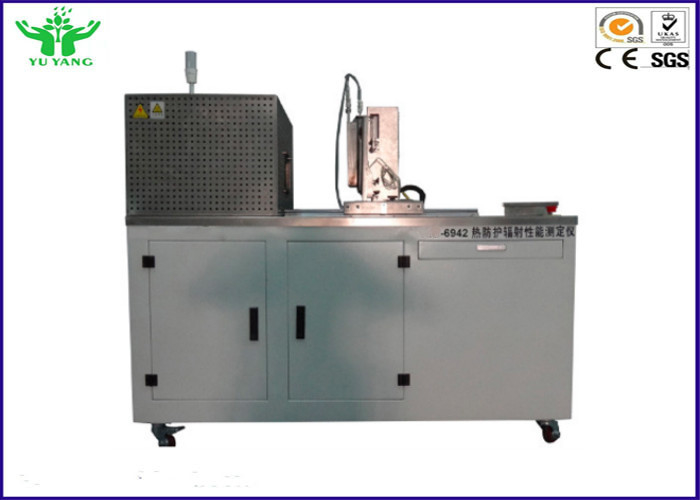

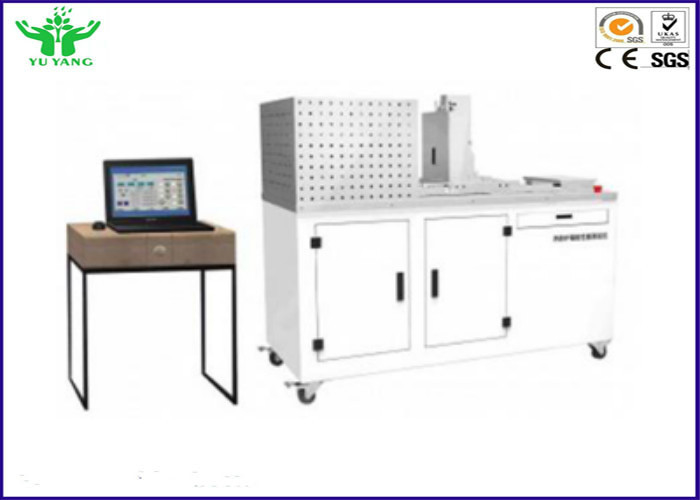

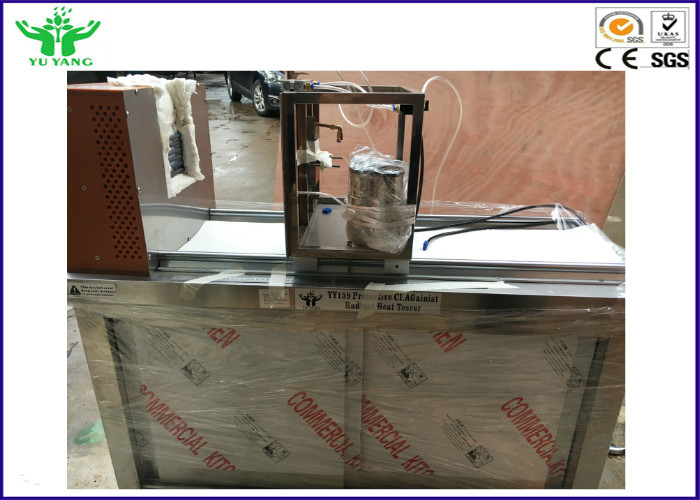

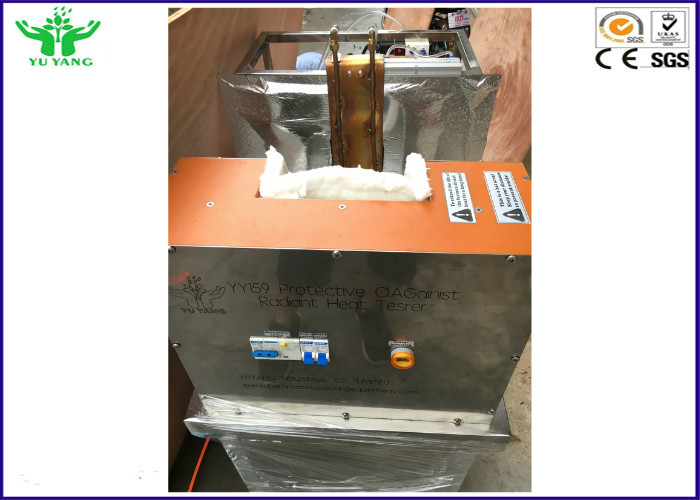

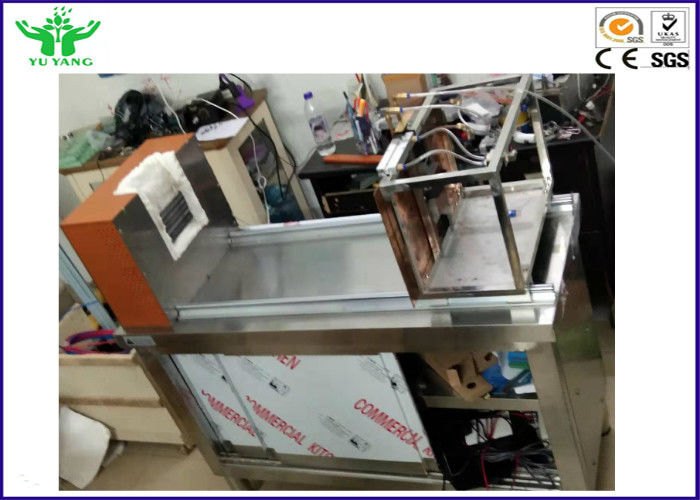

EN 366, ISO 6942 Protective Clothing Against Radiant Heat Testing Equipment

EN 366, ISO 6942 Protective Clothing Against Radiant Heat Testing Equipment

  • EN 366, ISO 6942 Protective Clothing Against Radiant Heat Testing Equipment
  • EN 366, ISO 6942 Protective Clothing Against Radiant Heat Testing Equipment
  • EN 366, ISO 6942 Protective Clothing Against Radiant Heat Testing Equipment
  • EN 366, ISO 6942 Protective Clothing Against Radiant Heat Testing Equipment
  • EN 366, ISO 6942 Protective Clothing Against Radiant Heat Testing Equipment
EN 366, ISO 6942 Protective Clothing Against Radiant Heat Testing Equipment
Product Details:
Place of Origin: China
Brand Name: YUYANG
Certification: ISO 6942, EN 366
Model Number: YY159
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Plywood box
Delivery Time: 20 work days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 5 sets per quarter
Contact Now
Detailed Product Description
Material: Stainless Steel Specimen Size: 230mm X 80mm
Heat Flux Density: 10kW/m2 ~ 80 KW/m2 Thermocouple Diameter: 0.25mm
Product Name: Flammability Testing Equipment Calorimeter Thickness: 1.6mm
Weight: 100kg Dimension: W1510×D650×H1220mm
High Light:

flame test equipment

,

flammability test apparatus



EN 366, ISO 6942 Protective Clothing Against Radiant Heat Testing Equipment



Description:



This Protection Against Radiant Heat Test Equipment is designed according to ISO6942 and EN366.

The test equipment has a user-friendly, intuitive, Windows-based application that provides a complete thermal control, fault detection and data recording. RPP system configuration and burn prediction also included in the Thermo DAC.

User-defined test allows the operator to define non-standard test conditions and custom tolerances. You can view multiple graphs display with zoom feature to view specific conditions in details.

Real-time statistics can be applied to the test data within any user selected time range.

This Protection Against Radiant Heat Test Equipment is used for performance evaluation against heat and flame protective clothing when faced with short flame thermal motion. Imposed certain calorie density (80KW/m ² ± 5%) of heat, under the specimens that composed of protective clothing. When measuring the growth rate of heat through over time (time: seconds, temperature: ºC) by heat meter that installed on test sample, to determine the insulation properties of sample materials.

This Protection Against Radiant Heat Test Equipment is also applied to measure the fabric of single-layer or multi-layer under high temperature thermal radiation properties, and fire-retardant insulation of plates.





Standards:



EN 366: Protective clothing. Protection against heat and fire. Method of test: evaluation of materials and material assemblies when exposed to a source of radiant heat.

ISO 6942: specifies two complementary methods (method A and method B) for determining the behavior of materials for heat protective clothing subjected to heat radiation.





Features:


1, The Protection Against Radiant Heat Test Equipment consists of radiation device, the specimen clamping device and control system;
2, Stainless steel frame structure, appearance, corrosion resistance, easy to clean;
3, Specimen size: 230mm x 80mm;
4, Radiation source is made up of 5 infrared quartz lamp, power 500W, and provide at least 80kW/m2radiant heat;
5, Standard copper heat flow meter, heat measuring range 0~100kw/m2;
6, A cooling device (cooling water inlet);
7, Intelligent water circulation control system;
8, The water temperature alarm function; ensure the safe operation and test stability;
9, Computer control system; to achieve more intelligent test and easy to operate;
10, Timer accuracy is 1s;
11, Constantan thermocouple: measurement Accuracy 0.1 ºC, meet the design requirements of ISO 6942
12, Metal protection shutters, with water cooling device;
13, Computer records and displays real-time continuous temperature curve;
14, Automatic operation mode, test time can be set freely.
15, According to ISO 6942-2002 (EN366) standards, there are two methods to test the thermal protection.
The first method (A method) is a specimen to withstand a certain amount of heat radiation, recording changes in appearance in order to reproduce the material the inclement conditions.
The second method (B method) is a calorimeter inside a specimen back, when heat conduction from samples back, recording temperature trends over time, in order to determine the level of thermal radiation transfer.





Specification:



Thermocouple

Copper, Constantan (T); diameter: 0.25mm

Calorimeter

Copper Specifications: Thickness 1.6 mm; purity: 99.95%

Press Release Plate

Specification:149×149×6t mm(center:φ90mm hole)weight:264±13g

Heat flux density

10kW/m2 ~ 80 kW/m2 adjustable;

Thermal radiation temperature control

Room temperature ~ 1200ºC ± 5ºC (display accuracy of 1ºC; having PID smart regulation Controller

Thermal radiation temperature sensor

Thermocouple (0 ~ 100ºC)

Circulating pump

HQB-3900/100W/220V/50Hz

Operating platform

Windows operating systems;

Flame shield plate

Operation: manual/automatic front pulled way;
Material: heat-resistant inorganic-based thermal materials

Power

AC 220V 50Hz

Outline dimension

W1510×D650×H1220mm

Weight

About 200kg
