IEC 60695-2-20 Hot Wire Ignition Test Apparatus Hot Wire Ignition Tester 5.28Ω/M

IEC 60695-2-20 Hot Wire Ignition Test Apparatus Hot Wire Ignition Tester 5.28Ω/M

  • IEC 60695-2-20 Hot Wire Ignition Test Apparatus Hot Wire Ignition Tester 5.28Ω/M
  • IEC 60695-2-20 Hot Wire Ignition Test Apparatus Hot Wire Ignition Tester 5.28Ω/M
  • IEC 60695-2-20 Hot Wire Ignition Test Apparatus Hot Wire Ignition Tester 5.28Ω/M
  • IEC 60695-2-20 Hot Wire Ignition Test Apparatus Hot Wire Ignition Tester 5.28Ω/M
IEC 60695-2-20 Hot Wire Ignition Test Apparatus Hot Wire Ignition Tester 5.28Ω/M
Product Details:
Place of Origin: China
Brand Name: YUYANG
Certification: GB4943 - 2001,IEC60950:1999,IEC60695-2-20,UL60950,ASTM D3874 – 1997
Model Number: YYF050
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: Plywood Box
Delivery Time: 5-8 days
Payment Terms: L/C, T/T, D/A, D/P, Western Union
Supply Ability: 100/Sets/Month
Contact Now
Detailed Product Description
Cold Resistance:: 5.28Ω/m Temperature Range:: 0~ 1000 °C± 2 °C Continuous Adjustable
Heating Coil:: Dia 0.5mm, Ni80/Cr20 Anneal Holder Distance:: 250mm
Annealing Time And Power:: 8s~12s
High Light:

flame test equipment

,

flammability test apparatus

IEC 60695-2-20 Hot Wire Ignition Test Apparatus Hot wire ignition tester



Application:

It is suitable for electric and electronic products, household appliance materials to do ignition dangerous test. It simulates the heat source or ignition source of simulates glow component and overload resistance which may cause thermal stress in a short time.Hot-wire coil ignition test adopts the specific size (Dia: 0.5mm; Length: 250mm) and specific material (Ni80/Cr20) of heater strip which is pre-annealed with required heating power (0.26W/mm) and specified time (8s~12s). Then coil heater strip on the specimen for 5 cycles according to certain wire wrapping tension (5.4N) and certain wire wrapping distance (6.35mm). Then take the specimen with wrapping heater strip to test until 120s under the stipulate heating power (0.26W/mm) the users can judge the fire risk according to whether the specimen ignite and the ignite time.

Parameter:

Length: 250mm±5mm
Heating coil dia: 0.5mm, Ni80/Cr20
old Resistance: 5.28Ω/m
Specimen holder distance and height: 70mm
Height: 60mm
Annealing time and power: 8s~12s
Wire wrapping tension and its distance: 5.4N±0.05N, 6.3mm±0.2mm



Specifications:

Anneal holder distance: 250mm

Specimen holder distance and height: 70mm

Height: 60mm (The distance from stand surface to the connector plate surface)

Wire wrapping tension and its distance: 5.4N±0.05N, 6.3mm±0.2mm (within 31.5mm±0.5mm, coil 5 cycle, national standard is 6mm)

Annealing time and power: 8s~12s (Digital display can be preset). 0.26W/mm±4%( Digital display is adjustable)

Testing time and power 120s ( 1s~999.9s Digital display can be preset),0.26W/mm±4%(Digital display is adjustable)



Standard:

GB4943 - 2001,IEC60950:1999,IEC60695-2-20,UL60950,ASTM D3874 1997

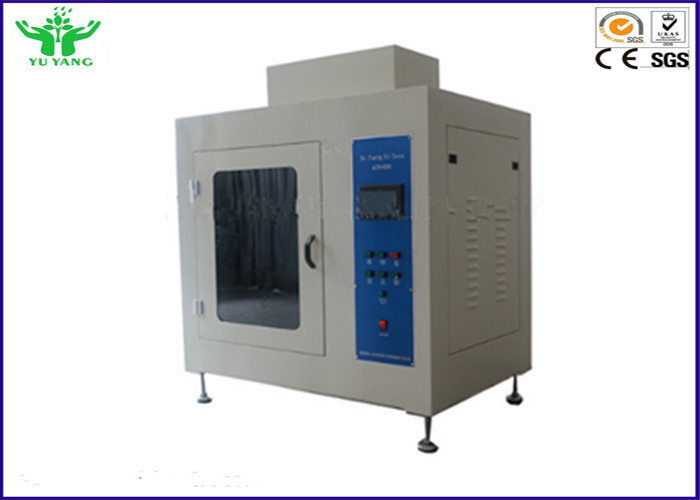

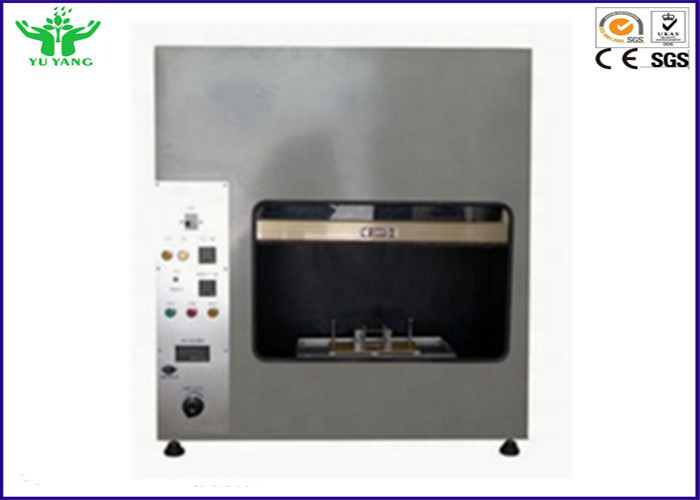

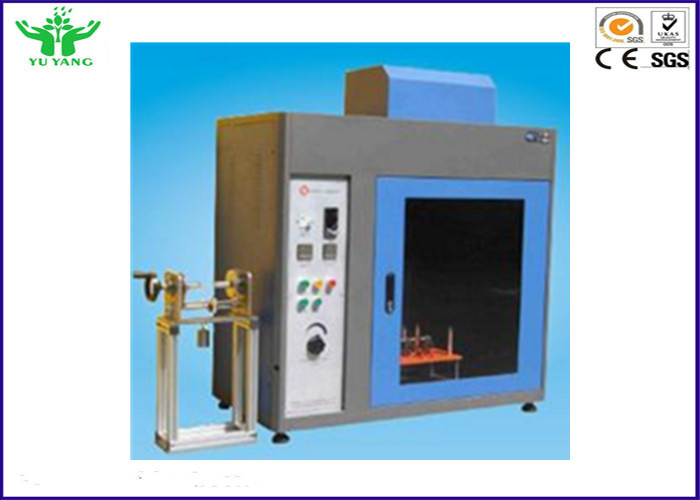

IEC 60695-2-20 Hot Wire Ignition Test Apparatus Hot Wire Ignition Tester 5.28Ω/M 0IEC 60695-2-20 Hot Wire Ignition Test Apparatus Hot Wire Ignition Tester 5.28Ω/M 1IEC 60695-2-20 Hot Wire Ignition Test Apparatus Hot Wire Ignition Tester 5.28Ω/M 2
