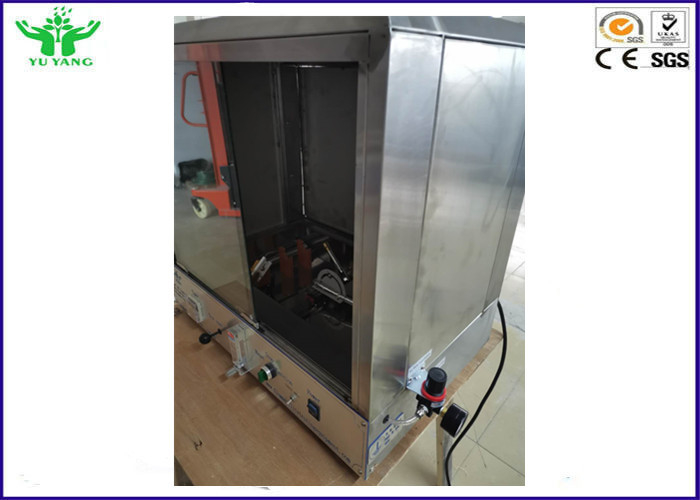

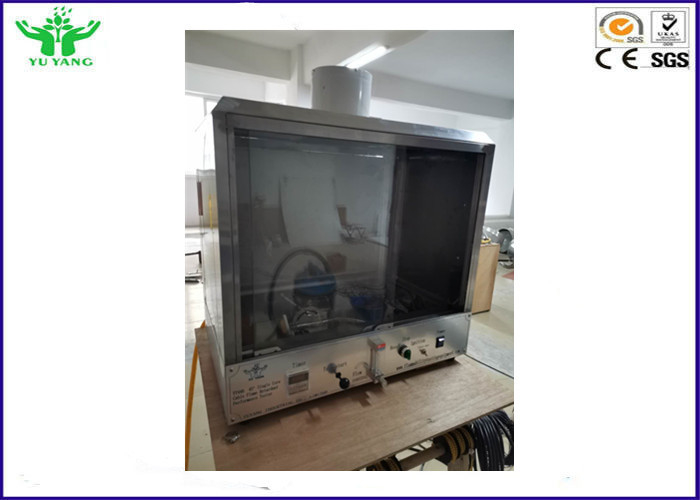

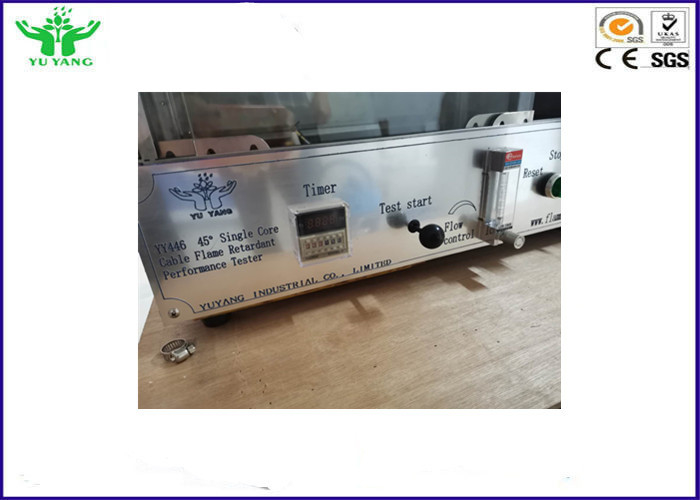

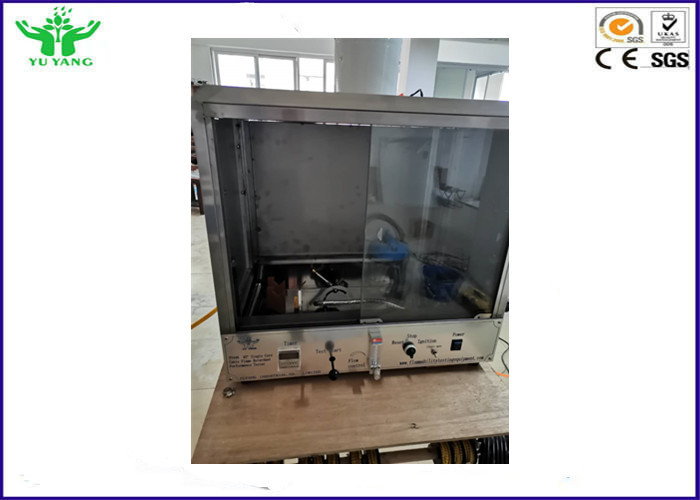

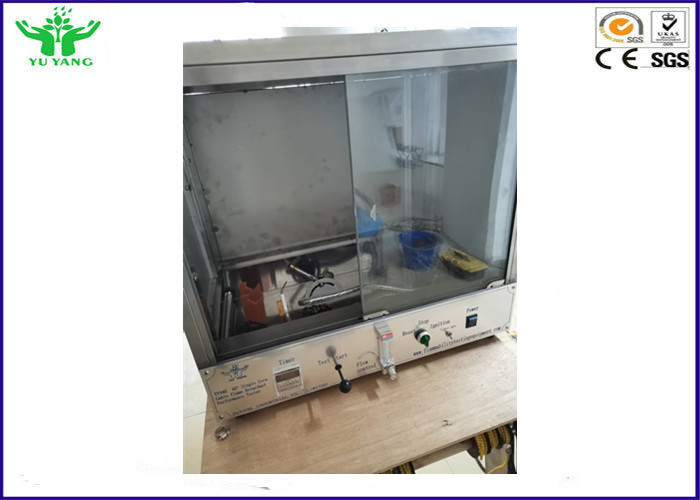

45° Single Core Cable Flame Retardant Performance Testing Equipment
Application:
It is used for road vehicles 60V and 600V tilt secondary standard resistance of single core cable, car with
no shielding level flame retardant in low pressure test method standard, time standard and international
automobile wire used for assessment of the performance of the cable in the combustion state, test both
ends fixed and perpendicular to the three sides is a metal plate metal mask, the torch lit, make the tip of
the blue inner cone in 50 mm away from the sample bottom place, want to contact on the sample surface,
and the sample surface contact, sample and horizontal tilt 45 ℃.
Standard:
ISO 6722-1 Road vehicles -- 60 V and 600 V single-core cables -- Part 1: Dimensions, test methods and
requirements for copper conductor cables
GB/T 25085 Road Vehicles – 60V and 600V
Parameter:
1. Metal cover: the electric cabinet and the metal cover are combined together, SUS304 stainless steel;

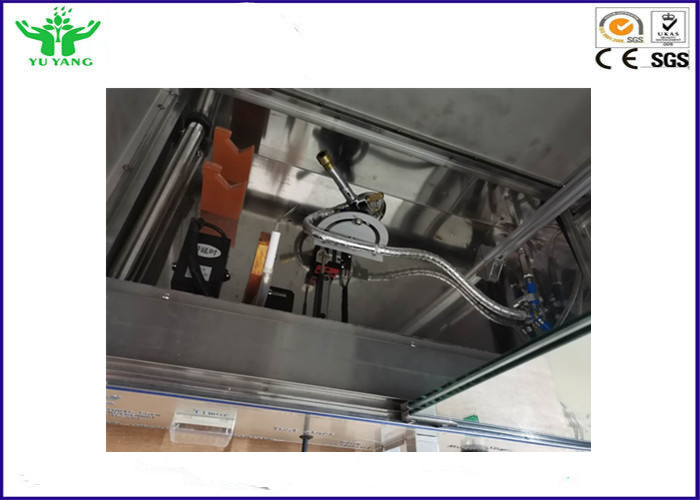

2. Combustion burner: the import of American hamburger with diameter of 9 mm, burning flame high is
100 mm, inner blue cone for flame length of 50 mm;
3. Set the burning time reaches the preset time, the machine will automatically stop;
4. Ignition for automatic high pressure ignition;
5. Rotor flow agent: 0.1 L ~ 1 L/min ;
6. Demission: L640*W430*H610mm ;
7. Power supply: AC220V 50/60 HZ 1A;
8. Gas source: propane or natural gas.
