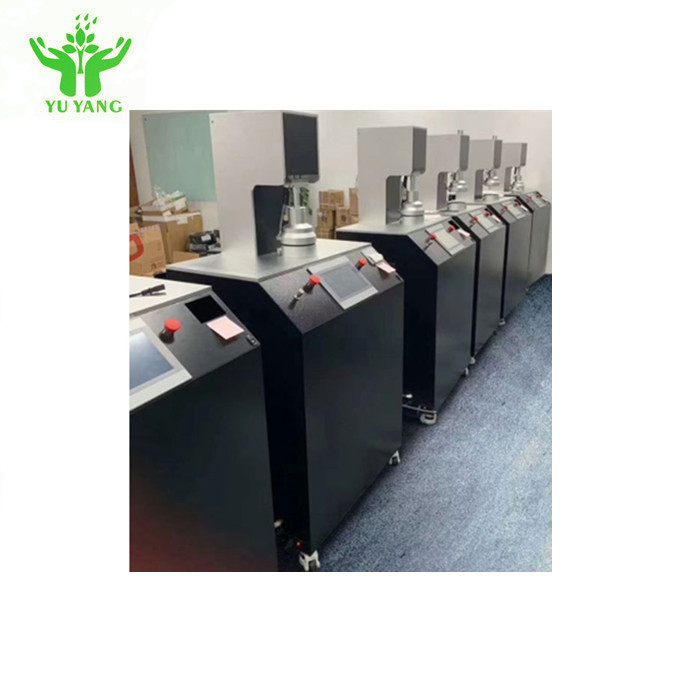

Stable Detection Facial Particle Filter Tester (PFE) GB/T 19083-2010 5.4

Stable Detection Facial Particle Filter Tester (PFE) GB/T 19083-2010 5.4

  • Stable Detection Facial Particle Filter Tester (PFE) GB/T 19083-2010 5.4
  • Stable Detection Facial Particle Filter Tester (PFE) GB/T 19083-2010 5.4
  • Stable Detection Facial Particle Filter Tester (PFE) GB/T 19083-2010 5.4
Stable Detection Facial Particle Filter Tester (PFE) GB/T 19083-2010 5.4
Product Details:
Place of Origin: CHINA
Brand Name: YUYANG
Certification: ISO13485
Model Number: YYE032
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: negotiation
Packaging Details: Wooden Box
Delivery Time: 1-3 WORK DAYS
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 500 SETS A MONTH
Contact Now
Detailed Product Description
Product Name: Facial Particle Filter Tester Standard: GB/T 19083-2010 5.4
Power: AC 220V Weight: 120kg
Test Flow Range: 15L / Min ~ 100L / Min, Accuracy 2% Transport Package:: Wooden Case
High Light:

flame test equipment


flammability test apparatus

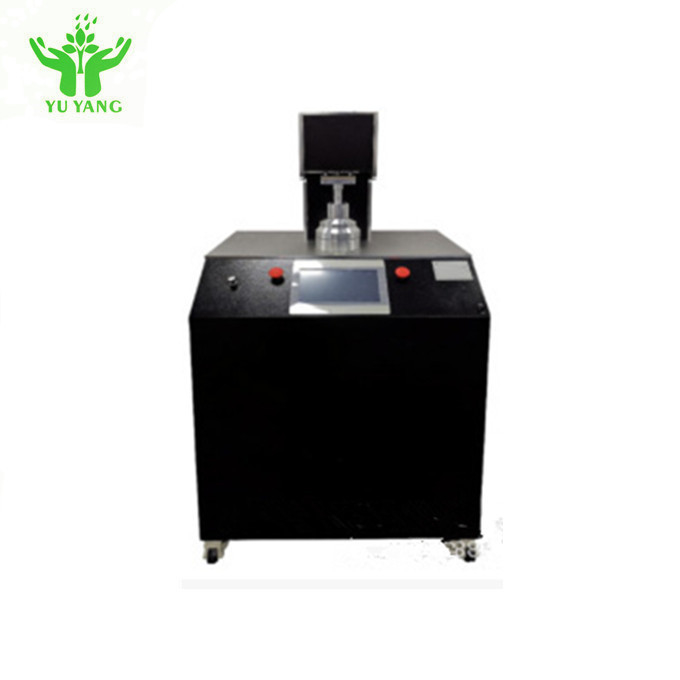

YYE032 Facial Particle Filter Tester (PFE)


Product Introduction Description

Particulate Filtration Efficiency Tester is suitable for fast, accurate and stable detection of particulate filtering efficiency of various medical and daily protective masks, respirators, etc.


Instrument Characteristics


  1. Efficiency detection: The brand high-precision dust particle counter is used to detect the concentration of upstream and downstream particles to ensure accurate and stable sampling;
  2. Flow detection: The system test flow mainly provides dry and clean compressed air from the outside. There is a voltage-stabilizing and stabilizing device installed inside to ensure the stability of the detection flow, and the automatic control system is simple, fast and stable.
  3. Aerosol generation: The Collision multi-nozzle design enables salt and oil testing on the same instrument to ensure fast and stable adjustment of the fogging concentration;
  4. Test results; Equipped with a 7-inch touch display screen, the test results are directly displayed on the interface, the user can choose to directly or save the data;
  5. Data port: external memory card, can export data, do not worry about data loss;
  6. Resistance test: The resistance pressure difference of the filter material will be obtained through the static pressure ring of its upstream and downstream test chambers, and a high-precision imported brand pressure difference transmitter is used to ensure the accuracy and stability of the pressure difference;
  7. Simple operation: The user only needs to place the filter paper in the fixture, press the button, and after adjusting the test flow, the system will automatically test the resistance and efficiency through the controller (PLC).




Test flow range 15L / min ~ 100L / min, accuracy 2%
The cross-sectional area through which the air flows 100cm²
Resistance test range 0 ~ 1000Pa, accuracy can reach 0.1Pa
Filtering efficiency test range 0 ~ 99.999%, resolution 0.001%
Est particle size 0.3um
Aeroso Sodium chloride concentration Salinity 10mg / m '~ 25mg / m,Oily 50mg / m ~ 200mg / m
Fog dust source NaC1, DEHS
Test time resistance is tested separately for 5s, and efficiency and resistance are tested simultaneously for 70s
Structural composition particle generator, flow detection device, concentration detection device
Number of samples 1
Power 220V, 50Hz, 1KW
Dimensions L800xW600xH1650mm
Weight 120Kg approx


 Stable Detection Facial Particle Filter Tester (PFE) GB/T 19083-2010 5.4 0
