Medical Respirator Mask Particulate Filter Tester YY/T 0469-2011 5.6.2

Medical Respirator Mask Particulate Filter Tester YY/T 0469-2011 5.6.2

  • Medical Respirator Mask Particulate Filter Tester  YY/T 0469-2011 5.6.2
  • Medical Respirator Mask Particulate Filter Tester  YY/T 0469-2011 5.6.2
  • Medical Respirator Mask Particulate Filter Tester  YY/T 0469-2011 5.6.2
Medical Respirator Mask Particulate Filter Tester  YY/T 0469-2011 5.6.2
Product Details:
Place of Origin: CHINA
Brand Name: YUYANG
Certification: GB/T 19083-2010 5.4, YY/T 0469-2011 5.6.2
Model Number: YYE032
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: negotiation
Packaging Details: Wooden Box
Delivery Time: 1-3 WORK DAYS
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 500 SETS A MONTH
Contact Now
Detailed Product Description
Weight: 120kg Standards: GB/T 19083-2010 5.4, YY/T 0469-2011 5.6.2
Dimensions: 800X600X1650mm(L*W*H) Power: AC 220V/50HZ
Warranty: 1 Year Color: Silvery White
High Light:

flame test equipment

,

flammability test apparatus

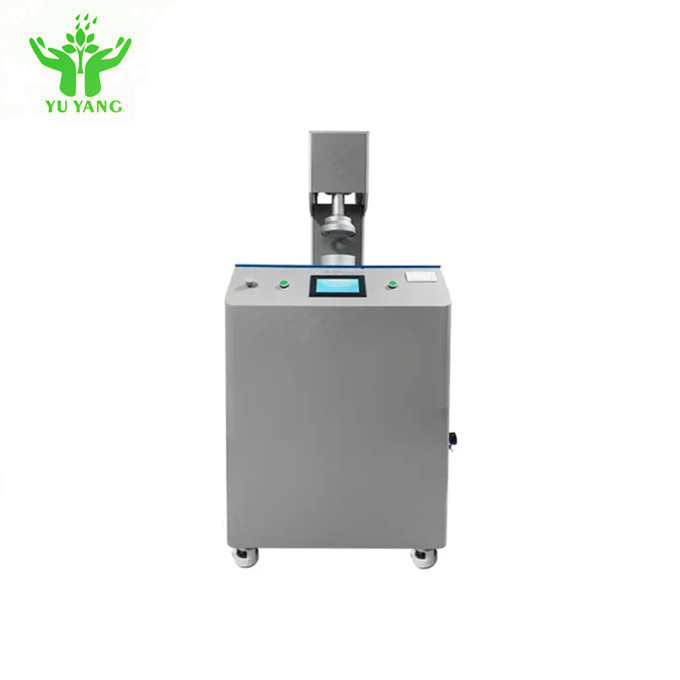

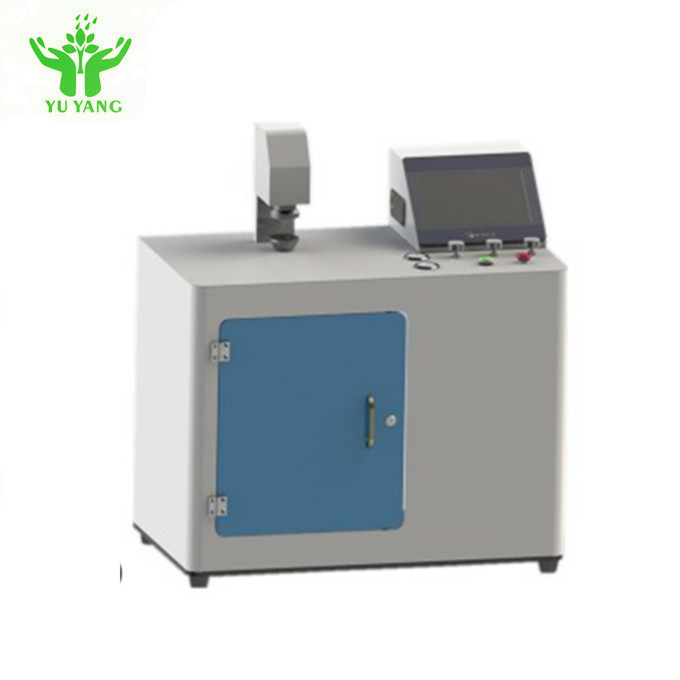

Medical Respirator Mask Particulate Filter Tester(PFE)



Product Introduction Description:




Particulate Filtration Efficiency Tester is suitable for fast, accurate and stable detection of particulate filtering efficiency of various medical and daily protective masks, respirators, etc.

Surgical mask performance testing machine Applicable Scope:




Used for testing the filtration efficiency of medical, daily mask, filter material and other particulate matter.





Testing Standard:


GB/T 19083-2010 5.4
YY/T 0469-2011 5.6.2
GB/T 32610-2016
GB 2626-2019 6.3
GB 19082-2009 5.7
EN 1822-3:2012 EN 149-2001
EN 14683:2005 IEST-RP-CC021.1 NIOSH 42 CFR Part 84 ect.

Instrument Characteristics:

  1. Efficiency detection: The brand high-precision dust particle counter is used to detect the concentration of upstream and downstream particles to ensure accurate and stable sampling;
  2. Flow detection: The system test flow mainly provides dry and clean compressed air from the outside. There is a voltage-stabilizing and stabilizing device installed inside to ensure the stability of the detection flow, and the automatic control system is simple, fast and stable.
  3. Aerosol generation: The Collision multi-nozzle design enables salt and oil testing on the same instrument to ensure fast and stable adjustment of the fogging concentration;
  4. Test results; Equipped with a 7-inch touch display screen, the test results are directly displayed on the interface, the user can choose to directly or save the data;
  5. Data port: external memory card, can export data, do not worry about data loss;
  6. Resistance test: The resistance pressure difference of the filter material will be obtained through the static pressure ring of its upstream and downstream test chambers, and a high-precision imported brand pressure difference transmitter is used to ensure the accuracy and stability of the pressure difference;
  7. Simple operation: The user only needs to place the filter paper in the fixture, press the button, and after adjusting the test flow, the system will automatically test the resistance and efficiency through the controller (PLC).

Specification



Detector photometer
Air volume (20~100) L/min
Efficiency 0%-99.99999%
Test time 14S
Loading efficiency 10%-99.999%
Photometer detect aerosol concentration range 0.001~100 mg/m³
Aerosol Salt, DOP, DEHS, Paroline, Corn oil, optional
Resistance 0-1000Pa
Aerosol density (50~200) mg/m³(oil); (12~20)mg/m³(salt)
Measuring range 0.3~1μm
Detect temperature 5~ 35ºC
Related humidity 0 ~ 90% RH
Pressure detect Digital pressure sensor (pressure difference transmitter)

Pressure detect range (0~0.88)MPa
Efficiency testing range filter efficiency: 10~99.999%
Operation display computer
Power supply 110V/220V, 50/60Hz
Counting median diameter 0.075±0.02μm (salt)
0.185±0.02μm(oil)
Geometric standard deviation of article size distribution <1.86(salt)
<1.6(oil)



Medical Respirator Mask Particulate Filter Tester  YY/T 0469-2011 5.6.2 0Medical Respirator Mask Particulate Filter Tester  YY/T 0469-2011 5.6.2 1
