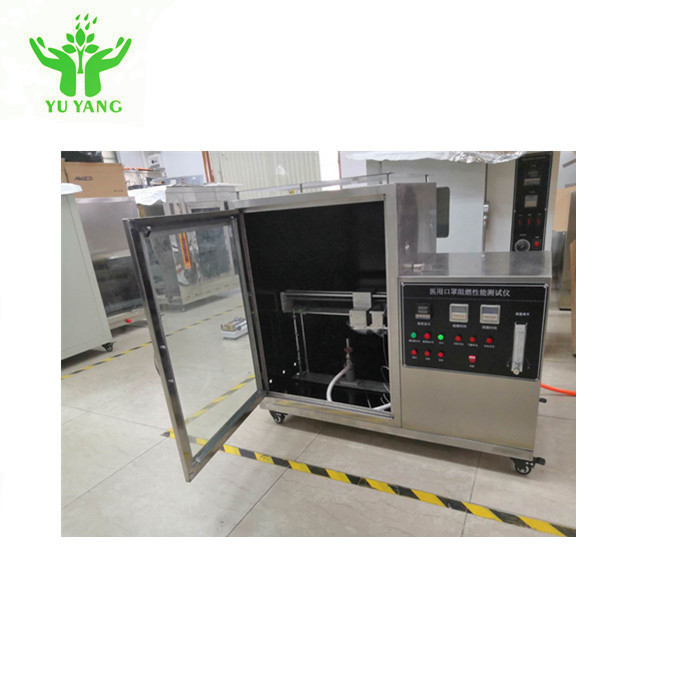

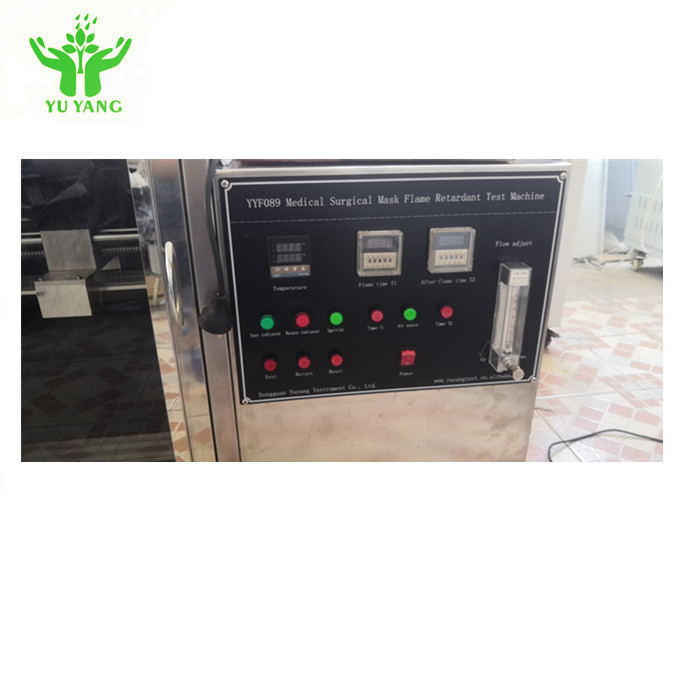

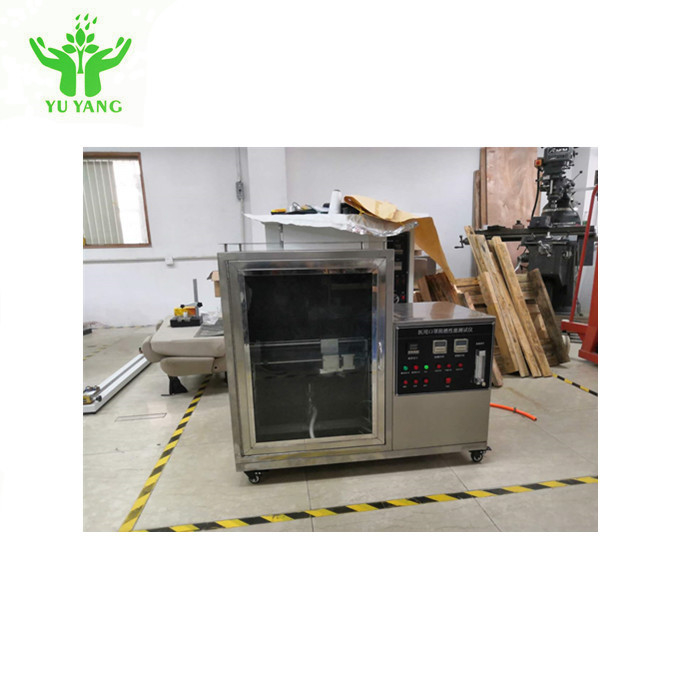

50W Flammability Testing Equipment Surgical Facial Flame Retardant Tester

50W Flammability Testing Equipment Surgical Facial Flame Retardant Tester

  • 50W Flammability Testing Equipment Surgical Facial Flame Retardant Tester
  • 50W Flammability Testing Equipment Surgical Facial Flame Retardant Tester
  • 50W Flammability Testing Equipment Surgical Facial Flame Retardant Tester
  • 50W Flammability Testing Equipment Surgical Facial Flame Retardant Tester
50W Flammability Testing Equipment Surgical Facial Flame Retardant Tester
Product Details:
Place of Origin: CHINA
Brand Name: YUYANG
Certification: YY098
Model Number: YYF089
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: negotiation
Packaging Details: Wooden Box
Delivery Time: 1-3 WORK DAYS
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 500 SETS A MONTH
Contact Now
Detailed Product Description
Power: AC 220V/50HZ Warranty: 1 Year
Weight: 70kg Timing Accuracy: 0.01s
Dimensions: 1000*650*1300mm Color: Silvery White
High Light:

flame test equipment

,

flammability test apparatus

YYF089 Surgical Facial Flame Retardant Test Machine



Description:



The Flammability test procedure evaluates the flammability of medical textiles including face masks, surgical gowns, and drapes. The test method is designed to comply with 16 CFR Part 1610. This test is required by the ASTM F2100 (Standard Specification for Performance of Materials Used in Medical Face Masks) to ensure that all face masks meet the requirements for Class 1 flammability. Testing is also required for 510(k) submissions to the FDA. In addition to the Flammability test, Nelson Labs can perform all ASTM F2100 testing.



Scope of application



It is mainly used to test the burning performance of medical masks after contacting the flame at a certain linear speed.Able to special test equipment. It is suitable for measuring the flame retardant performance of medical masks and all protective masks. Available for medical inspection. Used by inspection departments, safety inspection departments and scientific research units. It is a test item to test the flame retardant performance of protective masks; through propane as a combustion power source, the system is equipped with gold. Belong to the head mold, bring the mask into the metal head mold, the metal head mold is equipped with a rotating speed that can be adjusted, and a certain shift is set. Dynamic speed and height, through 800 ℃ high temperature combustion, observe and detect the flame retardant performance of protective masks.



Standards compliant



Comply with GB 19083-2010 "Technical Requirements for Medical Protective Masks", YY 0469-2011 "Medical Surgical Masks",GB 2626-2019 test standard requirements. EN149 mask test flame retardant requirements



Technical index



1. The linear motion velocity of the tip of the nose of the head mold: (60 ± 5) mm / s;

2. The flame height can be adjusted (adjusted at the factory to 40 ± 4mm);

3. The diameter of the flame temperature measuring probe: 1.5mm;

4. The height of the flame from the top of the burner: (20 ± 2) mm, the temperature is (800 ± 50) ℃;

5. The distance between the top of the burner and the low point of the mask zui: (20 ± 2) mm;

6. Height adjustment range of burner: 30mm;

7. The wall thickness of the metal head mold is 2 ~ 3mm, which is resistant to flame and flame;

8. Head mold material: iron / aluminum (optional);

9. Combustion gas: propane or liquefied gas, purity above 95% (user-supplied)

10. Timer for after-burning time and smoldering time: 0-99.99 seconds, accuracy: ± 0.01 seconds;

11. Dimensions: length 1000 × width 650 × height 1300mm;

12. Working power supply: AC220V, 50Hz, 50W;

13. Instrument weight: about 70kg;

14. The mask head mold fixture can be adjusted freely in both vertical and horizontal directions.



Working power supply AC220V, 50Hz, 50W
Instrument weight 70KG
Accuracy ± 0.01 seconds
Dimensions 1000*650*1300mm
Warranty 1 Year
Color Silvery White
