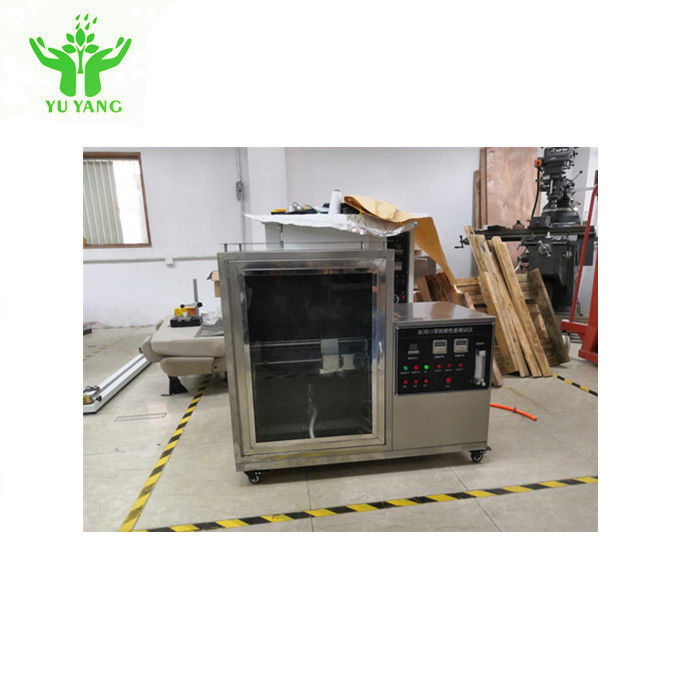

70kg Flammability Testing Equipment Silvery White Flame Retardant Test Surgical Facial Flame Retardant Test Machine

70kg Flammability Testing Equipment Silvery White Flame Retardant Test Surgical Facial Flame Retardant Test Machine

  • 70kg Flammability Testing Equipment Silvery White Flame Retardant Test Surgical Facial Flame Retardant Test Machine
  • 70kg Flammability Testing Equipment Silvery White Flame Retardant Test Surgical Facial Flame Retardant Test Machine
  • 70kg Flammability Testing Equipment Silvery White Flame Retardant Test Surgical Facial Flame Retardant Test Machine
70kg Flammability Testing Equipment Silvery White Flame Retardant Test Surgical Facial Flame Retardant Test Machine
Product Details:
Place of Origin: CHINA
Brand Name: YUYANG
Certification: YY098
Model Number: YYF089
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: negotiation
Packaging Details: Wooden Box
Delivery Time: 1-3 WORK DAYS
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 500 SETS A MONTH
Contact Now
Detailed Product Description
Power: AC 220V/50HZ Warranty: 1 Year
Weight: 70kg Timing Accuracy: 0.01s
Dimensions: 1000*650*1300mm Color: Silvery White
High Light:

flame test equipment

,

flammability test apparatus

YYF089 Surgical Facial Flame Retardant Test Machine



Description:



The Flammability test procedure evaluates the flammability of medical textiles including face masks, surgical gowns, and drapes. The test method is designed to comply with 16 CFR Part 1610. This test is required by the ASTM F2100 (Standard Specification for Performance of Materials Used in Medical Face Masks) to ensure that all face masks meet the requirements for Class 1 flammability.





Instrument features:



1. PLC + touch screen control system; make the test more convenient, operated and visualized;

2. The mask fixture is a metal human head model, which can fully simulate the actual use state of the mask;

3. The height of the burner is adjustable;

4. Automatic timing positioning of the burner; 5. Burning time and flame retardant time are automatically recorded, digital display;

6. Equipped with flame temperature measurement probe and flame temperature display;

7. Automatic control system and automatic ignition;

8. The burner is equipped with combustible gas interface such as propane or liquefied gas;

9. Automatic timing and automatic storage of test data; easy to retrieve test report;



Standard:



GB 19083-2010 Technical requirements of medical protective masks
YY 0469-2011 Technical requirements of medical surgical masks-Blood penetration test device
GB 2626-2006 Respiratory protective products, Self - priming filtering particulates respirator-flammability
BS EN136-1998 Respiratory protective devices -Full face masks - Requirements testing, marking



Technical index



1. Head mold material: iron / aluminum (optional);

2. Combustion gas: propane or liquefied gas, purity above 95% (user-supplied)

3. Timer for after-burning time and smoldering time: 0-99.99 seconds, accuracy: ± 0.01 seconds;

4. Dimensions: length 1000 × width 650 × height 1300mm;

5. Working power supply: AC220V, 50Hz, 50W;

6. Instrument weight: about 70kg;

7. The mask head mold fixture can be adjusted freely in both vertical and horizontal directions.



Working power supply AC220V, 50Hz, 50W
Instrument weight 70KG
Accuracy ± 0.01 seconds
Dimensions 1000*650*1300mm
Warranty 1 Year
Color Silvery White


70kg Flammability Testing Equipment Silvery White Flame Retardant Test Surgical Facial Flame Retardant Test Machine 0
