150gf L40cm 45 Degree Horizontal Flammability Tester

150gf L40cm 45 Degree Horizontal Flammability Tester

  • 150gf L40cm 45 Degree Horizontal Flammability Tester
  • 150gf L40cm 45 Degree Horizontal Flammability Tester
  • 150gf L40cm 45 Degree Horizontal Flammability Tester
  • 150gf L40cm 45 Degree Horizontal Flammability Tester
150gf L40cm 45 Degree Horizontal Flammability Tester
Product Details:
Place of Origin: China
Brand Name: YUYANG
Certification: 16 CFR Part 1610 , ASTM D1230,FTMS 191-5908, CALIF TB 117,GB/T 14644
Model Number: YYF043
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: wooden case
Delivery Time: 3-5 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 1000/Month
Contact Now
Detailed Product Description
Bristle Load: 150gf Rack Angle: 45°
Flame Spread Time Setting Range: 0.01s-99.99s The Surface Ignition Time Of Sample Is: 1.0s±0.05s
Ignition Time: 1s Or Set It Set Arbitrary Sample Size: 50mm*150mm
High Light:

45 Degree Horizontal Flammability Tester

,

L40cm Horizontal Flammability Tester

,

150gf Horizontal Flammability Tester

0.01s-99.99s 45 Degree Textiles Automatic Flammability Testing Equipment



Description:

To determine the burning characteristics of textiles under controlled conditions. Stainless steel test cabinet with glass observation panel provided with automatic timing of flame spread in 0.1-second increments from ignition. Brushing Device including Spare Nylon Brush.



Principle:
Under the specified conditions, the sample is placed at an angle of 45°, the sample is ignited for 1 s, and the time required for the sample to burn upward by a certain distance is used as a measure for assessing the degree of burning of the textile. Fabrics with surface piles, the ignition or melting of the base fabric as an additional indicator of the severity of the combustion, but need to be noted.



Standard:

16 CFR Part 1610 , ASTM D1230,FTMS 191-5908, CALIF TB 117,GB/T 14644



Parameter:

Time Display 0-99.9S
Test box 37cm*22cm*35cm, top 12 vents with a diameter of 12.7mm
Resolving Capability 0.1S
Ignition time 1s or set it Set arbitrary
Dimensions 40*25*54cm
Power AC 220V / 50Hz / 2A





Features:

1. Fully automatic combustion time control device with time adjustment accuracy of 0.1 seconds

2.Stainless steel test room

3.Organic transparent glass door, easy to observe

4.friendly man-machine interface, easy to set up

5.Touch screen LCD screen can switch between Chinese and English display

6.Automatically record 5 groups of burning time

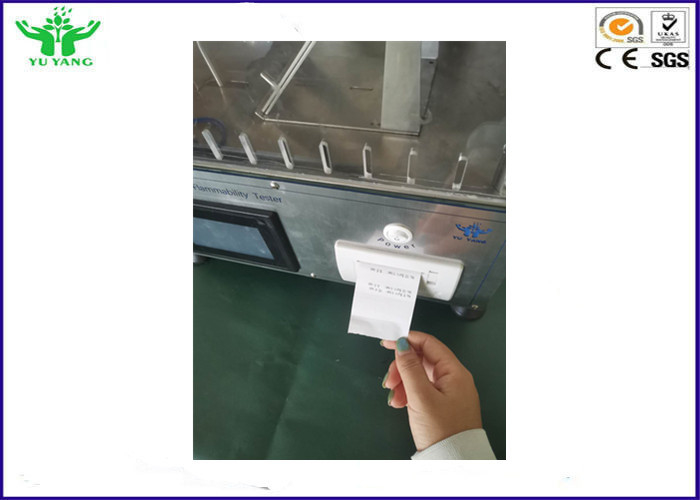

7.The device can print test results

Production Display:

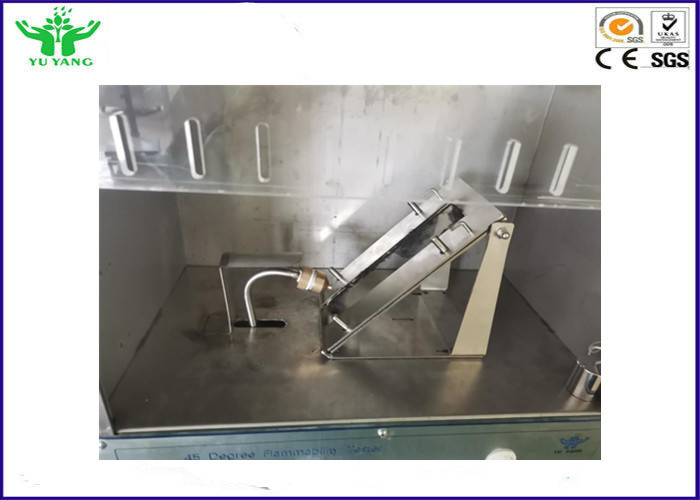

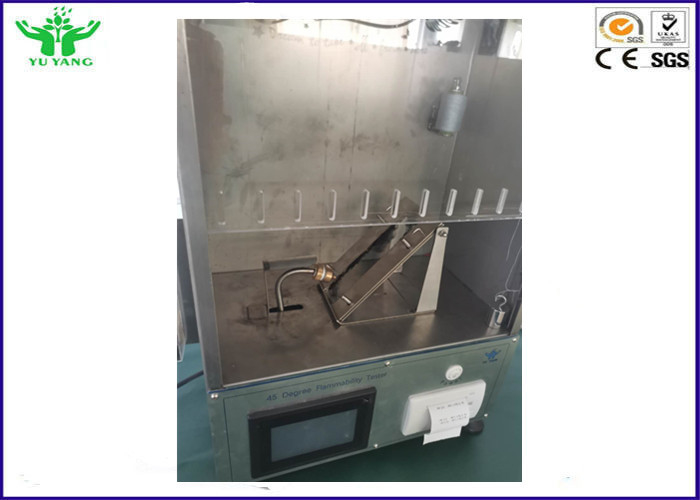

150gf L40cm 45 Degree Horizontal Flammability Tester 0150gf L40cm 45 Degree Horizontal Flammability Tester 1150gf L40cm 45 Degree Horizontal Flammability Tester 2
