Name: 16 CFR 1500 / EN 71 Toys Testing Equipment Snap Button Pull Testing Machine
Brand: YUYANG
SKU: YYT045
Price: 1450 USD
Availability: InStock
Rating: 4.8 (118 reviews)

Home > products > Toys Testing Equipment >

16 CFR 1500 / EN 71 Toys Testing Equipment Snap Button Pull Testing Machine

Place of Origin:

China

Brand Name:

YUYANG

Certification:

Model Number:

YYT045

Request A Quote

Product Details

Product Name:

Snap Button Pull Testing Machine

Application:

Toys Cloth Fabric Garment

Load Capacity:

0~500N

Material:

SUS 304 Stainless Steel

Standard:

16 CFR 1500.51-53, ASTM F963, EN71-Part1, M&S P115A

Dimension:

280*230*735 Mm

Payment & Shipping Terms

Minimum Order Quantity

1PCS

Price

$1450

Packaging Details

Wooden Box

Delivery Time

7-30 Days

Payment Terms

T/T

High Precision Digital Push Pull Force Gauge Digital Push-pull Tester Dynamometer

Get Best Price

Diameter 80Mm Impact Resistance Tester Multifunctional Stainless Steel

Get Best Price

Multipurpose Fireproof Bite Force Tester , Anti Interfere Baby Toy Tester

Get Best Price

Anti Interfere Toys Testing Equipment 72.6×72.6×30mm Anti Explosion

Get Best Price

+86-13825729807

sales01@yuyangtest.com

86-769-26622869

Contact Now

Product Description

16 CFR 1500 / EN 71 Toys Testing Equipment Snap Button Pull Testing Machine 0

Description:

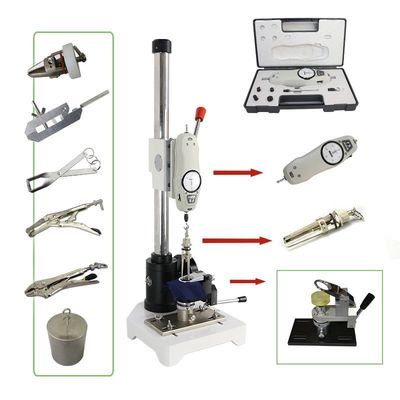

The snap component is gripped by the Upper Snap Clamp and the garment is fixed to the lower Fabric Clamp. By turning the hand wheel, the operator can apply a specific force and the holding force or the breaking strength can be recorded. The capability of Snap tester can be enhanced with clamps & accessories for testing of other Snaps, Jean Buttons, Four Hole Buttons & Garments Accessories such as Zippers, Bows, Applique, Toggles, Hooks/Bars, and D-Rings, amongst others.Related testers(optional order)

The detachment of a snap or other part may be classed as small parts; Whilst broken small parts may require sharp point & sharp edge testing. As a result, additional testing equipment may be recommended, such as: Small Parts Cylinder, Sharp Point Tester, Sharp Edge Tester, Button Impact Tester, etc.

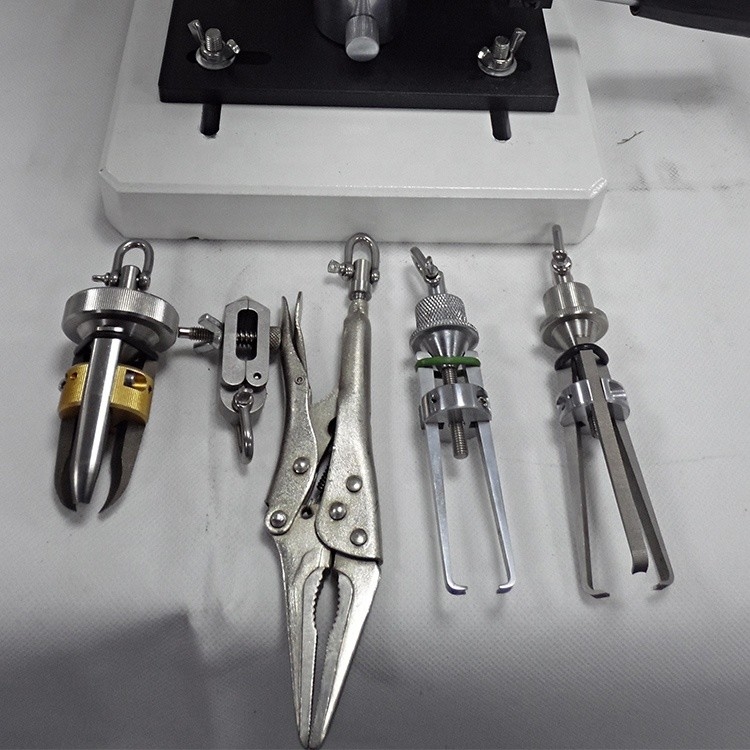

Accessories:

SANDOO Force Gauge FB-30K (300N, Resolution 2N, Accuracy +/-1%FS) - 1 Pc

Lower Fabric Clamp, Lever Armlocking - 1 Pc

Upper Stud Clamp - 1 Pc

Upper Snap Clamp -1 Pc

Three Pronged Clamp - 1 Pc

Two Pronged Clamp with screw - 1 Pc

Lower Grasp Button Kit - 1 Pc

Long Nose Vise Grip - 1 Pc

Calibration: 15 lbs Calibration Weight- 1 Pc

Safety Goggles - 1 Pc

Rubber Ring - 5 Pcs

Calibration Certificate - 1 Pc

Operation Manual - 1 Pc

Standards:

ASTM PS79-96, ASTM F963, EN 71-1, 16 CFR 1500.51-53, M&S P115A

Snap pull tester

Weight 45Kg

Dimensions 230 x 280 x 750 mm(LxWxH)
