EN 71-1 Dynamic Strength Testing Equipment for Wheeled Ride on Toys Aluminum Impact Test 2m/s

EN 71-1 Dynamic Strength Testing Equipment for Wheeled Ride on Toys Aluminum Impact Test 2m/s

EN 71-1 Dynamic Strength Testing Equipment for Wheeled Ride on Toys Aluminum Impact Test 2m/s

Product Details:

Place of Origin:	China
Brand Name:	YUYANG
Certification:	CE
Model Number:	YYT026

Payment & Shipping Terms:

Minimum Order Quantity:	1PCS
Price:	$6000
Packaging Details:	Wooden Box
Delivery Time:	7-30 Days
Payment Terms:	T/T

Contact Now

Detailed Product Description

Product Name:	Dynamic Strength Tester	Application:	Toys
Material:	Aluminum	Conveyor Belt Speed:	2m/s
Load Weight:	25Kg/50Kg	Weight:	≈650Kg

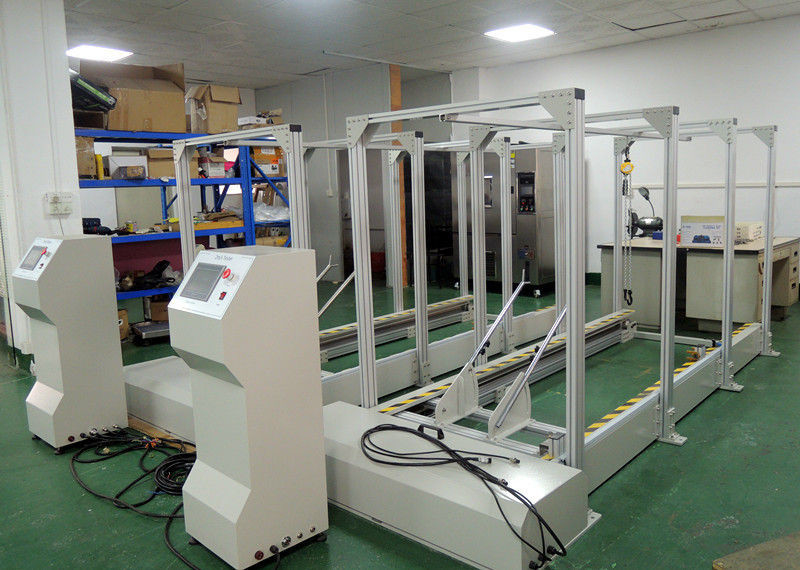

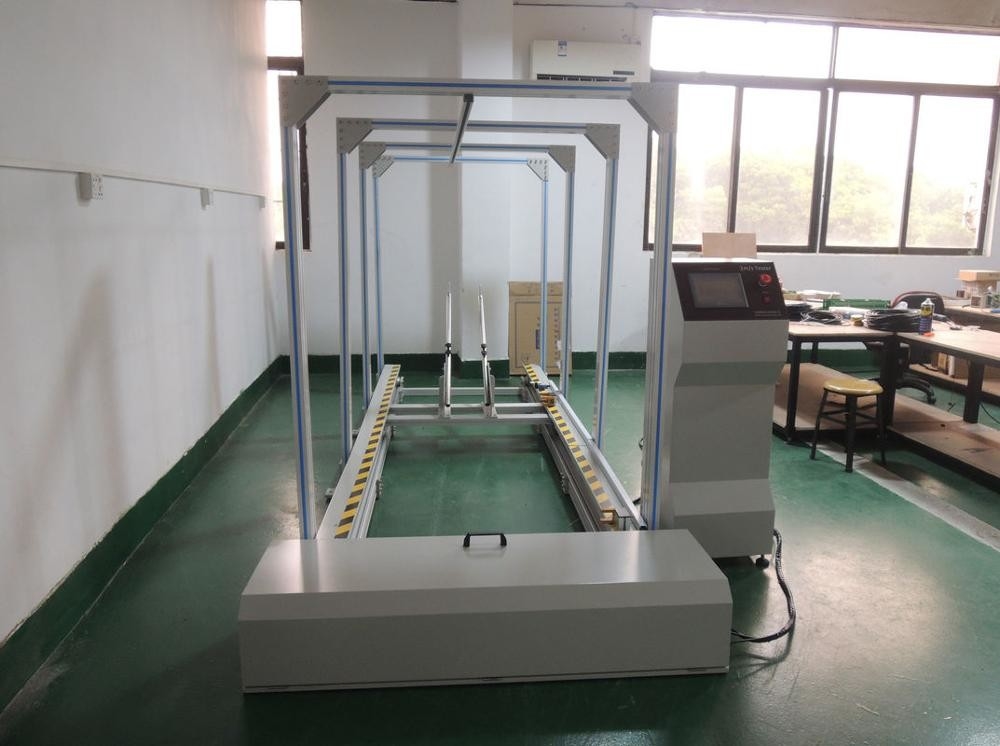

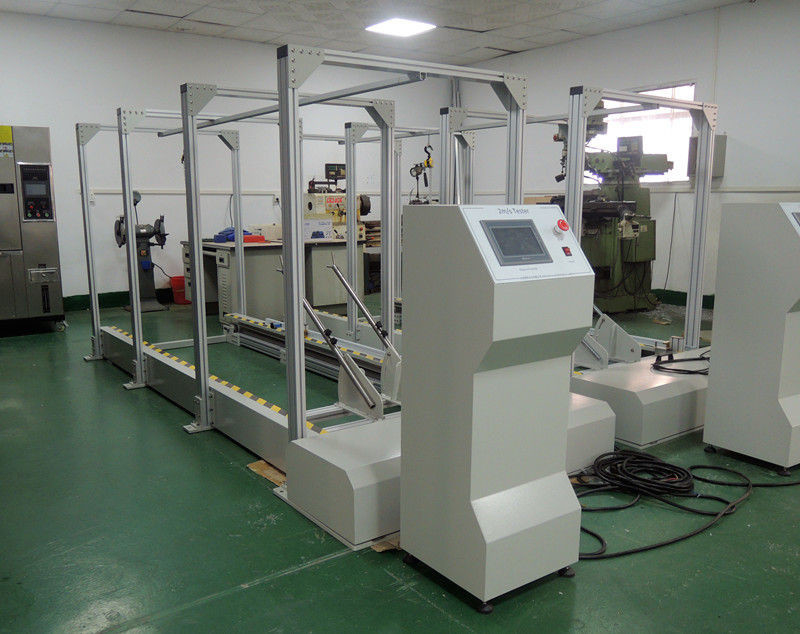

EN 71-1 Dynamic Strength Testing Equipment for Wheeled Ride on Toys Aluminum Impact Test 2m/s 0

This machine is used to test the dynamic strength performance of toy scooter by such movement that

drive the toy three times at a steady speed of (2.0±0.2)m/s perpendicularly into a non-resilient step with

a height of (50±2)mm.

2. Principle:

The machine simulates the running performance of the toy scooters with a load. The load is secured to the

toy and articulated arms with the elbow joints in a downward position are attached to the steering wheel

or handlebars if the toy is so equipped. The toy is driven three times into a non-resilient step at a steady

speed of (2.0±0.2)m/s.

Determine structure and performance of the toy in good or bad to conform to relevant requirements.

3. Standard:

According to EN71-1 2011 8.22.3 section

4. Instrument specification:

Item	Specification
Test Sample	Children Ride-on-Toys
Sample No	1 pcs per time
Test Speed	2±0.2m/s
Load weight	25Kg/50Kg
Barrier	50mmx50mm
Passage width	90cm
Size (WxDxH)	Machine:153x450x156cm Control box:36x32x100cm
Weight	≈650Kg
Power	1∮ AC 380V 50Hz
