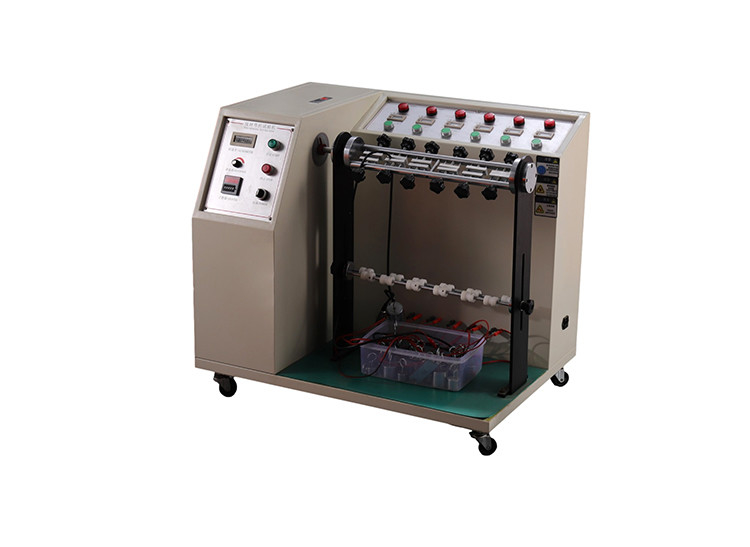

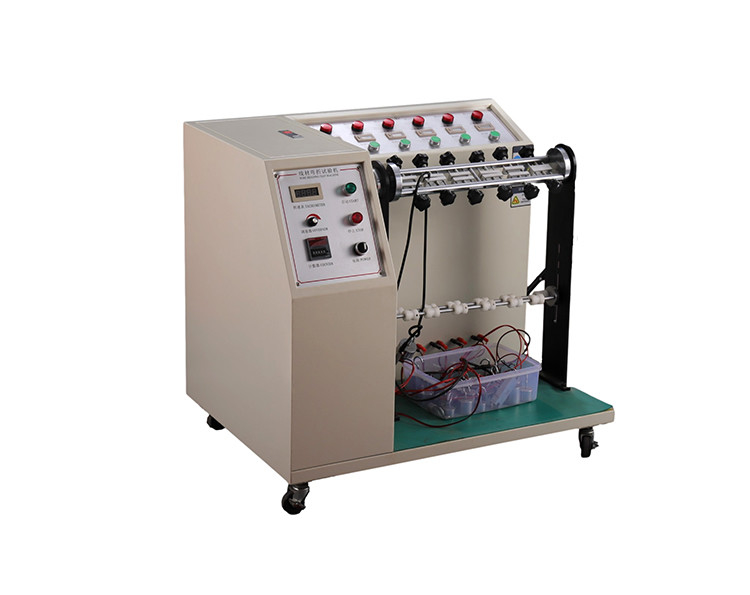

UL817 IEC60335 Metal Wire And Cable Repeated Bending Testing Machine

UL817 IEC60335 Metal Wire And Cable Repeated Bending Testing Machine

  • UL817 IEC60335 Metal Wire And Cable Repeated Bending Testing Machine
  • UL817 IEC60335 Metal Wire And Cable Repeated Bending Testing Machine
  • UL817 IEC60335 Metal Wire And Cable Repeated Bending Testing Machine
UL817 IEC60335 Metal Wire And Cable Repeated Bending Testing Machine
Product Details:
Place of Origin: China
Brand Name: YUYANG
Certification: GB
Model Number: YYW002
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Price: $1300
Packaging Details: Wooden Box
Delivery Time: 7-30 Days
Payment Terms: T/T
Contact Now
Detailed Product Description
Product Name: Cable Bending Testing Machine Number Of Flex Per Test: 1-999999 (selectable)
Number Of Test Station: 6,lndividual Counts For Each Station Rate Of Flexing: 10~60 Times/min(selectable)
Flexing Angle: 0°-180°(Selectable) Dimensions: 85*60* 75cm
High Light:

IEC 60331 Wire Testing Equipment

,

25mm Wire Testing Equipment

,

3.2mm Impact Testing Equipment

UL817 IEC60335 Metal Wire And Cable Repeated Bending Testing Machine 0

Production Discrible:

UL817 IEC60335 cable bending testing machine can test six cables or cord sfitted with plugs simultaneously. This improves testing capacity.IEC60884-1 calls for 10,000 flexing at a rate of 60 flexing per minute. Halfway through the test, the cords need to be rotated 90°. The plug sockets are designed to make this rotation easy and accurate.
This tester has individual station counters so that any failure data can be retrieved by station.The cables are connected to a socket and the tail of the cable is connected to the tester to detect if an internal fault occurs with the cable wiring or
accessory connection.

The instrument starts in a vertical orientation and then flexes the specimens 45° on either side of the vertical for a total 90° of flexing. A standard rate of 60 flexing per minute is used but a slower rate can be selected if desired.
A set of customer selected weights are included with the instrument so that the proper force can be applied to the cable during the test.

Power Supply
220V 50Hz
Number of Flex Per Test
1-999999 (selectable)
Number of Test Station
6,lndividual counts for each station
Rate of Flexing
10~60 times/min(selectable)
Flexing Angle
0°—180°(Selectable)
Weight
50/100/200g/300g/500g*6
Dimensions
85*60* 75cm
Weight
100KG
