Wire Testing Equipment Bunched Cable and Wire Vertical Flame Propagation Test Equipment

Name: Wire Testing Equipment Bunched Cable and Wire Vertical Flame Propagation Test Equipment
Brand: YUYANG
SKU: YYW021
Price: 15 USD
Availability: InStock
Rating: 4.8 (132 reviews)

Product Details:

Place of Origin:	China
Brand Name:	YUYANG
Certification:	CE
Model Number:	YYW021

Payment & Shipping Terms:

Minimum Order Quantity:	1PCS
Price:	$15,000.00 - $25,000.00
Packaging Details:	Wooden Box
Delivery Time:	7-30 Days
Payment Terms:	T/T

Contact Now

Detailed Product Description

Product Name:	Wire Vertical Flame Spread Test Equipment	Size Of Chamber:	1,165 (W) × 2,165 (D) × 4,350 (H) Mm
Console Size:	600 (W) × 750 (D) × 1,600 (H) Mm	Power:	AC 220V, 50 / 60hz, 15A
Weight:	1,500kg
High Light:	Combustion Wire Testing Equipment , 25mm Wire Testing Equipment , IEC707 fatigue testing machine

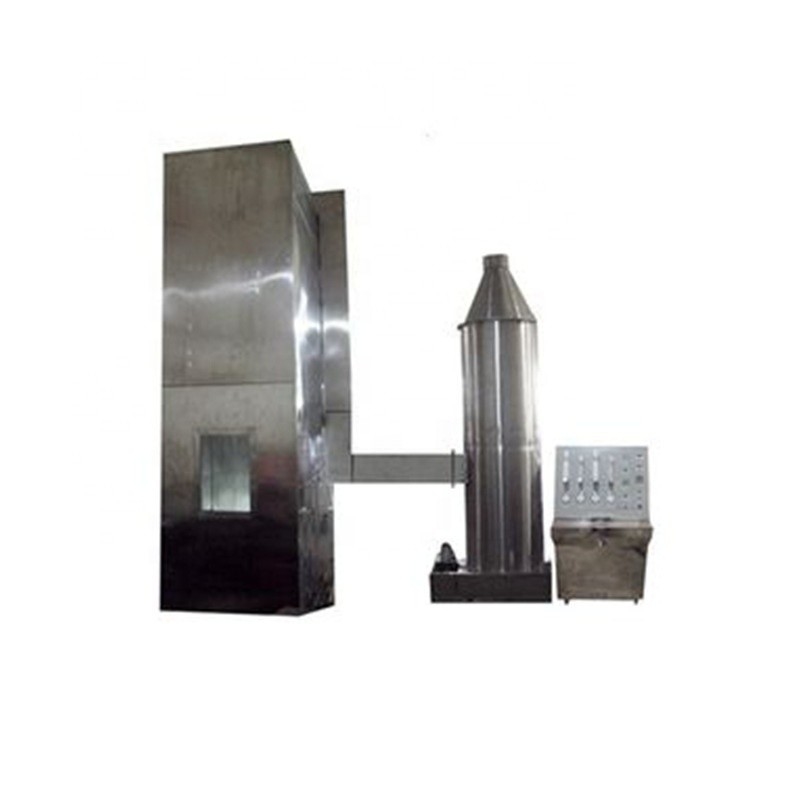

Wire Testing Equipment Bunched Cable and Wire Vertical Flame Propagation Test Equipment 0

Wire Test Equipment Bunched Cable and Wire Vertical Flame Propagation Test Equipment

Product Application:

Bunched cable vertical flame spread tester is used to detect vertically mounted under specified conditions

for vertical flame spread inhibiting the ability of bundle cable or fiber optic cable. In accordance with

IEC60332—3—10: 2000for vertical flame spread of vertically-mounted bunches wires or cables>

Standards:

IEC60332—3—10: 2000, UL1685, EN 50399, GB/T18380.(31—36)—2008

Technical parameters:

1. Internal dimensions of stainless steel test chamber: 1,000(W)×2,000(D) ×4,000(H)mm,

supplemented with insulated mineral wool material

2. At the lower section of the test chamber, there is a 800(W) x 400(D) sized hole at the 150mm position

from the front side of the chamber to supply the air

3. Exhaust hole of the top: 300(W) ×1, 000(D)mm

4. Wide stainless steel ladder dimensions: 500(W) ×3, 500(H) mm; quantity: 1

5. Standard stainless steel ladder dimensions: 800(W) ×3, 500(H); quantity: 1

6. Two sets of banding standard propane burner devices

7. Two sets of venturi gas mixing devices

8. Pressure gauge and pressure reducing valve device, which is able to adjust propane and air pressure to 0.1 MPa

9. Rotameter: used for adjusting and setting the gas flow

10. There is a steel ladder and handrail on the chamber body, which is convenient for the user to test at the top

11. Equipped with a ball valve, so that air supply can be closed manually

12. Set flame test time automatically, and by then the air supply can be cut off automatically

13. Mounted K thermocouples inside the chamber, indicating the internal temperature

14. With forced fire extinguishing device

15. Automatic lifting device

Specifications:

External dimensions of the burning cabinet: 1120(W) ×2195(D) ×5077(H)mm

External dimensions of the control cabinet: 1280(W) ×770(D) ×1200(H)mm

Power supply: AC 220V, 50/60Hz, 2A

Air source: propane and air( prepared by users)
