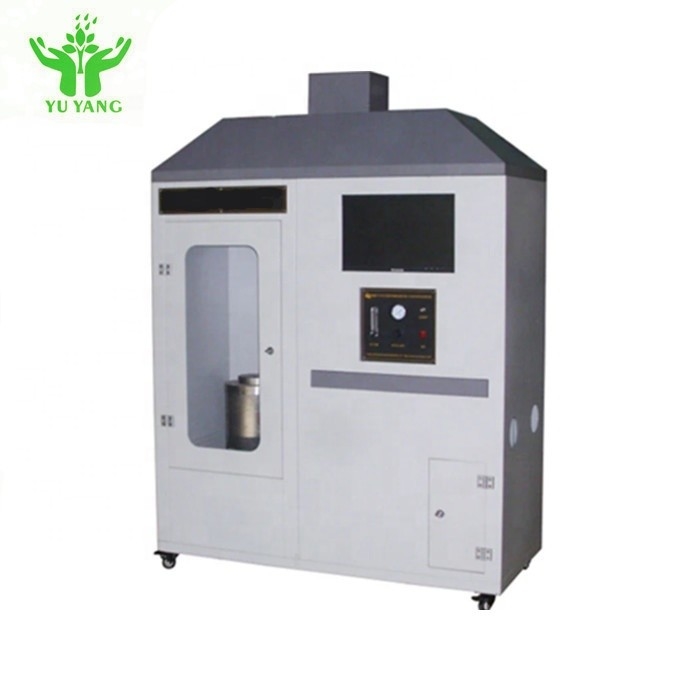

Name: Combustion Performance Test Machine Plastic Smoke Density Burning Tester Equipment Flammability Test Apparatus
Brand: DONGGUAN YUYANG INSTRUMENT CO., LTD
SKU: YYF002
Price: 1000 USD
Availability: InStock

Home > products > Wire Testing Equipment >

Combustion Performance Test Machine Plastic Smoke Density Burning Tester Equipment Flammability Test Apparatus

Combustion Wire Testing Equipment

25mm Wire Testing Equipment

IEC707 fatigue testing machine

Place of Origin:

China

Brand Name:

YUYANG

Certification:

Model Number:

YYF002

Request A Quote

Combustion Performance Test Machine Plastic Smoke Density Burning Tester Equipment Flammability Test Apparatus

Product Details

Product Name:

Plastic Combustion Performance Test Machine

Test Temperature:

0~500℃

Air Flow:

0~100mm/s(adjustable)

Opening Diameter:

25mm

Temperature Accuracy:

± 1 ℃

Dimension:

L1400*W600*H1900(mm)

Highlight:

Combustion Wire Testing Equipment

25mm Wire Testing Equipment

IEC707 fatigue testing machine

Payment & Shipping Terms

Minimum Order Quantity

1PCS

Price

$1000

Packaging Details

Wooden Box

Delivery Time

7-30 Days

Payment Terms

T/T

Single Insulated Cable Testing Equipment , IEC 60332-1 Flame Propagation Test Apparatus

Get Best Price

IEC 60332-3 Vertical Flammability Tester For Burning Behaviour Of Bunched Cables

Get Best Price

IEC60331 Wire Testing Equipment Cable Fire Resistance Test For Circuit Integrity Under Fire Conditions

Get Best Price

Halogen Acid Gas Release Corrosion Testing Equipment IEC 60754-1&2 Test Standard

Get Best Price

+86-13825723571

sales002@yuyangtest.com

86-769-26622869

Contact Now

Product Description

Combustion Performance Test Machine Plastic Smoke Density Burning Tester Equipment Flammability Test Apparatus 0

Description:

The plastic combustion performance test machine is suitable for measuring and evaluating the combustion characteristics of plastic materials. Flash point and auto-ignition point tester for measuring the temperature of the plastic flash fire and auto-ignition temperature, which is convenient to evaluate plastic ignition performance. This tester is high precision and reasonable structure, it’s an ideal plastic combustion performance test machine of plastic manufacturing,universities and quality inspection institutions.

Standard:

GB/T 2408,GB/T 4610,UL94,ASTM D1929,IEC707

Theory:

In the hot air furnace heating chamber, the sample is heated with different temperatures, with a small flame in the furnace directly above the opening point of the escaping gas to determine the flashover temperature.

Auto-ignition temperature is directed by the same method of flashover temperature, but no flame is applied.

Specification:

Test temperature:0~500℃

Temperature accuracy: ± 1 ℃

Opening diameter:Ф25mm

Air flow:0~100mm/s(adjustable)

Power:AC220V,50HZ

Dimension:L1400*W600*H1900(mm)

Experimental part of the device is as follows: the furnace shell, furnace tube, inner tube, sample disk,

heating jacket, insulation, thermal, air source, temperature control device, automatic ignition device.
