ISO 1716 Combustion Flammability Testing Equipment 0.01-30MJ/Kg

Professional Building Material Fire Tester Heat Of Combustion Testing Equipment

Standards:

EN ISO 1716:2018 Reaction to fire tests for products -- Determination of the gross heat of combustion (calorific value); GB/T14402-2007 Reaction to fire tests for building materials and products -- Determination of the heat of combustion.

Scope:

The Building materials and products Calorific Value Testing apparatus is suitable for testing the calorific value of building materials in a constant heat capacity oxygen bomb calorimeter, including total calorific value and net calorific value of combustion.

Specifications:

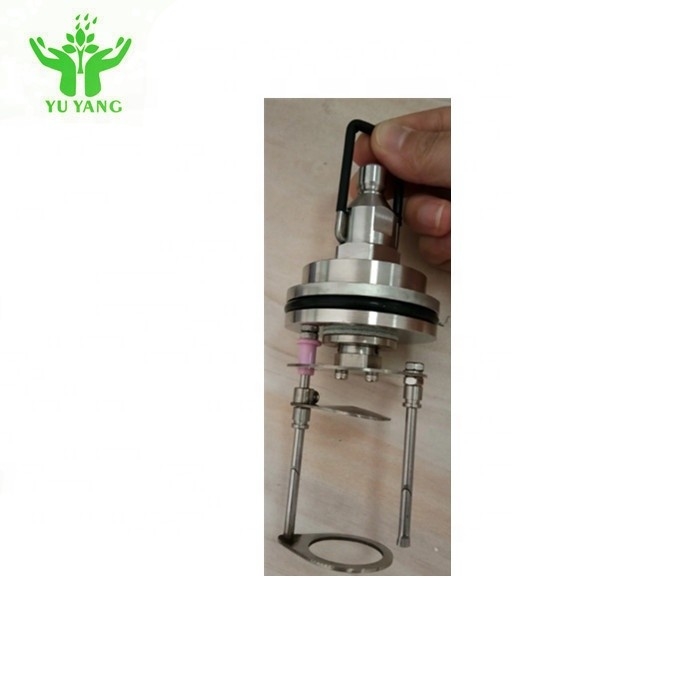

1. Calorimetric bomb

a. Capacity: (300 ± 50) mL

b. Quality: 3.25kg

c. The thickness of the barrel is greater than 1/10 of the inner diameter of the barrel

d. The cover can accommodate crucible and electronic ignition, and the cover and all sealing devices can withstand an internal pressure of 21Mpa

e. The inner wall of the barrel is made of USU304# stainless steel to withstand the erosion of the combustion products of the sample, and it can also resist the acid produced by the combustion.

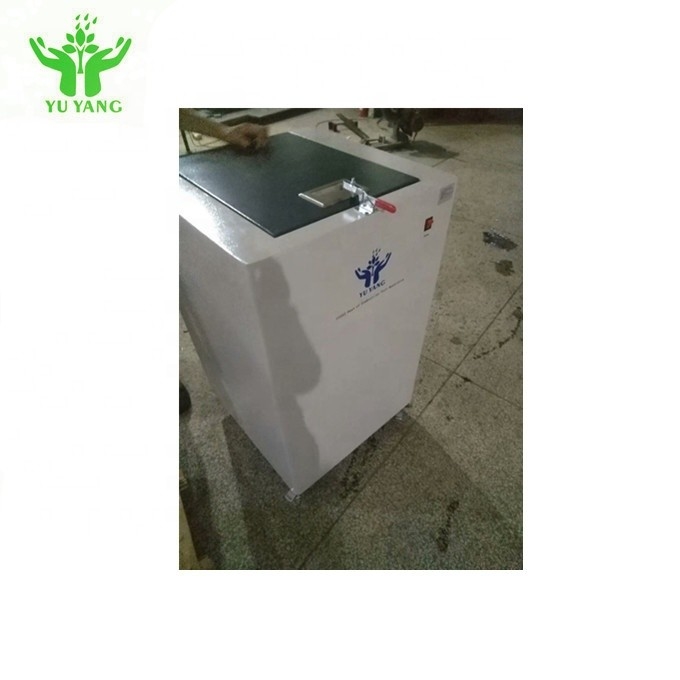

2. Calorimeter

a. The outer cylinder of the calorimeter is a double-layered container with a heat-insulating cover. The inner and outer walls are filled with heat-insulating material, the outer tube is filled with water, the inner wall of the outer wall and the calorimeter are surrounded by 10 mm, and the bullet is supported by the three points with the smallest contact area.

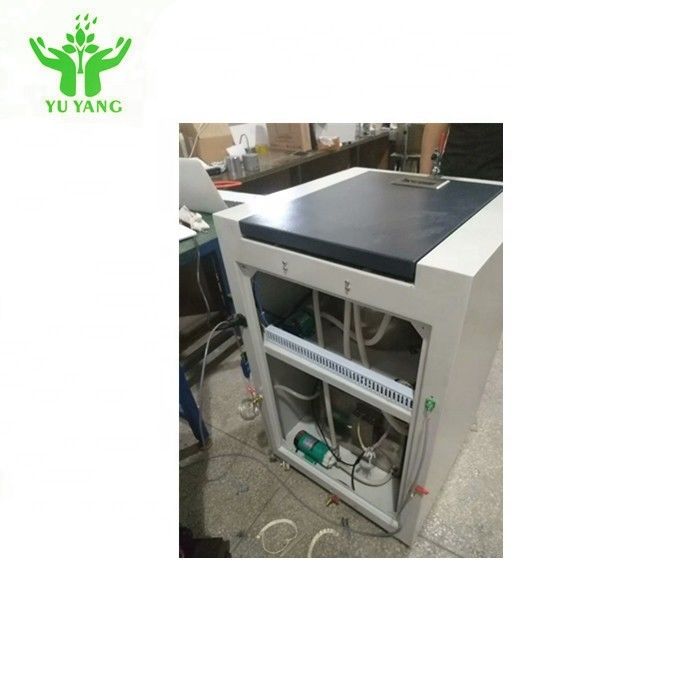

b. Calorimeter inner cylinder: is a polished metal container used to hold the oxygen bomb, which can completely invade the oxygen bomb. The inner cylinder automatic water injection device, if the test water is lacking, the equipment is automatically replenished, the volume is 2200ml.

3. Stirrer: Driven by a constant speed motor to avoid heat transfer from the calorimeter. The stirrer shaft is separated from the outer lid and the outer tub by quality inspection. The magnetic stirrer with the same performance is used. Stirring Power: 3W; stirring speed inner cylinder: 375r/min.

4. Temperature resolution: 0.0001 ℃, using PT100 sensor;

5. Oxygen calorimetric bomb volume:300ML,mass:3.2KG;

6. Calorimetric vessel volume: 2200ML;

7. Calorimetric bomb oxygen-supply pressure: 0 ~ 3.5Mpa without leakage;

8. Oxygen calorimetric bomb pressure resistance:≥21Mpa pressure;

9. Stirrer power: 3W;

10. Stirrer vessel speed: 375r / min;

11. Power:AC 185~245V;

12. Crucible(stainless steel):2;

13. Single-head oxygen bomb:1;

14. Firing wire:1 volume;

15. Containing crucible method and cigarette method;

16. Device for making the”cigarette”;

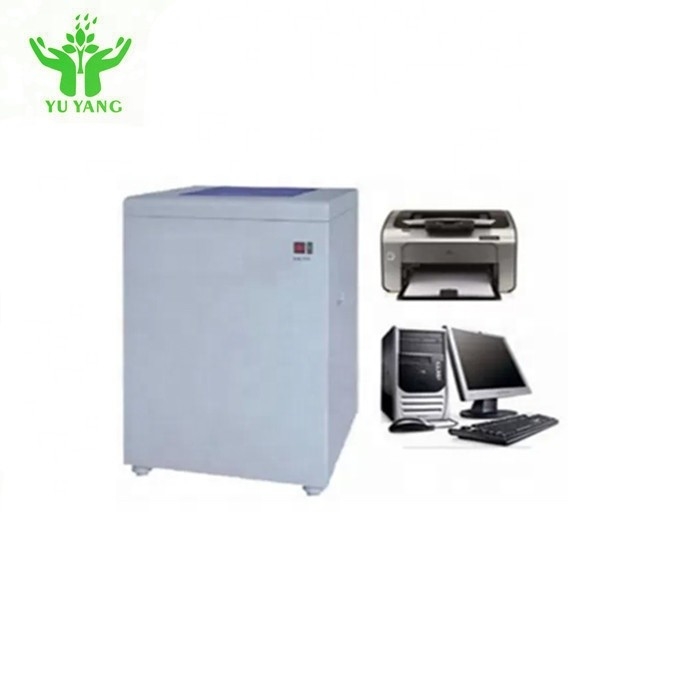

17. The system automatic records the data of temperature and time.It can be based on the input heat capacity, sample quality and additional heat and related data, automatically temperature correction and gross heat of combustion calculation, and the result is given.The computer of the test apparatus has the icon display function, display curve, Excel spreadsheets, print function, data input, command and control functions.In order to perfect the system, the computer system can be added to fault alarm, warning, alarm, etc.

18. Ignition circuit:voltage 12V,adjustable current 100mA,firing wire diameter 0.1mm;

19. Gross heat of combustion and net heat of combustion can read directly,without calculation;

20. Computer:1 set.
