ASTM E648 Flame Retardant Test , 120mm Flooring Radiant Heat Flux Fire Testing Equipment

ASTM E648 Flame Retardant Test , 120mm Flooring Radiant Heat Flux Fire Testing Equipment

  • ASTM E648 Flame Retardant Test , 120mm Flooring Radiant Heat Flux Fire Testing Equipment
  • ASTM E648 Flame Retardant Test , 120mm Flooring Radiant Heat Flux Fire Testing Equipment
  • ASTM E648 Flame Retardant Test , 120mm Flooring Radiant Heat Flux Fire Testing Equipment
  • ASTM E648 Flame Retardant Test , 120mm Flooring Radiant Heat Flux Fire Testing Equipment
  • ASTM E648 Flame Retardant Test , 120mm Flooring Radiant Heat Flux Fire Testing Equipment
ASTM E648 Flame Retardant Test , 120mm Flooring Radiant Heat Flux Fire Testing Equipment
Product Details:
Place of Origin: China
Brand Name: YUYANG
Certification: CE
Model Number: YYF008
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Price: $2000-$3000
Packaging Details: Wooden Box
Delivery Time: 7-30 Days
Payment Terms: T/T
Contact Now
Detailed Product Description
Product Name: Flooring Radiant Heat Flux Fire Testing Equipment Heat Flux Measurement Range: (0-15) Kw / M2
Heat Flux Meter Accuracy: ± 0.2Kw / M2 Exhaust Capacity: (39-85) M3 / Min
Flame Height: 60 ~ 120mm Adjustable Power Supply: AC 220V,50HZ
High Light:

ASTM E648 flame retardant test

,

120mm flame retardant test

,

Heat Flux fire testing equipment

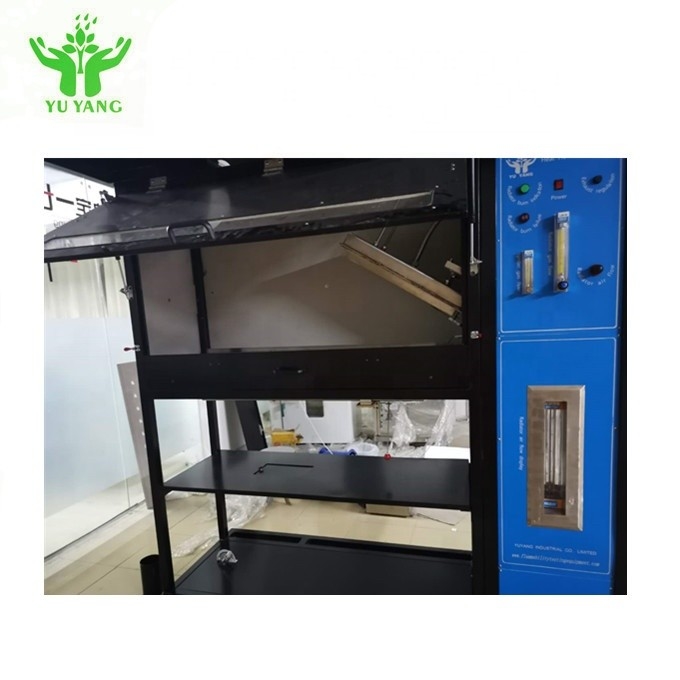

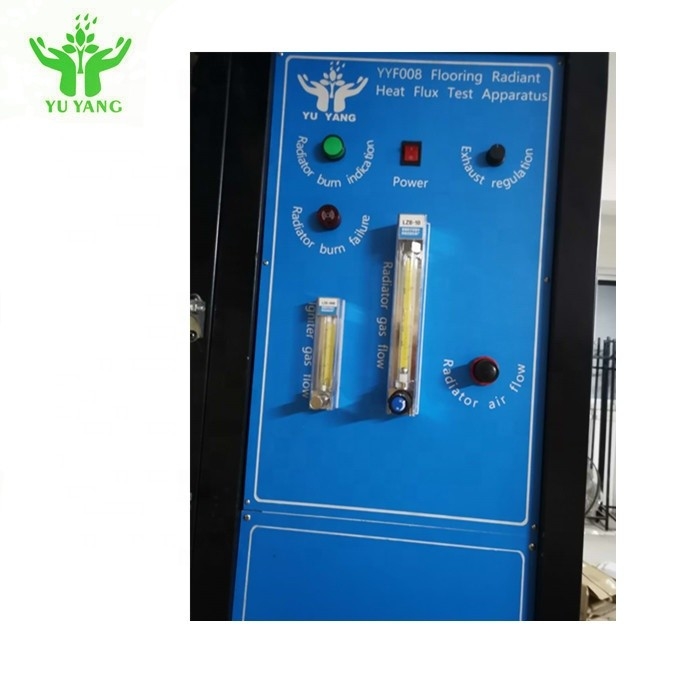

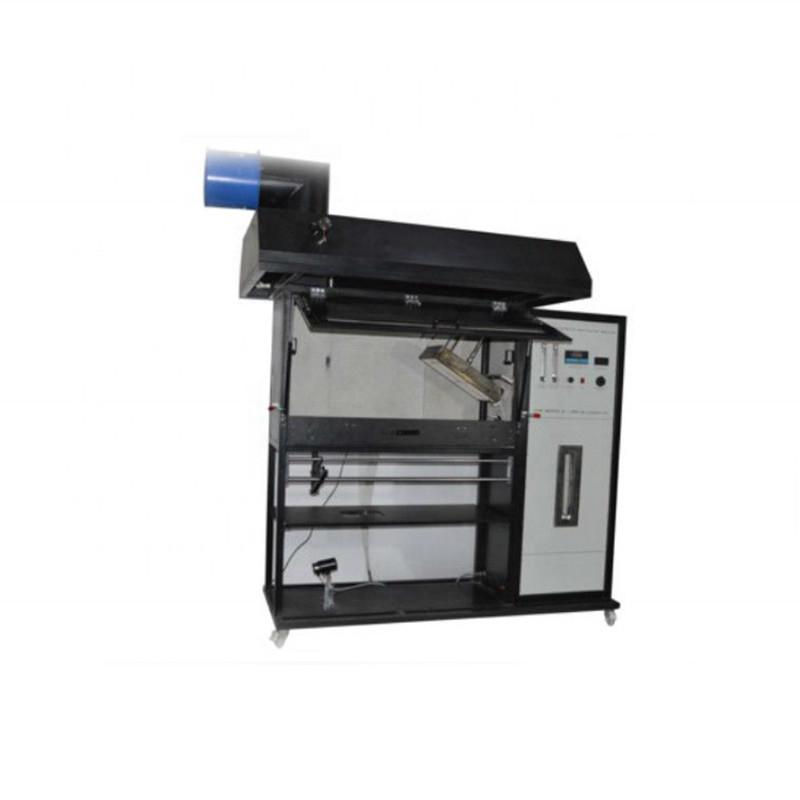

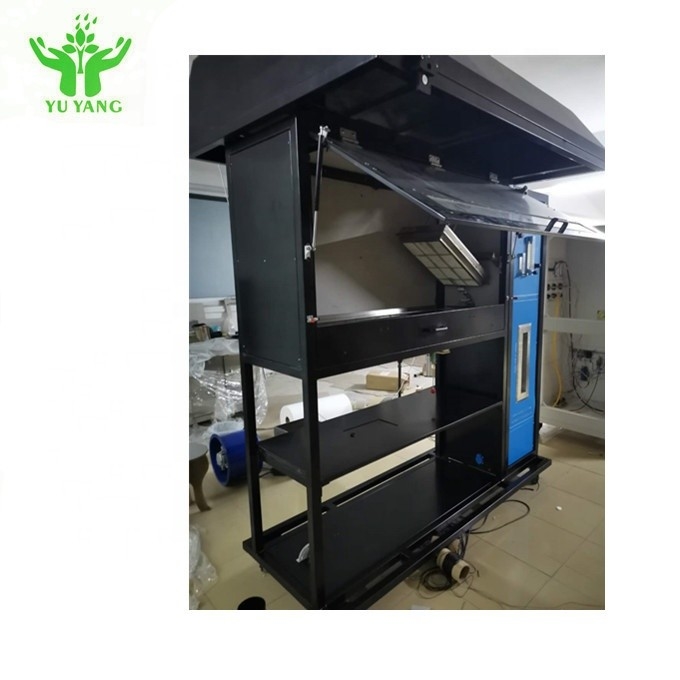

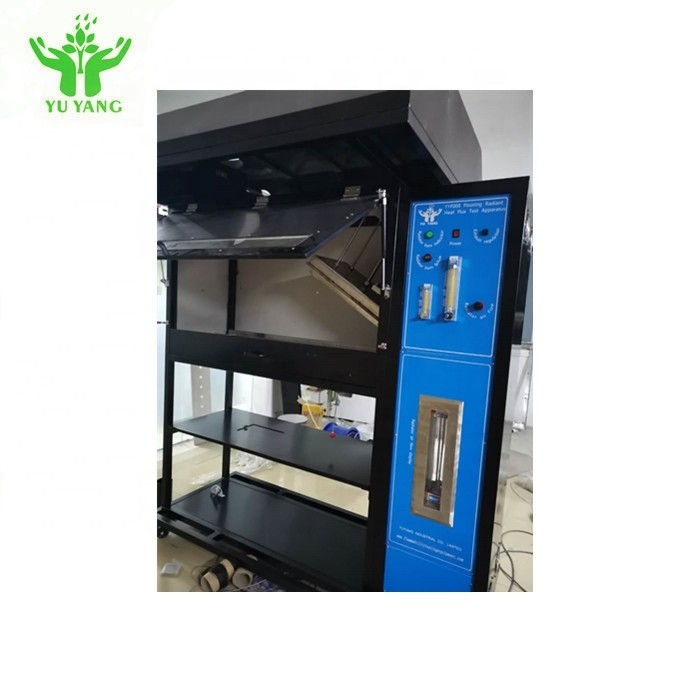

ASTM E648 ISO9239-1 Flooring Radiant Heat Flux Fire Testing Equipment



Description:

This test method is used to measure the critical radiant flux of horizontally-mounted floor covering systems exposed to a flaming ignition source in a graded radiant heat environment, within a test chamber. It can also be used to measure this same critical radiant flux for exposed attic floor cellulose insulation.Suitable for all kinds of flooring materials. Such as: textile carpets, soft wood, wood, rubber and plastic flooring and floor boards spray material. The apparatus can be reacted combustion performance flooring including the use of a substrate, backing material, backing material, or flooring materials other changes are likely to affect the test results, which is used to test and describe under controlled conditions in the laboratory, shop combustion characteristics to the material paired heat of reaction to fire.

Standard:


GB / T11785 "flooring combustion performance measurement - a radiant heat source”
ISO9239-1:2002 “flooring combustion performance Part 1-the combustion performance is determined with radiant heat resource”
ASTM E648:Standard Test Method for Critical Radiant Flux of Floor-covering Systems Using a Radiant Heat
ASTM E970:Standard Test Method for Critical Radiant Flux of Exposed Attic Floor Insulation Using a Radiant Heat Energy Source
NFPA 253:Standard Test Method for Critical Radiant Flux of Floor Covering Systems Using a Radiant Heat Energy Source

Specification:

1. Power supply:AC 220V,50HZ;
2. Total power:2KW;
3. Timer: timing accuracy < 1s/h;
4. Heat flux measurement range: (0-15) Kw / m2;
5. Heat flux meter accuracy: ± 0.2Kw / m2;
6. Heat flux meter accuracy: <± 3%;
7. Thermal radiation temperature measurement range: 400-600 ℃, accuracy ± 0.5 ℃;
8. Blackbody temperature error: ± 5 ℃;
9. Exhaust speed: (2.5 ± 0.2) m / s;
10. Exhaust capacity: (39-85) m3 / min;
11. Porous refractory radiant panel size: 300mm × 450mm, about 900 ℃ high temperature capability;
12. Thermocouple: K diameter stainless steel sheathed thermocouple of 3.2mm;
13. Heat flux distribution requirements: at 200mm : (9.1 ± 0.4) KW / m2;
at 400mm : (5.0 ± 0.4) KW / m2;
at 600mm : (2.4 ± 0.2) KW / m2;
14. Combustion gases: propane (Customer);
15. Combustion gas flow rate: (0.026 ± 0.002) L / S;
16. Combustion burner: outer diameter ¢ 10mm inner diameter ¢ 6mm, burner tube hit 35 ¢ 0.7mm hole;
17. Flame height: 60 ~ 120mm adjustable;
18. Ignition system: high-voltage electronic ignition;
19. Powerful exhaust system: This machine is equipped with a powerful exhaust fan, when the test is completed, the system will start the exhaust fan exhaust outside.



Timer: timing accuracy < 1s/h
Heat flux measurement range: (0-15) Kw / m2
Heat flux meter accuracy: ± 0.2Kw / m2
Heat flux meter accuracy: <± 3%
Blackbody temperature error: ± 5 ℃
Exhaust speed: (2.5 ± 0.2) m / s



ASTM E648 Flame Retardant Test , 120mm Flooring Radiant Heat Flux Fire Testing Equipment 0
