| Place of Origin: | China |
| Brand Name: | YUYANG |
| Certification: | CE |
| Model Number: | YYF011 |
| Minimum Order Quantity: | 1PCS |
|---|---|
| Price: | $4500 |
| Packaging Details: | Wooden Box |
| Delivery Time: | 7-30 Days |
| Payment Terms: | T/T |
| Product Name: | Smoke Density Test Apparatus | Smoke Density Measurement Range: | 0 ~ 100% |
|---|---|---|---|
| Smoke Density Measurement Accuracy: | ±3% | Receive The Lens Focal Length: | 60 ~ 65 Mm |
| Main Burner Work Pressure: | 276 Kpa (adjustable) | Auxiliary Combustion Chamber Pressure: | 138 Kpa (adjustable) |
| Using Power: | 0.5 KW | ||
| High Light: | 0.5KW Flammability Testing Equipment,Smoke Flammability Testing Equipment,Decomposition smoke density test apparatus |
||

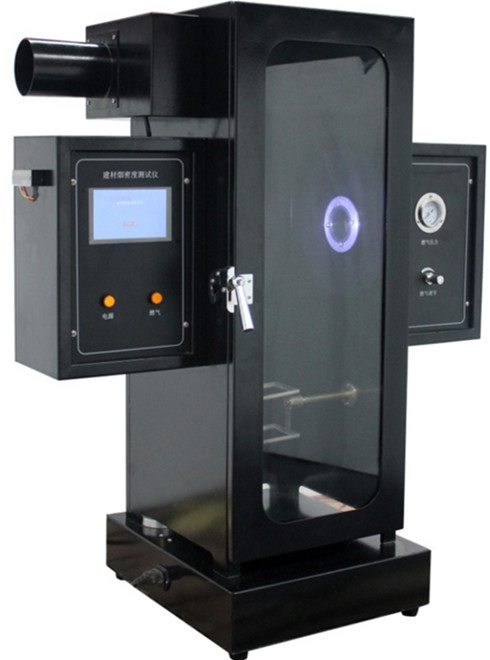

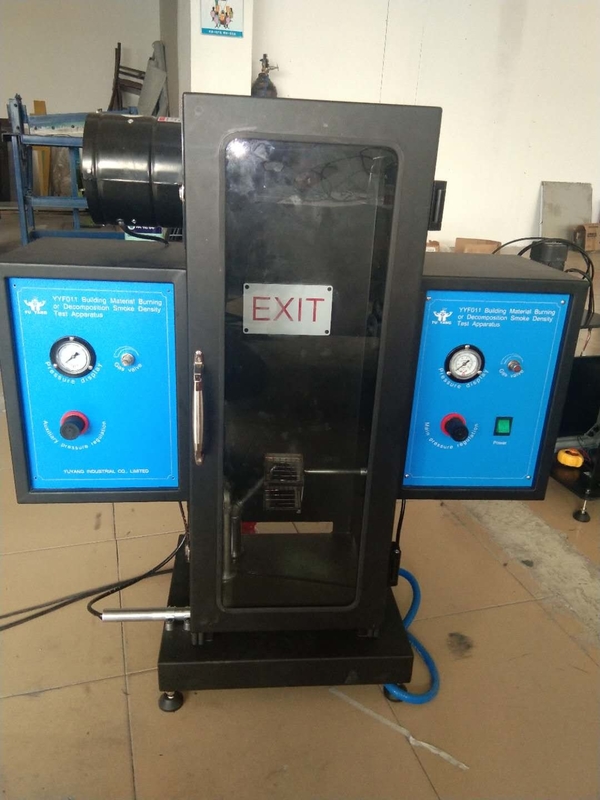

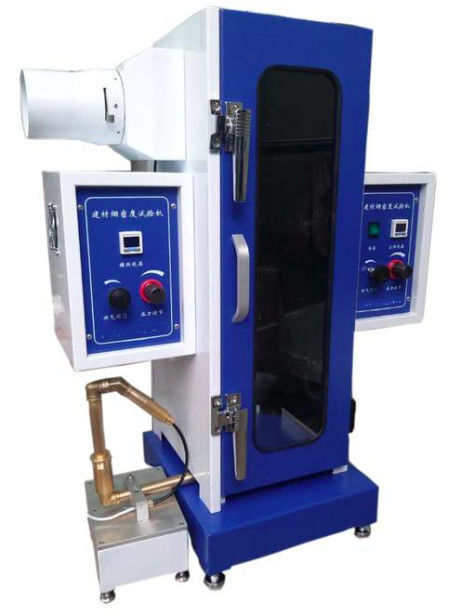

Micro-computer Plastic Burning or Decomposition Smoke Density Test Apparatus
Application:
The test apparatus is used for measuring the somke-producing characteristic of plastics under controlled
condition of combustion or decomposition, and also can be used for other building materials.
Standards:
ASTM D 2843,DIN 4102,GB/T 8627
Specification:
1. Gas source: 95% propane gas or higher purity, or the same purity of gas(owned);
2. Photometric system: a light source for the light bulb 15 w, working voltage of 6 v.
3. Smoke density measurement range: 0 ~ 100%;
4. Smoke density measurement accuracy: ±3%;
5. Receive the lens focal length: 60 ~ 65 mm;
6. Main burner work pressure: 276 kpa (adjustable);
7. Auxiliary combustion chamber pressure: 138 kpa (adjustable);
8. Supply voltage: AC220V±10%,50Hz;
9. Using power: 0.5 KW.
10. Combustion box dimension: L300*W300*H790(mm);
11. Equipment overall dimensions: (800 * 500 * 500) mm;
12. Combustion box adopts 304 steel plate, thickness of 1.2 MM;
