220V Bunched Cables Vertical Testing Equipment , IEC 60332-3 Flammability Test In Textile

Name: 220V Bunched Cables Vertical Testing Equipment , IEC 60332-3 Flammability Test In Textile
Brand: YUYANG
SKU: YYF019
Price: 15 USD
Availability: InStock
Rating: 4.5 (196 reviews)

Product Details:

Place of Origin:	China
Brand Name:	YUYANG
Model Number:	YYF019

Payment & Shipping Terms:

Minimum Order Quantity:	1PCS
Price:	$15,000 - $20,000
Packaging Details:	Wooden Box
Delivery Time:	7-30 Days
Payment Terms:	T/T

Contact Now

Detailed Product Description

Gas Burner:	257mm * 4.5mm	Anemometer Accuracy:	0.1m / S
Air Flow:	(5000 ± 500) L / Min	Console Size:	600 (W) * 750 (D) * 1,600 (H) Mm
Power:	AC 220V, 50 / 60hz, 15A	Weight:	1,500kg
High Light:	Bunched Cables vertical testing equipment , 220V vertical testing equipment , IEC 60332-3 flammability test in textile

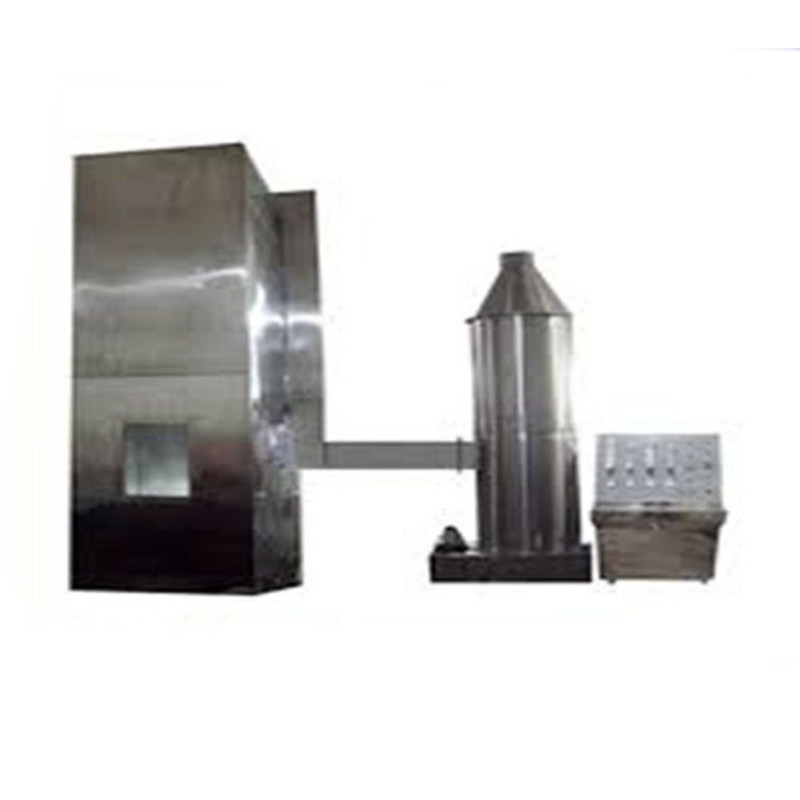

IEC 60332-3 Vertical Flammability Tester For Burning Behaviour Of Bunched Cables

Introduction:

Bunched Cable Vertical Flame Spread Tester is a series conforming to IEC 60332-3-10 (Category A~D) standards. The test measures the expansion of vertical flame to the electronically or optically vertical cable or wire using the standard ignition source while supplying a certain amount of air to a chamber of a defined volume.

Additionally, if bunched cable vertical flame spread testers burner is adjusted by 20 degrees angle, it can be measure under IEEE 383(IEEE 1202) standard. Also, if Heat Release Facility is attached, it can measure fire dynamics value as H.R.R (Heat Release Rate), S.P.R (Smoke Production Rate) and so on.

Standards:

* IEC 60332-3-10:2000

* IEC 60332-3-21~25:2000

Features:

* Test chamber has the dimension of 1,000±100(W) *2,000±100(D) * 4,000±100(H) mm.

* The bottom surface of the test chamber is higher than the ground while the rear side is supplemented with insulated material to insulate it from heat.At the lower section of the test chamber, there is a 800±20(W)*400±10(D) sized hole at the 150±10mm position from the front side of the chamber to supply the air.

* There is a 300±30(W)*1,000±100(D) sized exhaust hole at the rear corner of the top section of the test chamber to allow

emission of the smoke during the test.

* A flame trap is installed at the front side of the burner of the vertical flame spread tester to prevent backfire by propane to ensure the utmost safety.

* Unlike the conventional IEC60332-3 equipment, the vertical flame spread tester records all control and test conditions with the computer to add user friendliness.

* If stop the excessive combustion test due to Water Spray device installed for extinguish.

* The program on the requirement on standard and 70,000Btu/h can be program.

* Wide stainless steel ladder dimensions: 500(W) *3, 500(H) mm.

* Standard stainless steel ladder dimensions: 800(W) *3, 500(H).

* Two sets of standard propane burner and venturi mixtures.

* Follow the standard category can program for select a test.

Installation requirements of Vertical Flame Tester for Burning Behaviour of Bunched Cables

Electrical	110V AC 60Hz ,230V AC 50Hz, 5A
Ambient Temperature	Operating 10°C to 35°C
Size	1120 mm (W) 2200 mm (D) 5070 mm (H)
Weight	500KG
Gas	air and propane
