| Place of Origin: | China |
| Brand Name: | YUYANG |
| Certification: | Other |
| Model Number: | YYF023 |
| Minimum Order Quantity: | 1PCS |
|---|---|
| Price: | $1800 |
| Packaging Details: | Wooden Box |
| Delivery Time: | 7-30 Days |
| Payment Terms: | T/T |
| Volume: | 0.05m3 | Flow Range: | 100 ~ 1000 Ml/Min |
|---|---|---|---|
| Timer Precision (resolution): | 0.1 S | Test Temperature: | 800 ± 30 ℃ |
| Temperature Stability Time: | < 3 Min (800 ± 30) ℃ | Sample: | 300 Mm (length) X 50 Mm (width) |
| Dimension: | 610mm(width)x350(deep)x650(high) | ||
| High Light: | Gypsum Board lab testing equipment,100Ml/Min lab testing equipment,1000Ml/Min flame test apparatus |
||

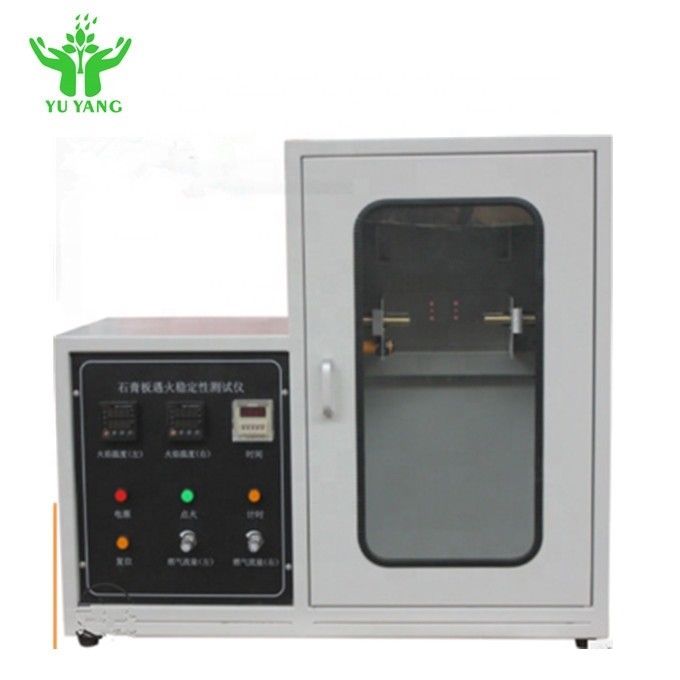

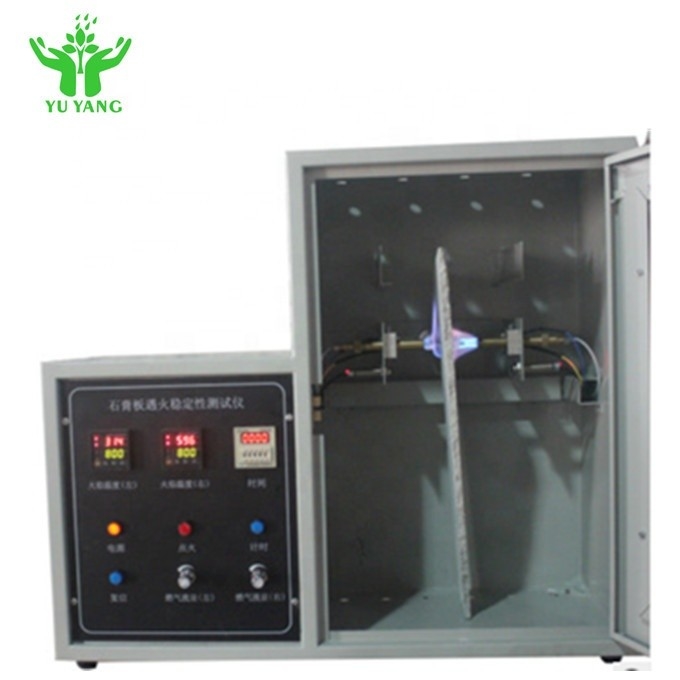

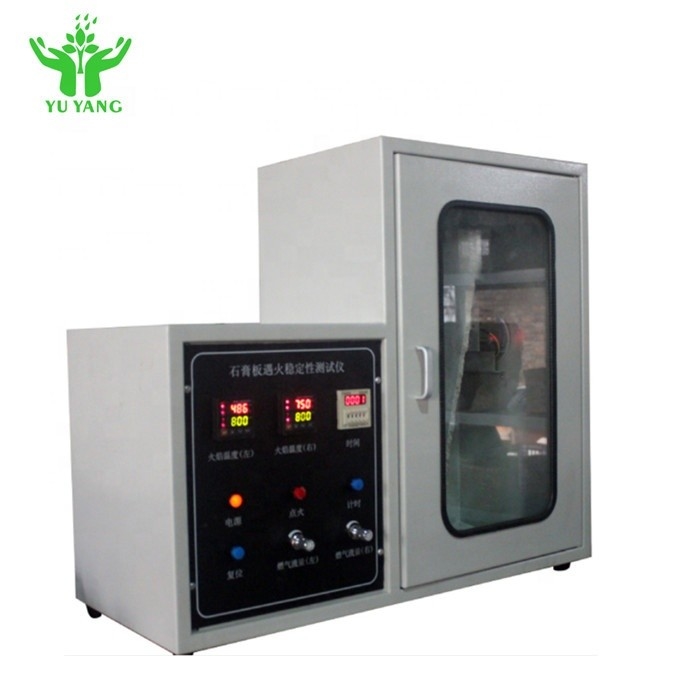

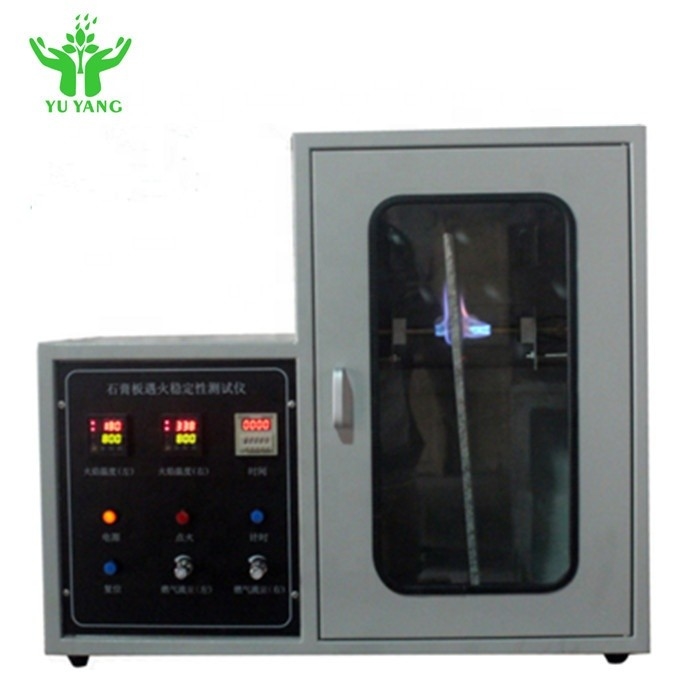

Gypsum Board In Burning Stability Tester Electronic Flammability Testing Equipment
Application:
Determine the stability of gypsum plasterboard subject to flame, the flame is generated from two dia.
40mm burner with dia. 2.5mm nozzle, the temperature of flame is up to 900oC.
Standards:
GB/T 9775-2008, ISO 6308.
Specification:
Tester is composed of test part and control part adopts the integrated design, test case and important parts
adopt stainless steel, corrosion resistance of smoke,gas. A high degree of automation control system,
1. With functions of automatic ignition, temperature and time digital display, observation records use
convenient, stable and reliable.
2. Power supply: AC220V ± 10% 50hz (can decide other power supply specifications), 180W.
3. Test flame of air by gas or oil liquefied gas (conditional proposal chooses good temperament of gas).
4. Double burner, for Φ9.5mm+/-0.5mm,inner diameter is about 100mm long, with air conditioning
holes. Convenient adjustment, flame length from 20mm to 100mm.
