Place of Origin:
China
Brand Name:
YUYANG
Certification:
CE
Model Number:
YYF040

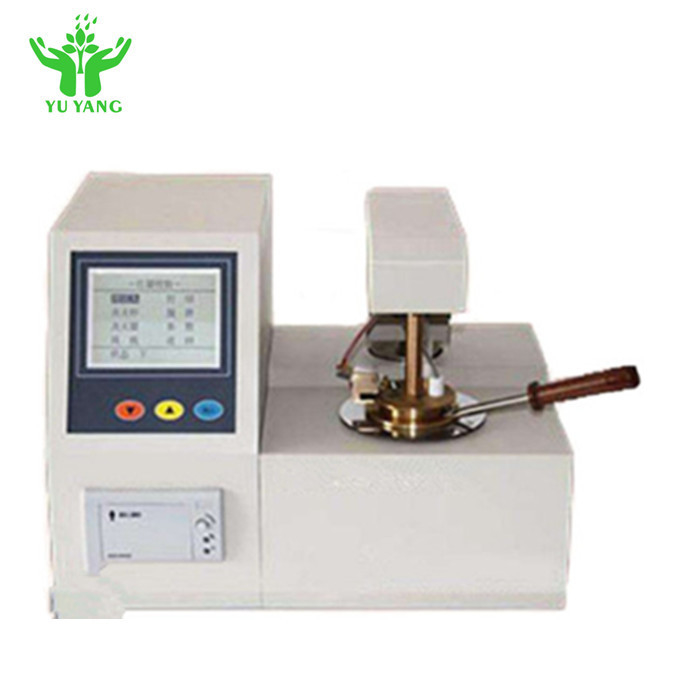

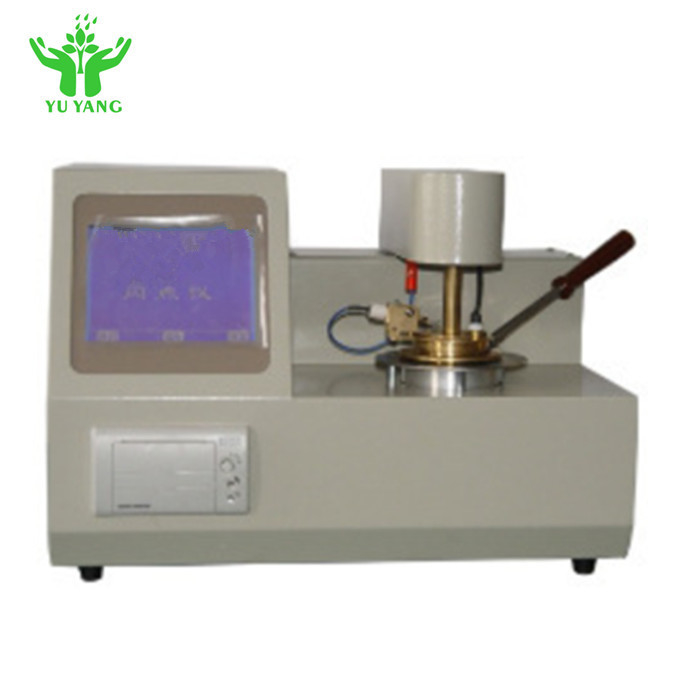

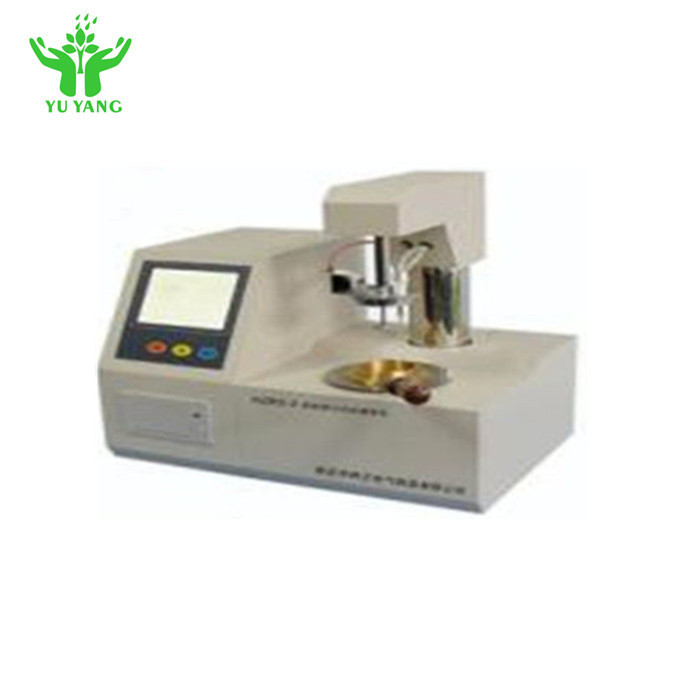

Automatically Petroleum Products Closed Flash Point Fire Testing Equipment
Description:
The flash point of a volatile material is the lowest temperature at which it can vaporize to form an
ignitable mixture in air. Measuring a flash point requires an ignition source. At the flash point, the vapor
may cease to burn when the ignition source is removed.
This automatically closed flash point tester, used to measure open and closed flash point of petroleum
products. Adopt foreign advanced technology, accord with national standard, such as the United States,
the European Union standards. Widely used in railway, aviation, electric power, oil industry and
scientific research departments, etc.
Standards:
ASTM D93, GB/T 261, ISO2719
Specifications:
1. Range: indoor temperature—400℃
2. Resolution: 0.1℃
3. Accuracy: 0.5%
4. Temperature Probe: Platinum resistance (PT100)
5. Flash Fire sensors: ion detection
6. Power: < 500W
7. Rate of Temperature Increase: conform to the standards such as GB, the United States, the European
Union
8. Ambient temperature: 10-40 ℃
9. Relative humidity: <85%
10. Supply voltage: AC220V ± 10%
11. Dimension: host: 190*260*285 (mm) furnace: 280*260*285(mm)
12. Weight: 18kg
