Name: ASTM D1230 45 Degree Flammability Tester , YYF043 Flammability Testing Equipment
Brand: DONGGUAN YUYANG INSTRUMENT CO., LTD
SKU: YYF043
Price: 1800 USD
Availability: InStock

Home > products > Flammability Testing Equipment >

ASTM D1230 45 Degree Flammability Tester , YYF043 Flammability Testing Equipment

ASTM D1230 45 degree flammability tester

YYF043 45 degree flammability tester

45degree flammability testing equipment

Place of Origin:

China

Brand Name:

YUYANG

Model Number:

YYF043

Request A Quote

Product Details

Product Name:

45 Degree Flammability Tester

Rack Angle:

45°

Flame Spread Time Setting Range:

0.01s-99.99s

The Surface Ignition Time Of Sample Is:

1.0s±0.05s

Ignition Time:

1s Or Set It Set Arbitrary

Sample Holder:

Upper Plate Slotted 38mm*152mm

Sample Size:

50mm*150mm

Highlight:

ASTM D1230 45 degree flammability tester

YYF043 45 degree flammability tester

45degree flammability testing equipment

Payment & Shipping Terms

Minimum Order Quantity

1PCS

Price

$1800

Packaging Details

Wooden Box

Delivery Time

7-30 Days

Payment Terms

T/T

Flat Bed Heat Press Transfer Printing Machine Clamshell Heat Press Machine

Get Best Price

Industrial Thermoforming Vacuum Machine For Food Plastic Packaging

Get Best Price

Manual Small Plastic Vacuum Thermoforming Machine For Fast Food Container Tray

Get Best Price

Acoustic Test Instrument Noise Testing Instrument Measurement Sound Level Meter

Get Best Price

+86-13825729807

markting@yuyangtest.com

86-769-26622869

Contact Now

Product Description

45 Degree Flammability Testing Equipment and 45 Degrees Textiles Flame Testing Machine

Description:

Touch screen control textile 45 ° Flammability Testing Equipment is based on the specifications stipulated in the national standard 14645-2014 and developed, applicable to conform to the standard of all kinds of textiles under controlled laboratory conditions, with 45 ° inclined placed sample surface under the action of the flame combustion performance test and evaluation.

Principle:

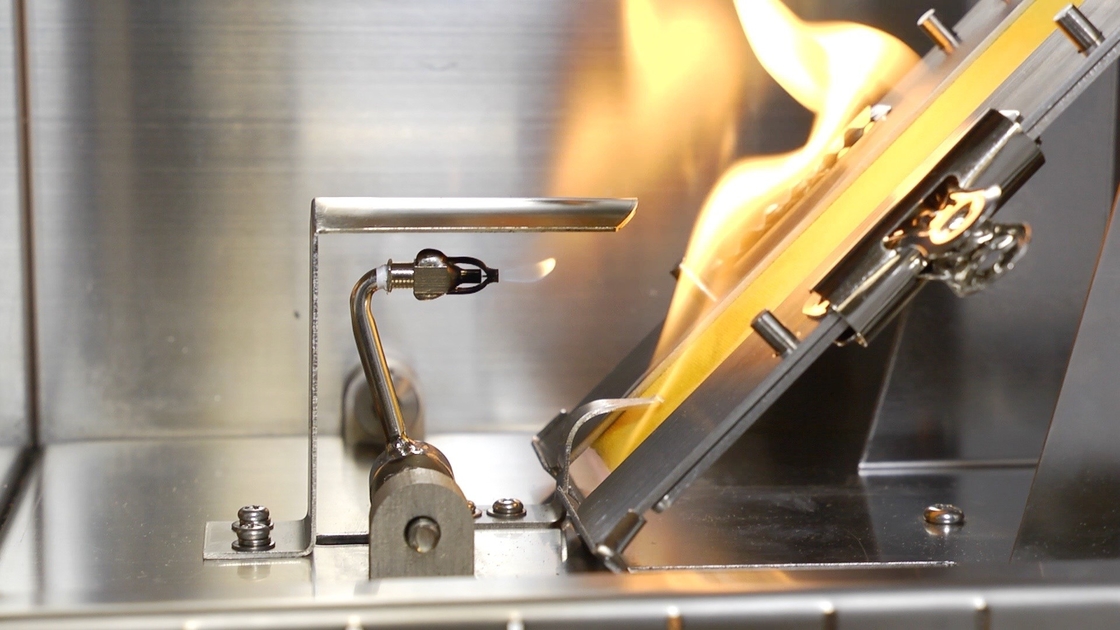

Under the specified conditions, the sample is placed at an angle of 45°, the sample is ignited for 1 s, and the time required for the sample to burn upward by a certain distance is used as a measure for assessing the degree of burning of the textile. Fabrics with surface piles, the ignition or melting of the base fabric as an additional indicator of the severity of the combustion, but need to be noted.

Standard:

16 CFR Part 1610 , ASTM D1230,FTMS 191-5908, CALIF TB 117,GB/T 14644

Parameter:

Time Display	0-99.9S
Test box	37cm22cm35cm, top 12 vents with a diameter of 12.7mm
Resolving Capability	0.1S
Ignition time	1s or set it Set arbitrary
Dimensions	402554cm
Power	AC 220V / 50Hz / 2A

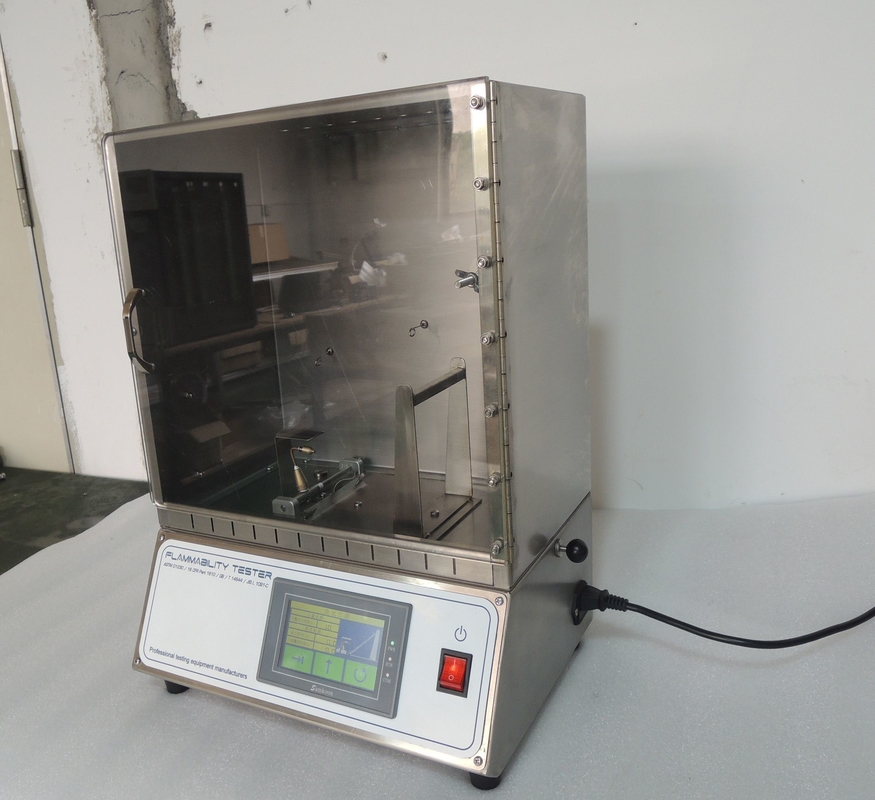

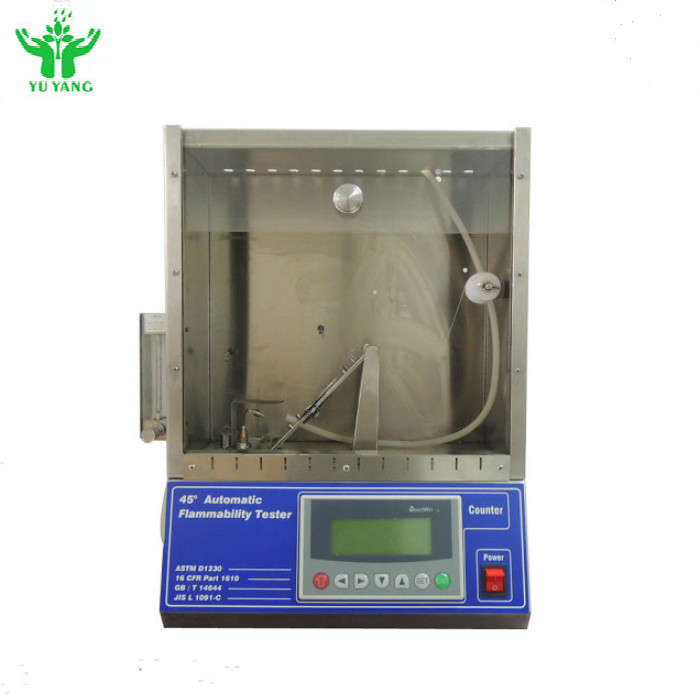

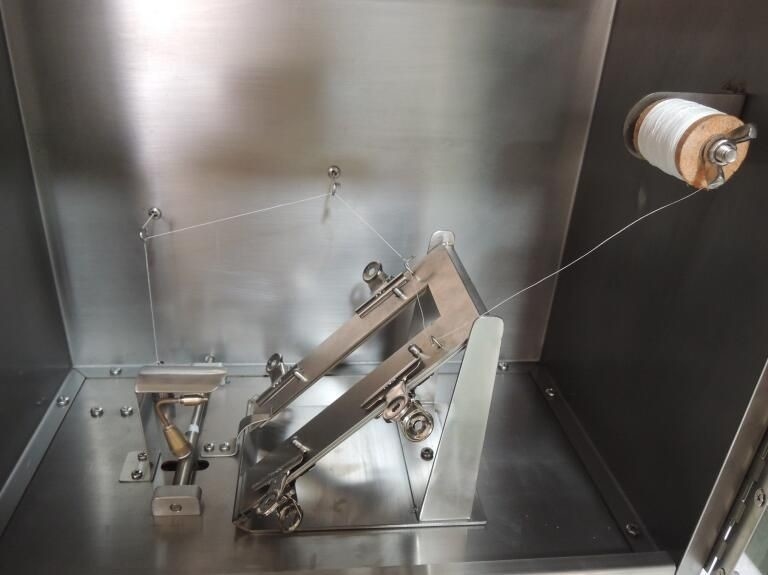

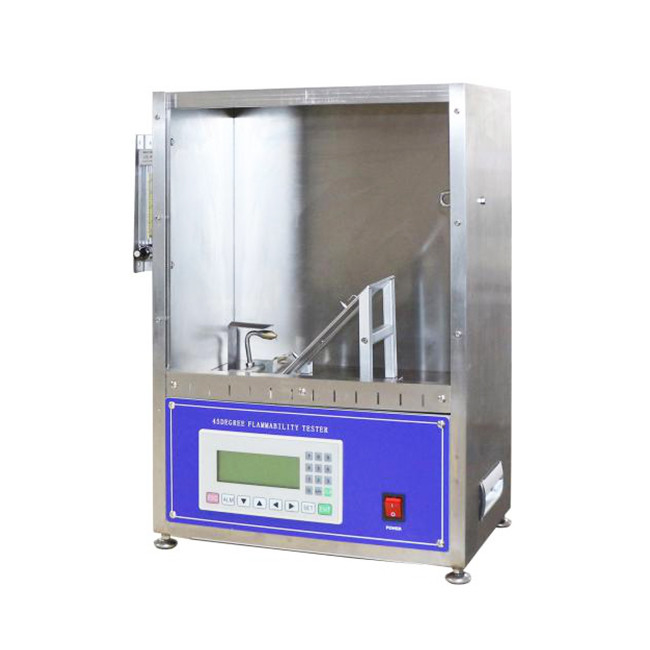

ASTM D1230 45 Degree Flammability Tester , YYF043 Flammability Testing Equipment 0
