| Place of Origin: | China |
| Brand Name: | YUYANG |
| Certification: | CE |
| Model Number: | YYF044 |
| Minimum Order Quantity: | 1PCS |
|---|---|
| Price: | $2600 |
| Packaging Details: | Wooden Box |
| Delivery Time: | 7-30 Days |
| Payment Terms: | T/T |
| Burner Diameter: | 11.0mm Or 9.5mm | Burner Angle: | 90 Degree Or 25 Degree |
|---|---|---|---|
| Flame Altitude: | 1.5 Inch | 1.5 Inch: | 12 S Or Others |
| Dimension: | 625*390*880mm (L*W*H) | Weight: | 45 Kg |
| High Light: | 25d flammability test for fabric,16 CFR 1615 cotton fabric burn test,ASTM 6413 cotton fabric burn test |
||
16 CFR 1615 1616 ASTM 6413 Flammability Tester Vertical And Horizontal Burning Test Machine
Description:

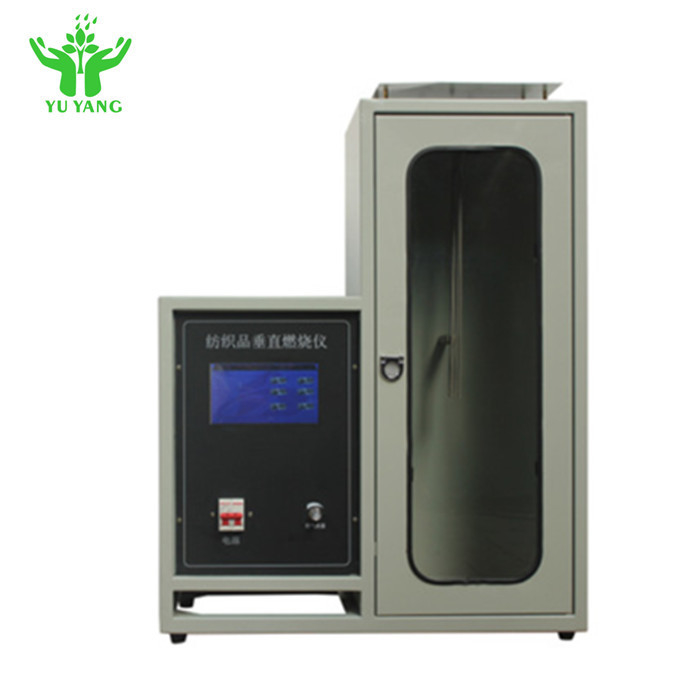

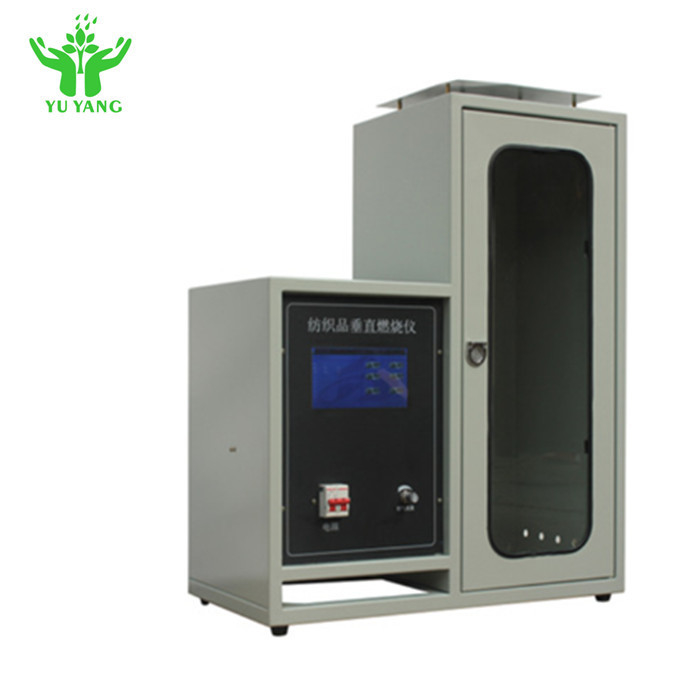

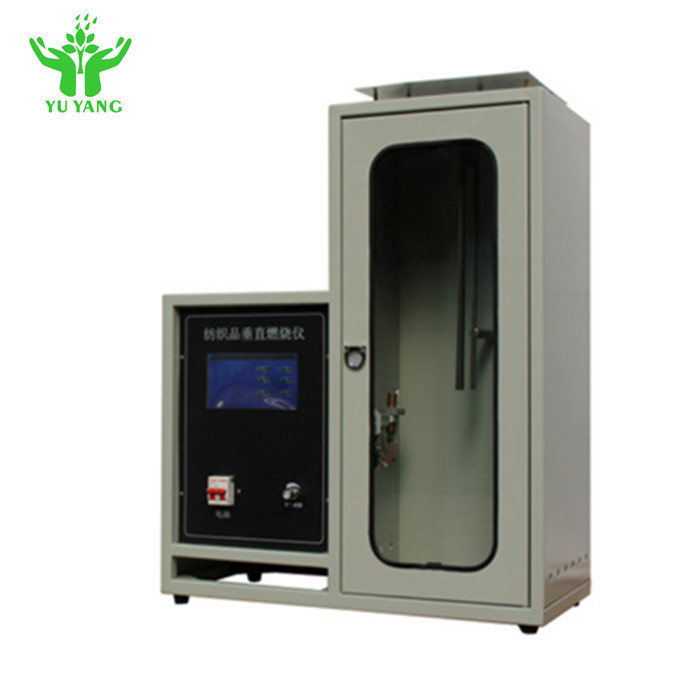

Vertical Flammability Chamber for measuring the vertical flame spread for childrens sleepwear, fabrics,other textile materials or resilient filling materials used in upholstered furniture. Comprises a draft free stainless steel cabinet with observation window and back wall painted black for easy test viewing.Specimen holders, burner and associated hardware are dependent on the test standard and must be specified. Separate enclosure for manual gas controls is located away from the flame chamber for operator convenience.
The instrument is mainly composed of a burning test box and a control panel. A specimen is positioned vertically above a controlled flame and exposed for a specified period of time. The flame then is removed,and afterflame time and afterglow time are measured.The instrument is used to test woven fabric, knitted fabrics, coated fabric and such kind of fabric.Specimen holders, burner and associated hardware are dependent on the test standard and must be specified. Separate enclosure for manual gas controls is located away from the flame chamber for operator convenience.
Technical Parameters:
Burner diameter: 11.0mm or 9.5mm
Burner angle: 90 Degree/25 Degree
Flame altitude:1.5 inch
Burning time:12 s or others
Burning gases: butane
Weight:45 kg
Dimension: 625×390×880mm (L×W×H)
Power: AC220V/50Hz, 2A
Standards: 16 CFR 1615 ,1616, ASTM6413,CALIF TB-117(TECHNICAL BULLETIN 117)SECTION
A-Part I Resilient Cellular Materials
Net weight: 45KG, Gross weight: 58KG
Plywood box size: 74*46*106cm
