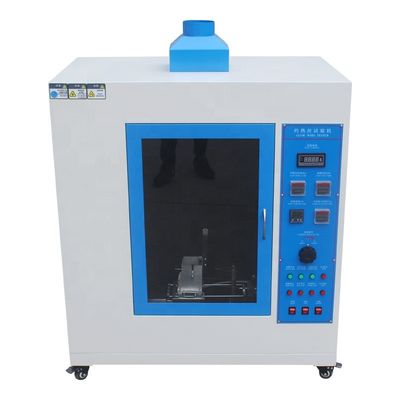

IEC60695 Flammability Glow Wire Test Apparatus 0.5m3 Studio Volume

Name: IEC60695 Flammability Glow Wire Test Apparatus 0.5m3 Studio Volume
Brand: YUYANG
SKU: YYF052
Price: 1500 USD
Availability: InStock
Rating: 4.9 (114 reviews)

Product Details:

Place of Origin:	China
Brand Name:	YUYANG
Certification:	CE
Model Number:	YYF052

Payment & Shipping Terms:

Minimum Order Quantity:	1PCS
Price:	$1500
Packaging Details:	Wooden Box
Delivery Time:	7-30 Days
Payment Terms:	T/T

Contact Now

Detailed Product Description

The Glow-wire Temperature:	550 ~ 1000C	Test Time:	30s±0.1s
Test Speed:	10mm/s~25mm/s	Wooden Board:	12g /m 2 ~ 30g /m 2
Studio Volume:	≥0.5 M3
High Light:	IEC60695 glow wire test apparatus , Flammability glow wire test apparatus , 0.5m3 Glow Wire Tester

IEC60695 Glow Wire Tester Glowing Wire Test Chamber Flammability Testing Equipment

Description:

1. Glow wire tester Accord with IEC60695-2-10, UL 746A, GB/T5169.10, GB4706.1

2. Glow wire tester Using electricity heating regulation material (Ni80 / Cr20) of resistance wire (Φ 4 mm Ni-Cr alloy wire) to

0°C~ 1000°C in 1 min, then with 1.0 N vertically burn it 30s,measure the fire risk by product light-off or hold burning time,

also test light-off degree, light-off temperature (GWIT), flammability and combustible index (GWFI).

3. Lab glow wire tester Suitable for lighting equipment, low voltage electric appliance, electrician instruments and material flammability testing, such as electrical and electronic products.

Features:

Glow wire tester is in accordance with IEC60695-2-10, UL 746A, GB/T5169.10, GB4706.1

Thermocouple: model K Type imported insulating thermal stabilized sheathed thermocouple, heat resistance 1100°c

Glow wire temperature: 500°c-960°c (presentable data display), temperature fluctuation<3°c

Test pressure of specimen: 1.0N±0.1N

Max thermal depth: 7mm±0.5mm(adjustable)

Movement velocity of specimen: 10mm/s-25mm/s

Test time: 30s+0.1s(1-999.9s data display presentable)

Advantages:

Can meet different test methods and standards, GB, ISO, ASTM test methods setting freely.

LCD display touch screen all the test result, data and curve.

Wrapping connector driving system to make working more stably and more precision.

Microcomputer controlling, all keyboard operation.

Automatic judgment materials slide adhesive state and sample test results between quantitative discrete analysis.

Static friction coefficient and dynamic friction coefficient option freely, flexible test.

Can save 6 test results and data and display the curve. Also with query function.

Standards:

IEC60695-2-10, UL 746A, GB/T5169.10, GB4706.1

Specification:

The glow-wire temperature: 550 ~ 1000C adjustable, when 500 ~ 750C ±2C, when 750 ~ 1000C ± 5C

Test time: 30s±0.1s

Layer: thickness 10mm

Wooden board :12g /m2 ～30g /m 2 wrapping tissue, is positioned 200mm ± 5mm below test specimen.

Thermocouple: K type thermocouples Φ0.5mm

The glow-wire: Φ4 mm±0.04mm Ni/Cr(80/120) nickel chromium wire.

Hot depth: 7mm ± 0.5mm (1N ± 0.2N maintaining the pressure of hot into the sample)

Test speed: 10mm/s~25mm/s.

The testing process: test procedures automatic control, independent ventilation

The reference standard: GB/T5169.10, IEC60695, UL746A

Studio Volume: ≥0.5 m3

The device outside dimensions: 1150mm wide × 650mm deep × 1300mm high, exhaust vent 100mm

Power supply: 1kVA 220V 50/60HZ

Size:120*70*145CM

Weight:150KG

The glow-wire temperature:	550 ~ 1000C
Test time:	30s±0.1s
Wooden board :	12g /m 2 ～ 30g /m 2
Thermocouple: K type thermocouples Φ0.5mm	K type thermocouples Φ0.5mm
Test speed:	10mm/s~25mm/s.
Studio Volume:	≥0.5 m3
